Technical data ............................17 About these instructions The AMPEROS DC you have purchased is a high-quality Blum product designed to enhance the aes- thetics and functionality of your furniture. Please take into account the following information to ensure you can enjoy the full advantages of AMPEROS DC and, above all, use the product safely: ➢... -
Page 3: Safety Warning Signs And Signal Words
This marking indicates that the appliance is intended for in- door use only. Intended use AMPEROS DC is used to illuminate furniture drawers and has a USB port for supplying electrical energy inside drawers. AMPEROS DC may only be used under the following conditions: –... -
Page 4: Safety
Installation WARNING Danger of fatal injury due to electric shock! – The AMPEROS DC power supply unit must be connected to an outlet with an earth connection. – Neither the AMPEROS DC power supply unit nor any cabling may come into contact with moving parts. -
Page 5: Operation
AMPEROS DC Operating instructions Operation WARNING Danger of fatal injury due to electric shock! – This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabili- ties or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the appliance and understand the hazards involved. - Page 6 AMPEROS DC power supply unit, the power transmitter or box/top light. Use a dry, silky soft cloth for cleaning. – Do not cover the AMPEROS DC power supply unit with hand towels or other items.
- Page 7 Julius Blum GmbH. – Only qualified persons may install and replace Blum components or change the position of the AMPEROS DC power supply unit and cabling. – Never open an AMPEROS DC power supply unit or any other AMPEROS DC component.
-
Page 8: Reference Diagram

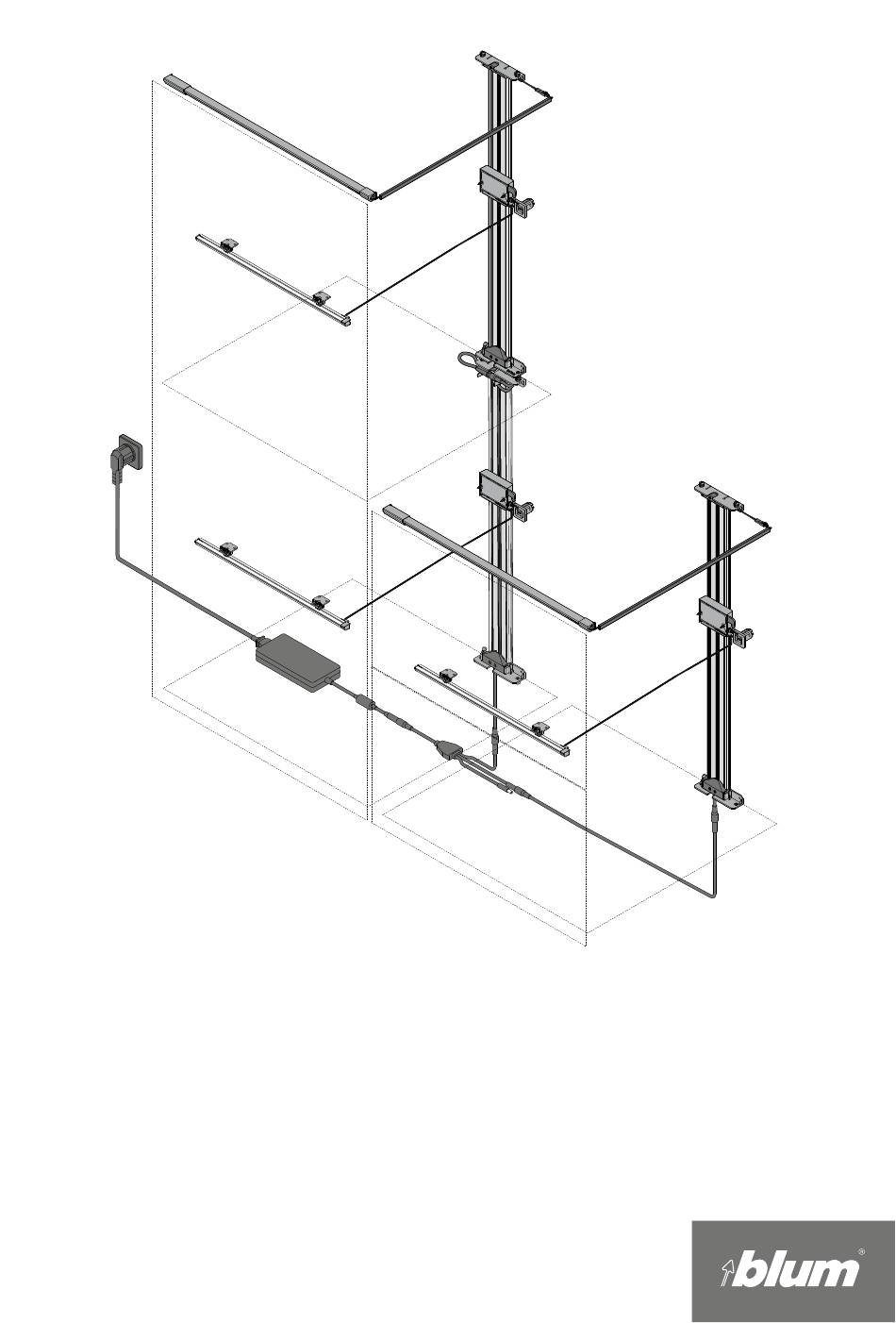

AMPEROS DC Operating instructions Reference diagram Power profile Centre power profile connector set Power profile attachments AMPEROS DC power supply unit and flex Bottom power profile connector AMPEROS DC three-way splitter cable Top power profile connector AMPEROS DC distribution cable... - Page 9 AMPEROS DC Operating instructions Top light with mounting plate Box light Cable duct USB Type-C port Power transmitter Cable holder www.blum.com/amperosdcapp3...
-
Page 10: Main Functions
AMPEROS DC Operating instructions Main functions Connect CONNECT is used to connect your smartphone to a virtual space. You will need to disconnect any existing connections prior to doing this. Then select CONNECT in the app and open and close a drawer of the virtual space you want to connect to. -
Page 11: Usb Port
AMPEROS DC Operating instructions USB port The USB port provides electrical energy for third-party devices. NOTICE ➢ The USB port is only active when the drawer is closed. Customisation Spaces and furniture that have been put into operation can be customised as Requirements soon as you have connected to the space. -
Page 12: Orientation Mode
AMPEROS DC Operating instructions Orientation mode If cabinets have inner drawers and a door, this is the mode in which the lights in all drawers switch on when the cabinet door is opened. When a drawer is opened, the light in the drawer changes to the colour and brightness set in Description of the function standard mode. -
Page 13: Ambient Mode
Ambient mode allows the user to adjust the colour and brightness of the lighting Description of the function (top lights and box lights) in the drawers via the AMPEROS DC app to achieve the desired ambience when the cabinet door (e.g. a glass door) is closed. -
Page 14: Simplified Eu Declaration Of Conformity
Julius Blum GmbH hereby declares that the light types ESA.xxxxB and ESA.xxxxT conform to the Directive 2014/30/EU. Julius Blum GmbH hereby declares that the power supply unit type ESI.180N conforms to the Direc- tive 2014/35/EU and Directive 2014/30/EU. The complete text of the EU declaration of conformity is available at the following Internet address: www.blum.com/compliance... -
Page 15: Replacing The Lights / Removal
AMPEROS DC Operating instructions Replacing the lights / removal... - Page 16 AMPEROS DC Operating instructions...
-
Page 17: Technical Data
AMPEROS DC Operating instructions Technical data AMPEROS DC power supply unit Protection class: ..............Class II (low voltage; reinforced insulation) Protection category: ............IP20 (no protection against ingress of water) Operating mode: ....................S1 (continuous duty) Input voltage: 100-240 V AC / 50-60 Hz Input current: .......................... - Page 18 AMPEROS DC Operating instructions Top light Protection class: ................Class III (safety extra-low voltage) Protection category: ............IP20 (no protection against ingress of water) Operating mode: ....................S1 (continuous duty) Nominal voltage: ........................24 V DC Nominal current: ..........................0.5 A Power consumption in standby mode: ..................
- Page 19 AMPEROS DC Operating instructions Box light Protection class: ................Class III (safety extra-low voltage) Protection category: ............IP20 (no protection against ingress of water) Operating mode: ....................S1 (continuous duty) Nominal voltage: ........................24 V DC Nominal current: ..........................0.5 A Environmental conditions: Transport/storage: ..........
- Page 20 Blum partners worldwide can be found at: www.blum.com/addresses Julius Blum GmbH 6973 Höchst, Austria Tel.: +43 5578 705-0 Fax: +43 5578 705-44 E-mail: info@blum.com www.blum.com...
