Cat. #7000
7000

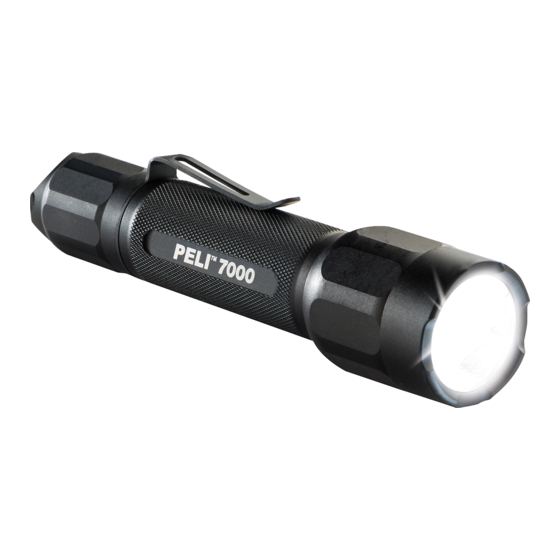

This compact torch produces an ultra bright light beam by using a LED powered by (2) two 3 volt CR123A lithium
batteries. The 7000 torch is designed for easy use with one hand operation and has a dual-switch mode for
constant-on and momentary-on. The 7000 torch body is made by high precision CNC machines from
aircraft-grade aluminum alloy for the most durable construction.
The 7000 torch is water resistant.

TO INSERT BATTERIES

1. Remove the tail cap by turning counter-clockwise.
2. Remove battery carrier.
3. Lightly press (with thumb) on carrier cap as indicated by three lines.
4. Install batteries in the direction as indicated on the carrier.
5. Replace the cap.
6. Install carrier in the light with the arrow on the carrier pointing towards the head.
7. Replace the tail cap onto the flashlight by turning clockwise until sealed.

OPERATION

To select a program, partially depress the button (momentary press, do not click) as indicated in the
table below and hold until the 7000 flashes in acknowledgment.
The light will flash to let you know that a new program has successfully been selected. The number
of flashes indicates the program number.
Program 1 (default) High > Strobe > Medium > Low
Program 2 High Only
Program 3 High > Medium > Low
Program 4 Low > Medium > High
To change the mode within a program, depress the button (momentary, do not click) once for each
step in the program. Presses need to be within .5 second.
Press the tail button to turn OFF.

TO ACCESS THE BATTERY STATUS FEATURE:

1. Press the switch halfway down so the light comes on (momentary- do not click) six times with
no more than .5 second between presses.
2. Hold the button down on the sixth press.
3. After two seconds, the light will flash indicating the battery power status:
• 4 flashes = 76%-100%
• 3 flashes = 51%-75%
• 2 flashes = 26%-50%
• 1 flash = <25%
GENERAL CARE & MAINTENANCE
1. Clean o-rings with a soft clean cloth to insure that sealing area is free of dirt that could
destroy the o-ring seal.
2. Apply a light coat of clear silicone grease on the o-rings occasionally if turning action
becomes too difficult.
3. Remove the tail cap and wipe the rear threads of the 7000 torch body and inside of the
tail cap with a soft clean cloth occasionally to avoid intermittent torch operation.
CAUTION
To prevent the 7000 torch coming on accidentally when the torch is stored, remove the batteries.
If the 7000 torch is turned on while it is in a container, the torch can overheat and damage the
torch or the material of the surrounding area.

SPECIFICATIONS

BULB: LED
BATTERY: (2) Two 3 volt CR-123A, DL-123A or other equivalent lithium batteries

O-RING MAINTENANCE

Check closely for cuts, scratches, or otherwise damaged o-ring or mating lens lip surface.
Remove any dirt or foreign matter from o-ring sealing surfaces. Keep threads, o-ring groove and
inside lip of lens lubricated with silicone grease. See Warranty information for replacement of o-ring.

Battery Safety Bulletin Lithium Batteries

Lithium batteries can explode, leak or cause burns if not handled properly. Please observe the
following as a guide:
1. Use only Panasonic™, Energizer™, Duracell™, or Sanyo™ batteries.
2. Do not mix new with old or with other battery types/brands.
3. Replace all batteries at the same time.
4. Do not open batteries.
5. Do not dispose of in fire.
6. Do not heat above 75 ° C.
7. Do not expose batteries to water.
8. Do not recharge.
9. Insert batteries correctly with regard to polarity (+ and -) marked on the battery and equipment.
Programa 1
( ) Alta intensidad > Intermitente > Intensidad media > Baja intensidad
predeterminado
Programa 2 Solo alta intensidad
Programa 3 Alta intensidad > Intensidad media > Baja intensidad
Programa 4 Baja intensidad > Intensidad media > Alta intensidad
Momentary
Confirmation
presses
flashes
8 *
10 **
12 ***
14 ****
Pulsaciones Destellos de
breves confirmación
8 *
10 **
12 ***
14 ****
