PELI 7000 Instruction Manual

Cat. #7000
7000
INSTRUCTION MANUAL

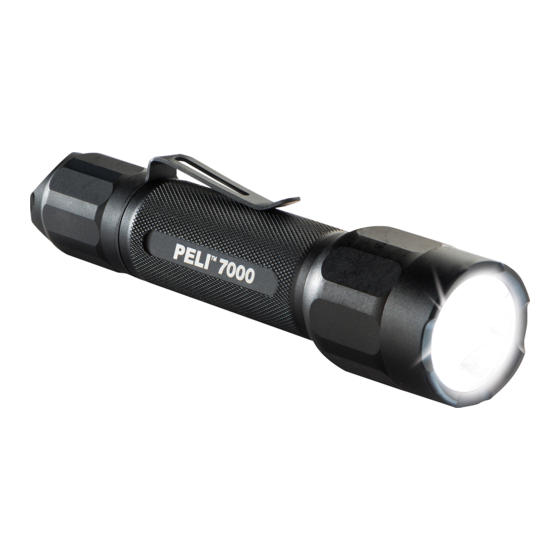

This compact torch produces an ultra bright light beam by using a LED powered by (2) two 3 volt CR123A
lithium batteries. The 7000 torch is designed for easy use with one hand operation and has a dual-switch
mode for constant-on and momentary-on. The 7000 torch body is made by high precision CNC machines
from aircraft-grade aluminum alloy for the most durable construction.
The 7000 torch is water resistant.

TO INSERT BATTERIES

1. Remove the tail cap by turning counter-clockwise.
2. Remove battery carrier.
3. Lightly press (with thumb) on carrier cap as indicated by three lines.
4. Install batteries in the direction as indicated on the carrier.
5. Replace the cap.
6. Install carrier in the light with the arrow on the carrier pointing towards the head.
7. Replace the tail cap onto the flashlight by turning clockwise until sealed.

OPERATION

To select a program, partially depress the button (momentary press, do not click) as indicated in the table
below and hold until the 7000 flashes in acknowledgment.
The light will flash to let you know that a new program has successfully been selected. The number of
flashes indicates the program number.
Program 1 (default)
Program 2
Program 3
Program 4
To change the mode within a program, depress the button (momentary, do not click) once for each step
in the program. Presses need to be within .5 second.
Press the tail button to turn OFF.

TO ACCESS THE BATTERY STATUS FEATURE:

1. Press the switch halfway down so the light comes on (momentary- do not click) six times with
no more than .5 second between presses.
2. Hold the button down on the sixth press.
3. After two seconds, the light will flash indicating the battery power status:
• 4 flashes = 76%-100%
• 3 flashes = 51%-75%
• 2 flashes = 26%-50%
• 1 flash = <25%
GENERAL CARE & MAINTENANCE
1. Clean o-rings with a soft clean cloth to insure that sealing area is free of dirt that could destroy the o-ring seal.
2. Apply a light coat of clear silicone grease on the o-rings occasionally if turning action becomes too difficult.
3. Remove the tail cap and wipe the rear threads of the 7000 torch body and inside of the tail cap with a soft clean
cloth occasionally to avoid intermittent torch operation.
CAUTION
To prevent the 7000 torch coming on accidentally when the torch is stored, remove the batteries.
If the 7000 torch is turned on while it is in a container, the torch can overheat and damage the
torch or the material of the surrounding area.
SPECIFICATIONS
BULB: LED
BATTERY:
(2) Two 3 volt CR-123A, DL-123A or other equivalent lithium batteries
O-RING MAINTENANCE
Check closely for cuts, scratches, or otherwise damaged o-ring or mating lens lip surface.
Remove any dirt or foreign matter from o-ring sealing surfaces. Keep threads, o-ring groove and inside lip of lens
lubricated with silicone grease. See Warranty information for replacement of o-ring.
Battery Safety Bulletin: Lithium Batteries
Lithium batteries can explode, leak or cause burns if not handled properly. Please observe the
following as a guide:
1. Use only Panasonic™, Energizer™, Duracell™, or Sanyo™ batteries.
2. Do not mix new with old or with other battery types/brands.
3. Replace all batteries at the same time.
4. Do not open batteries.
5. Do not dispose of in fire.
6. Do not heat above 75
7. Do not expose batteries to water.
8. Do not recharge.
9. Insert batteries correctly with regard to polarity (+ and -) marked on the battery and equipment.
TORCHES/HEADLAMPS
LIMITED LIFETIME* GUARANTEE
Peli Products, S.L.U. ("Peli") guarantees its torches and headlamps for a lifetime* against
breakage or defects in workmanship. This guarantee does not cover the lamp or batteries.
Peli will either repair or replace any defective product, at our sole option. All claims under this
guarantee, of any nature, are barred if the product has been altered, damaged or in any way
physically changed, or subjected to abuse, misuse, negligence or accident.
*Lifetime guarantee not applicable where prohibited by law.
For complete details, see: www.peli.com/peli-warranty
High > Strobe > Medium > Low
High Only
High > Medium > Low
Low > Medium > High
° C.
Momentary Confirmation
presses flashes
8
10
12
14
EN
*
**
***
****
FR
