I N S TA L L AT I O N
11

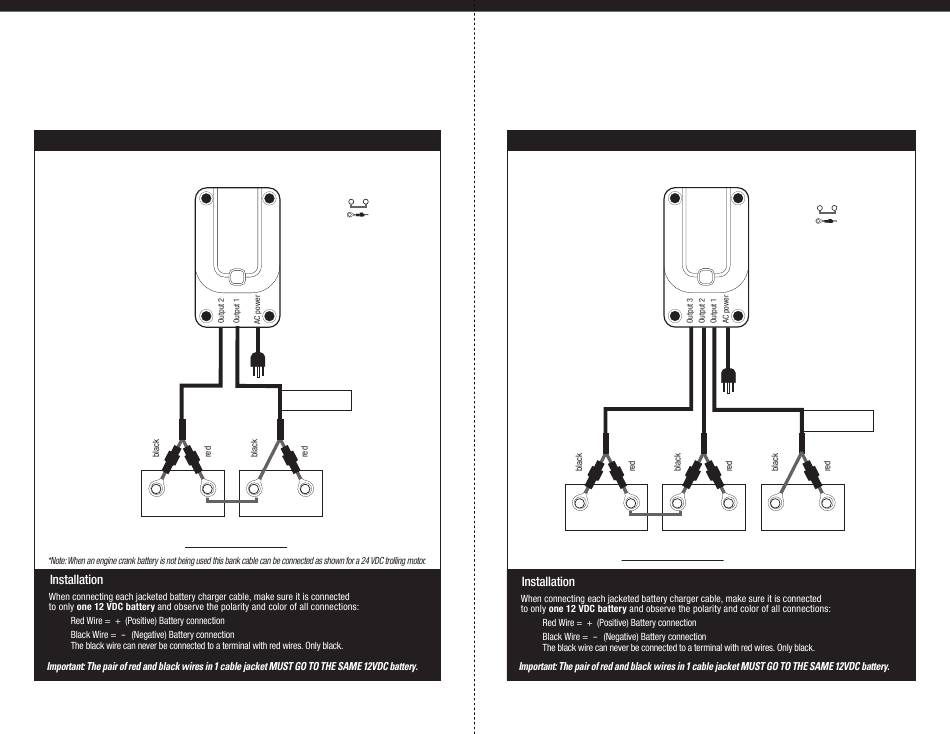

ProMar1 Wiring Diagrams
Dual Output Charger for 2 12V Batteries
Dedicated 24 VDC Trolling Motor Battery Configuration
with (2) 12 VDC Batteries Connected with a Series Jumper
Cable 2
_
Bat 2
+
Two 12 VDC Batteries connected with a series jumper
for a 24 VDC Trolling Motor
Note:
Indicates Jumper Series
Indicates Fuse
ProMar1
5/5
For Engine Battery use
Cable 1
this Bank Cable Only*
Top View
_
Bat 1
of Battery
+
ProMar1 Wiring Diagrams
Triple Output Charger for 3 12V Batteries
24 VDC Trolling Motor Battery Configuration with (2) 12 VDC Batteries Connected
with a Series Jumper Plus Dedicated 12 VDC Engine Start Battery
ProMar1
Cable 3
Cable 2
_ _
Bat 3
+
Two 12 VDC Batteries connected with a series
jumper for a 24 VDC Trolling Motor
I N S TA L L AT I O N
Note:
Indicates Jumper Series
Indicates Fuse
5/5/3
For Engine Battery use
Cable 1
this Bank Cable Only
Top View
_
Bat 2 Bat 1
of Battery
+ +
12 VDC Engine
Crank Battery
