ProMariner ProMar1 5 Owner's Manual And Installation Manual page 7

I N S TA L L AT I O N
9

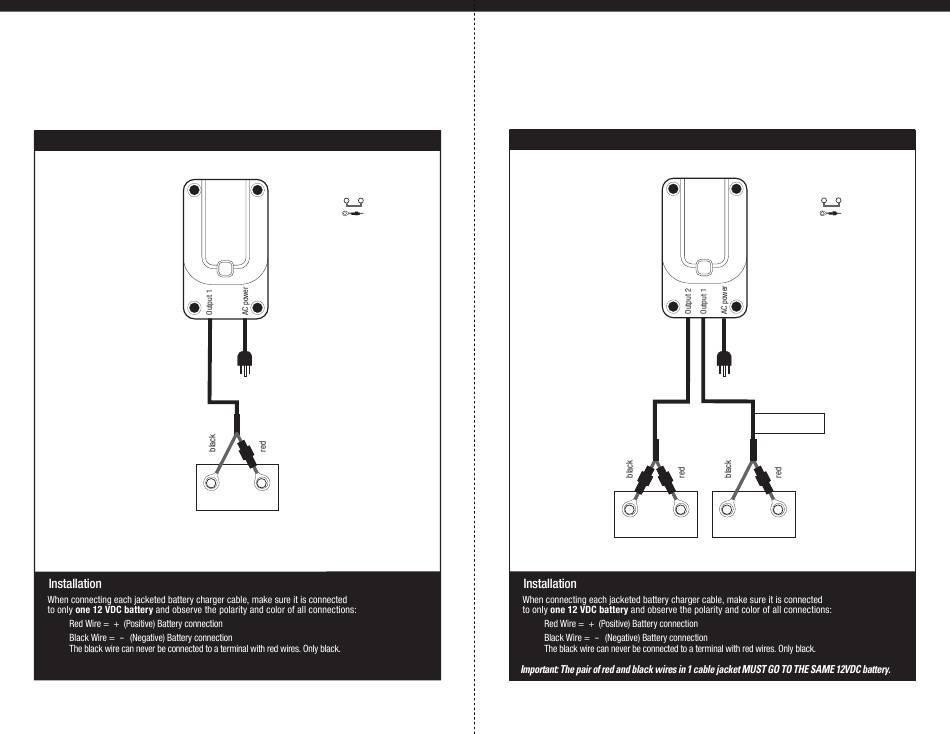

ProMar1 Wiring Diagrams
Single Output Charger for 1 12V Battery
Dedicated 12 VDC Trolling Motor or Engine Battery Configuration
ProMar1
_
Engine Crank or 12V Trolling Motor Battery
Note:
Indicates Jumper Series
Indicates Fuse
5
Cable 1
Top View
of Battery
Bat 1
+
ProMar1 Wiring Diagrams
Dual Output Charger for 2 12V Batteries
12 VDC Trolling Motor + Engine Crank Battery Configuration with (2) 12 VDC Batteries
ProMar1
Cable 2
_
Bat 2
+
12 VDC Trolling
Motor Battery
I N S TA L L AT I O N
Note:
Indicates Jumper Series
Indicates Fuse
5/3 &
5/5
For Engine Battery use
Cable 1
this Bank Cable Only
Top View
_
Bat 1
of Battery
+
12 VDC Engine
Crank Battery
10
