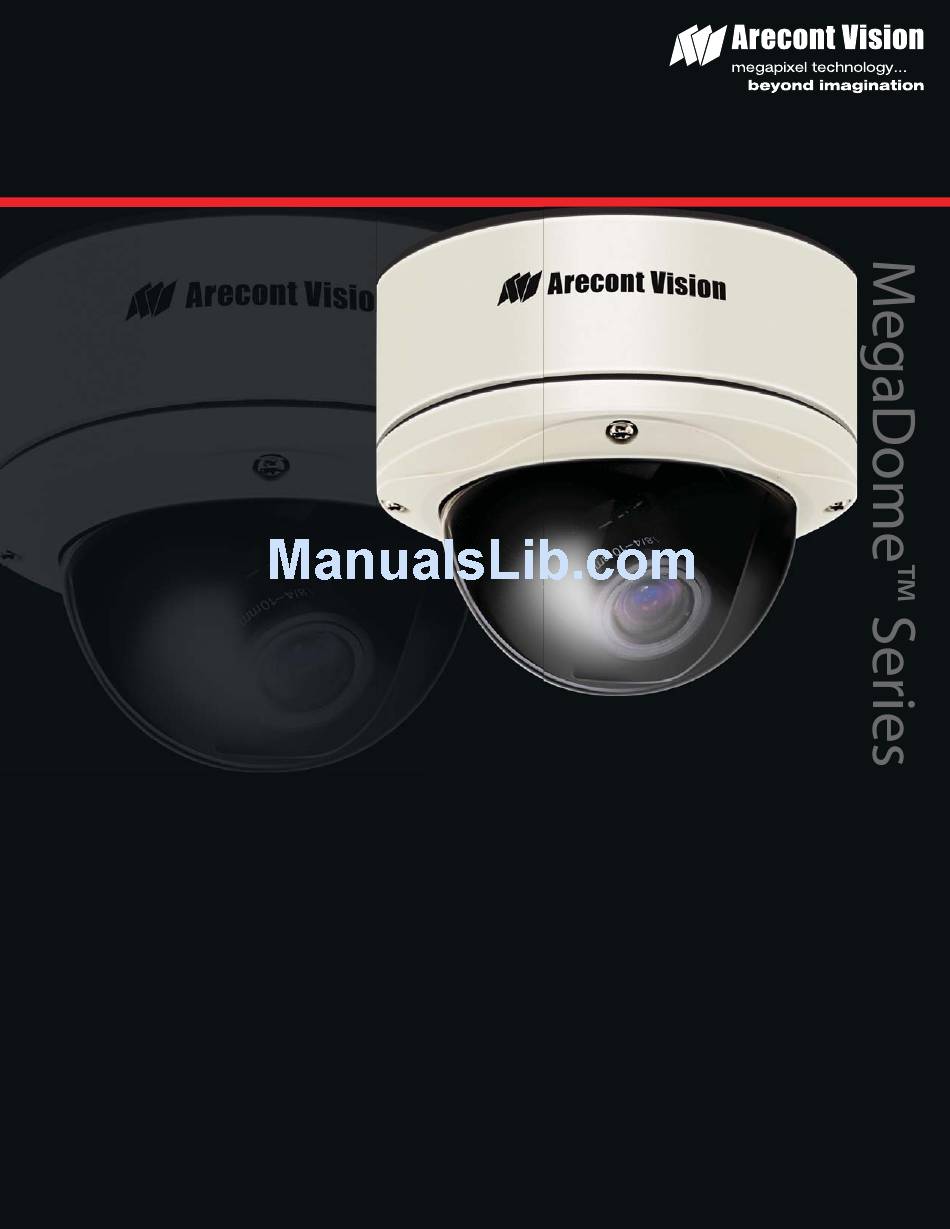

Megadome series 3 megapixel h.264 day/night ip camera
Hide thumbs Also See for MegaDome AV3155:

Advertisement

Quick Links

AV3155

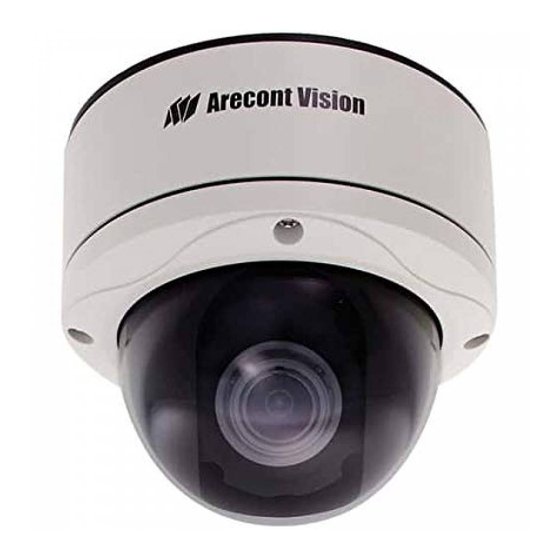

3 Megapixel H.264 IP MegaDome™ Camera
AV3155 (Color)
AV3155-16 (Color)
Arecont Vision Advantages:
All-in-one H.264 MegaDome™ Solution
• Integrated megapixel camera, IR corrected lens
(AVxx55: 4.5-10mm lens;
AVxx55-16: 8-16mm lens), and IP66 dome housing
• Vandal resistant aluminum chassis with 4" polycarbonate
dome bubble
• Easily adjustable 3-axis camera gimbal with 360° pan,
90° tilt and 360° z-axis
• Available in 1.3, 2, 3, and 5 MP sensor configurations with
color only or Day/Night versions
• Supports both H.264 and MJPEG at full resolutions and full frame rates
• Heater kit versions for cold climate environments
• Surface mount with optional pendant mount, wall mount, pole mount,
corner mount or electrical box adapter
• IP66 weatherproofing standard
H.264 (MPEG4 Part 10) Compression Standard
• Simultaneous support of both H.264 and MJPEG
• 10x average bandwidth and storage reduction over MJPEG
Multi-Streaming
• Up to 8 concurrent non-identical streams with different frame rates,
bit rates, resolutions and picture quality
Bit Rate Control
• Maintain desired bandwidth and storage size
Real Time Streaming Protocol (RTSP)
• Allows for compatibility with media players such as Apple QuickTime,
Windows Media Player, VLC Player, etc.
Superior Low Light Performance
• 1/2" CMOS Sensor
Unparalleled High Definition Resolution - 2048 x 1536
•Ten times the resolution of IP VGA or analog cameras
Fastest MegaPixel Image Rates
• Up to 15fps in 3 megapixel mode
Forensic Zooming
• Zoom live or after-event while recording full field of view in HD ...
replace PTZ devices
Reduced Overall System Cost
• Less cameras to install, less wiring, no external power (POE), less
NVR licensing fees
Full or 1/4 Resolution
• Can be used for either live viewing or archiving purposes
Other key features:
• Simultaneous full field of view and Region-of-Interest (ROI)
• Image cropping allows streaming of full density partial images
• On-camera motion detection
• Assembled 10W heater versions or separate heater module for retrofit
• Motorized IR Cut Filter (DN Version) and more
www.arecontvision.com
AV3155-1HK
AV3155DN (Day/Night)
AV3155-16HK
AV3155DN-16 (Day/Night)
avsales@arecontvision.com
AV3155DN-1HK
AV3155DN-16HK
The AV3155/3155-16 MegaDome™ series
network camera is part of Arecont Vision's
full line of H.264 megapixel cameras. This
fully compliant implementation of H.264
(MPEG 4, Part 10) provides full 2048 x 1536
megapixel resolution at full video frame rates
of 15fps. The MegaDome™ camera line
provides an all-in-one solution with integrated
megapixel camera, lens, and vandal resistant
dome enclosure. Using MegaVideo®
technology, these cameras offer bandwidth
and storage efficiency of up to 10X on
average over traditional megapixel
Learn more about our products at
+1.818.937.0700
counterparts.
www.arecontvision.com
877.CAMERA.8

Advertisement

loading
Need help?

Need help?

Do you have a question about the MegaDome AV3155 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arecont Vision MegaDome AV3155

  • Page 1 AV3155DN-1HK AV3155DN-16HK The AV3155/3155-16 MegaDome™ series network camera is part of Arecont Vision’s full line of H.264 megapixel cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides full 2048 x 1536 of 15fps. The MegaDome™ camera line dome enclosure.
  • Page 2 Model Numbers: AV3155 - Color AV3155-1HK - Color w/Heater AV3155DN - Day/Night AV3155DN-1HK - Day/Night w/Heater Imaging • 3 megapixel CMOS image sensor • 2048(H) x 1536(V) pixel array • 1/2” optical format • 3.2 μm pixel pitch • Bayer mosaic RGB filter •...
