- Page 1 UVM216 USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Table Of Contents
Thank you for purchasing a GOLDENSEA UV product. You have acquired a powerful and versatile device. We are confident that you will be satisfied with our excellent products and service. For your own safety, please read this user manual carefully before installing and operating the device. - Page 3 www.goldenseauv.com Voltage Input: AC100-240V~, 50/60Hz; Power: 230W; Product Size: 507x442x1488mm This UV lamp is only for commercial use in non-residential locations, such as in the hotels, schools, factories, theaters, gymnasiums, restaurants, offices, etc., it shall only be used by professional person. The warning sign as below shall be shown on the way to the fixture during operation.
-
Page 4: Manual Operation
www.goldenseauv.com 1. Manual Operation (control panel) 1) Close all the doors and windows. 2) Plug-in and power on: press the power switch <I/O> to <I>, the power indicator turns on green. 3) Select time setting <30 mins>, <60 mins> or <120 mins> by the Time Setting touch key, the touch key indicator light turns on. -
Page 5: Motion Sensor Operation(If The Lamp With Motion Sensor)
www.goldenseauv.com Start 3. Motion Sensor Operation (if the lamp with Motion Sensor) 1. Turn on the UV lamp, select the disinfection time and start, leave the room, after 2 minutes alarming (Di….Di…Di….), the UV lamps will switch on automatically, the motion sensor will be activated. -
Page 6: Installation Of Wheels
www.goldenseauv.com 2. To make it work again after auto power off, put the device back to the normal upright position, make sure the power plug is still well-connected to the power socket, re-start the operation again from the beginning. 5. Installation Of Wheels The 3 universal wheels of this device had been turned inwards and fixed at the center of the bottom when it was packed. -
Page 7: Notes
www.goldenseauv.com 1. Before moving the device, make sure the power cable is disconnected from power socket and the wheel brake is released. To release the brake, push the brake lever up with your foot. 2. To move the device, holding the handle and the power cable with your hand and move it to the desired place. -
Page 8: Warnings
www.goldenseauv.com 9. Warnings The UV-C wavelength is 253.7nm, the radiation intensity in 200mm distance is 2926.2 uw/cm² . Avertissement – RISQUE DE BLESSURES WARNING – RISK OF PERSONAL INJURY CORPORELLES THIS EQUIPMENT IS DESIGNED FOR CET ÉQUIPEMENT EST CONÇU POUR ÊTRE USE WITH GERMICIDAL LAMPS OR UV UTILISÉ... -

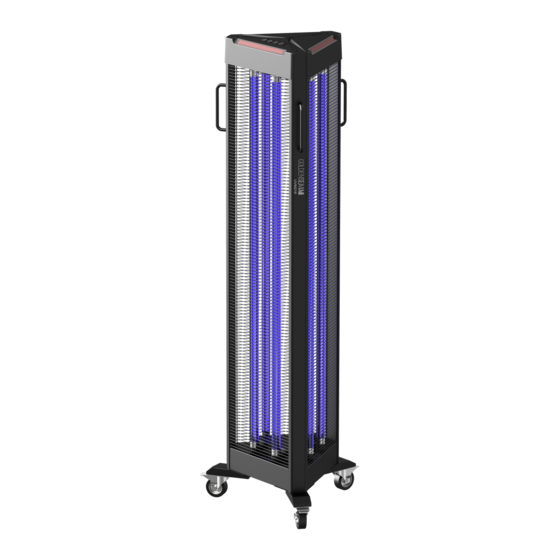

Page 9: Product Overview
www.goldenseauv.com 10. Product Overview 6） Power Cable 11）60 mins - touch key 1） Grid Opening Tabs 2） Handle 7） Universal Wheel 12）120 mins - touch key 8） Brake Lever 13）Start - touch key 3） Protective Grid 9） Indicator Lights 14）Power Indicator 4）... -
Page 10: Replacing The Uv Tube
www.goldenseauv.com 12. Replacing The UV Tube To maintain the sterilizing efficacy, the UV tube needs to be replaced after 9,000 hours of use. Steps: 1. Wait for UV tube to cool down (to avoid scalding) after switching off the device. 2. -
Page 11: Troubleshooting Tips
www.goldenseauv.com 13. Troubleshooting Tips 13.1 What to do if the device doesn’t work? 1. Ensure the device is plugged into a working wall socket. 2. Ensure the plug is wired correctly and terminal well-connected. 3. If you still have issues with the device, please contact your local dealer or our customer service for assistance. -
Page 12: Features
www.goldenseauv.com 14. Features Light Source • Lamp: TUV 36W SLV/6 T8 (PHILIPS) HNS 36W G13 (G36T8/OF) PURITEC UV-C Germicidal Low Pressure Lamp (OSRAM) • Extremely long Life: up to 9,000 H Features • Delayed start (3-min delayed start) • Motion sensor •... -
Page 13: Cleaning And Maintenance
www.goldenseauv.com Warning Sign Included UV Irradiance Meter Optional 15. Cleaning and Maintenance 1. To ensure the device remains in good condition and does not fail prematurely, regular maintenance, cleaning and checks are required. 2. For cleaning of the device, please use a lint-free cloth. 3.
