Task Force Tips YE-RF-RAD Series Instructions For Installation page 3

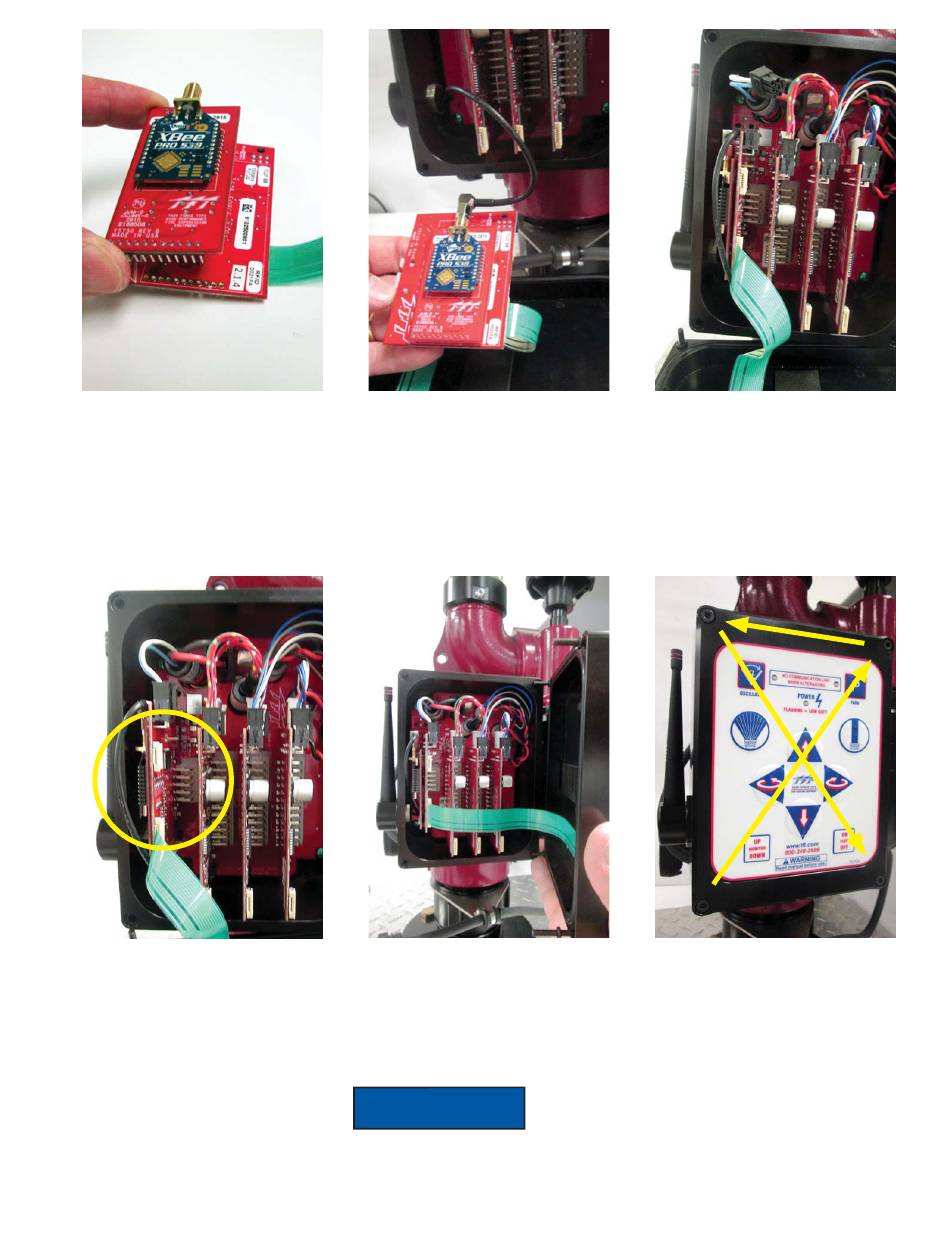

STEP 7:
Plug the radio board
communication board by aligning pin
holes and pushing fi rmly.
STEP 10:
Plug the connector with the blue &
white wires into the communication/
radio board.
Route antenna wire alongside the
board.
©Copyright Task Force Tips, Inc. 2007 - 2016
STEP 8:
to the Attach the antenna connector to the
radio board in the orientation shown.
NOTE: In some cases, a cable tie
may need to be cut to attach the
antenna.
STEP 11:
Replace the lid. Be sure to guide the
fl at cable across the motor boards.
NOTE: Do not pinch any wires
between the lid and box.
NOTICE
Ensure rubber O-ring seal for lid
is clean, undamaged, and properly
placed in the groove prior to
securing the lid.
STEP 9:
Reinstall the communication/radio
board into the monitor control box.
Press straight in to seat fi rmly.
STEP 12:
Tighten screws equally in a criss-
cross pattern.
3
3
4
1
LIY-410 July 10, 2016 Rev05
2
