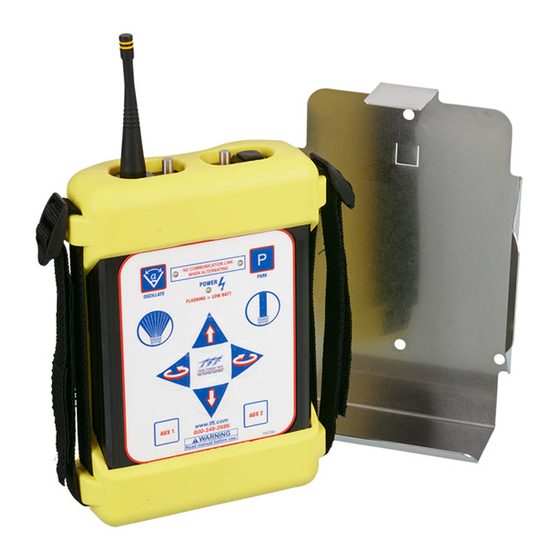

Task Force Tips YE-RF Series Instructions For Installation

®
TASK FORCE TIPS
FIRE FIGHTING EQUIPMENT

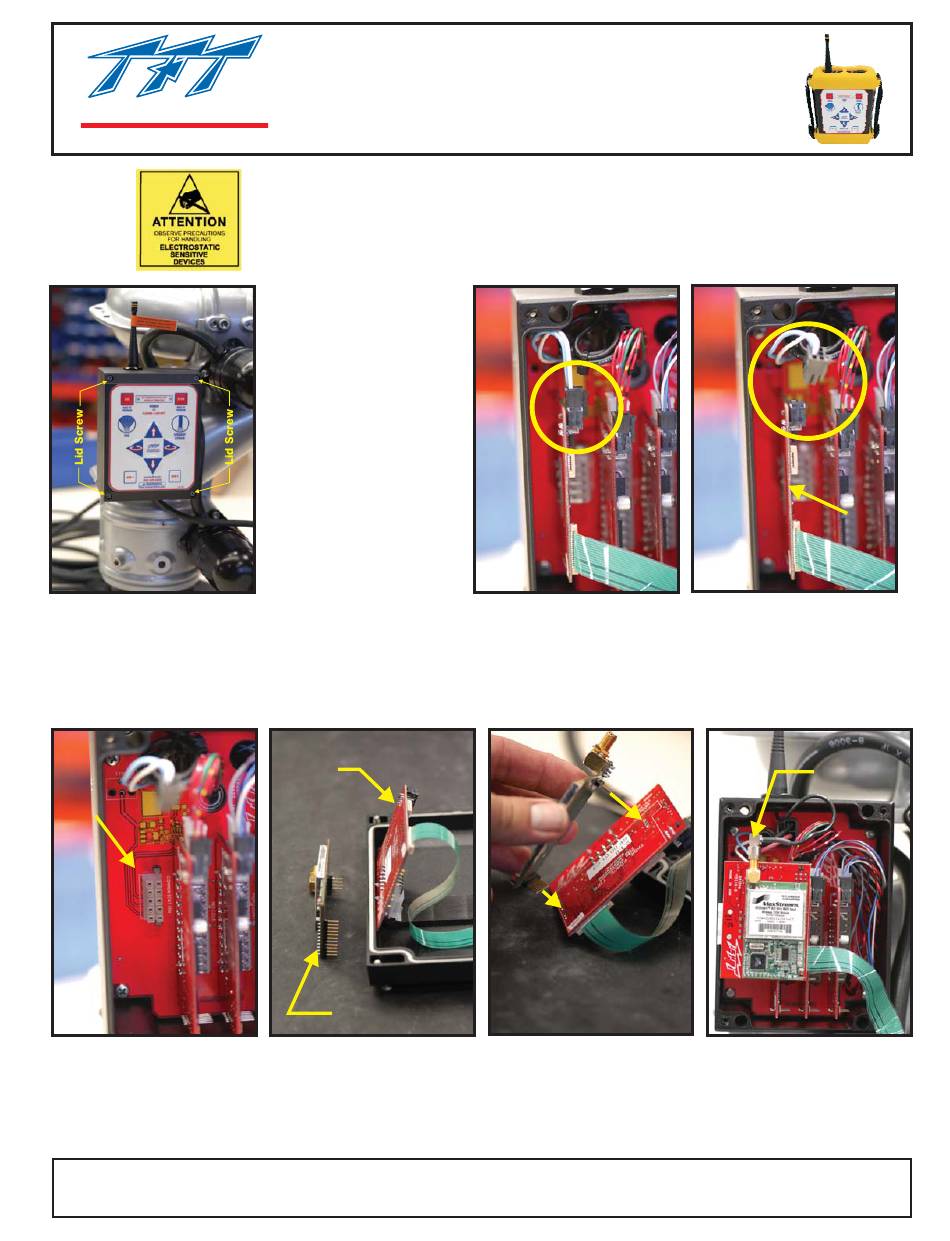

1) Turn off power and remove lid from monitor control box.
Unscrew the lid screws but do not remove screws completely
from lid. Be careful to open lid slowly as lid is connected to
communication board by a flat cable.
Securely support lid during the installation process.
Board
Removed
4 ) R e m o v e t h e s m a l l
communication board on the far
left. Pull board straight out.
TASK FORCE TIPS, Inc.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2010
INSTRUCTIONS FOR INSTALLATION
® OF RADIO BOARD FOR (YE-RF-##)
Observe precautions for handling Electrostatic Sensitive Devices. Be
sure to touch unpainted, exposed metal on monitor or firetruck before
removing and handling circuit boards.
Communication
Board
Radio Board
2) Locate connector with blue &
white wires on the small
communication board on the far
left.
5) Plug radio board into
communication board. Be
careful to line up pins.
3701Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
Communication
Board
3) Unplug connector with blue &
w h i t e w i r e s f r o m
communication board.
Antenna
Connector
6) Attach antenna connector to
radio board with the cable in the
orientation. Note, in some RC
monitors, cable tie may need to
be cut to attach antenna.
LIY-415 October 4, 2010 Rev00
t h e
