Task Force Tips YE-RF-RAD Series Instructions For Installation page 2

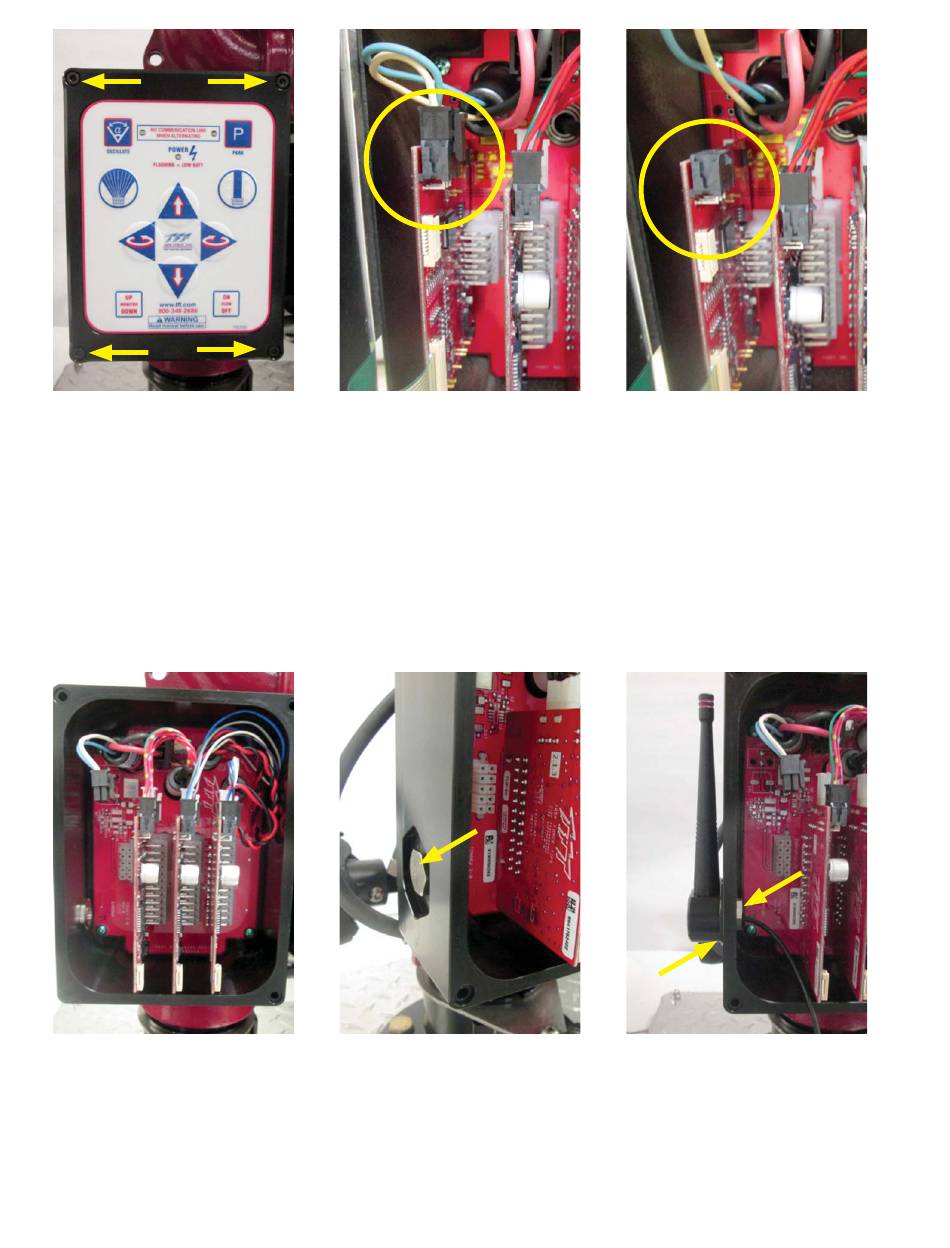

STEP 1:
Turn off power and remove lid from
monitor control box.
Unscrew the lid screws using 3mm
allen head wrench, but do not
removed the screws from the lid.
Be careful to open the lid slowly as
it is connected to the communication
board by a fl at cable.
Securely support the lid during the
installation process.
STEP 4:
Remove the communication board by
pulling it straight out.
©Copyright Task Force Tips, Inc. 2007 - 2016
STEP 2:
Locate the connector with blue &
white wires on the communication
board (far left).
STEP 5:
Remove the nut and hex plug from
the side of the monitor control box.
2
STEP 3:
Unplug the connector with blue &
white wires from the communication
board.
STEP 6:
Check to be sure the O-ring is in the
groove on the antenna base.
Apply red Loctite to the threads on
the antenna base.
Feed the antenna connector through
the hole and tighten the antenna base
and nut to the monitor control box.
LIY-410 July 10, 2016 Rev05
