Summary of Contents for ATD Tools ATD-3305

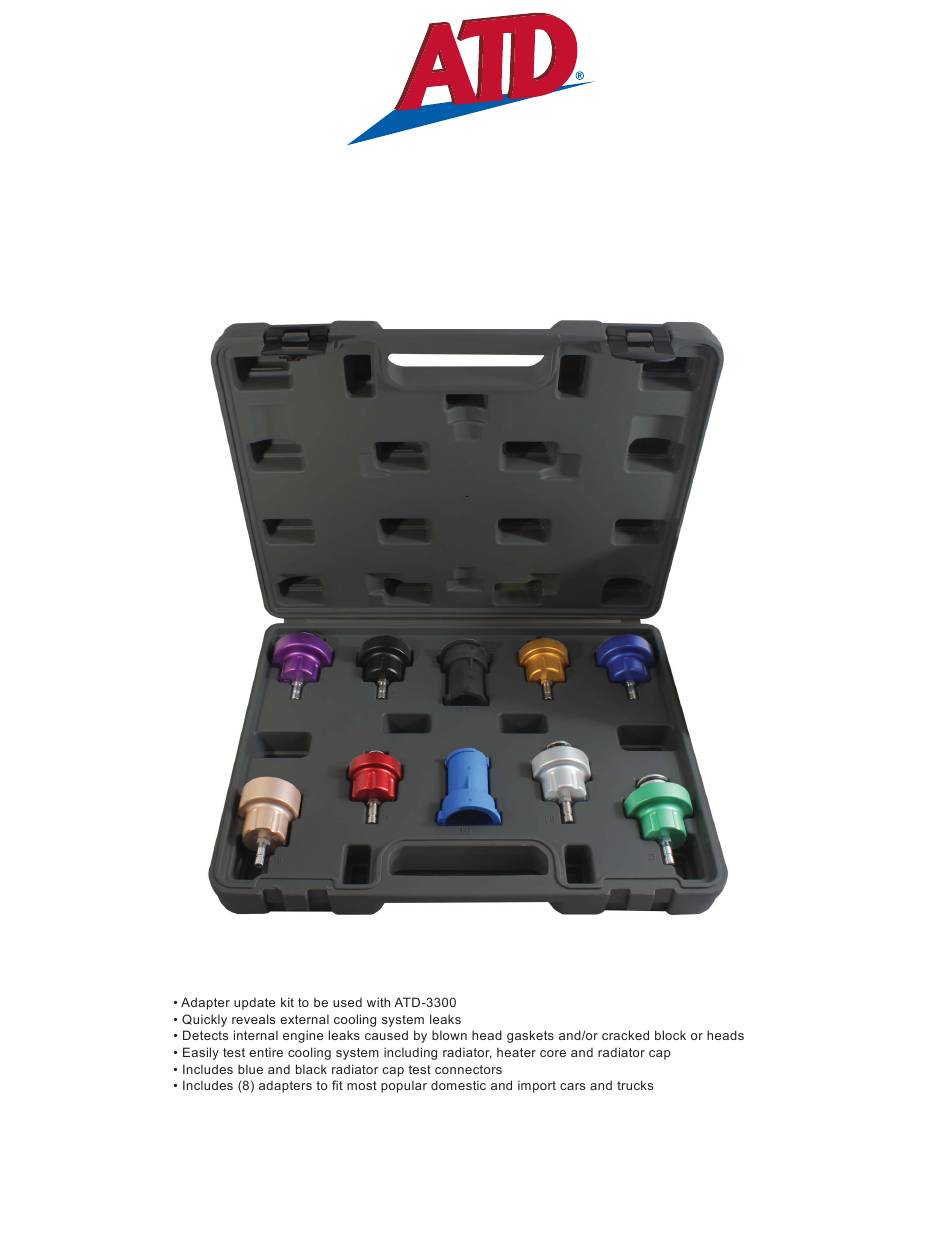

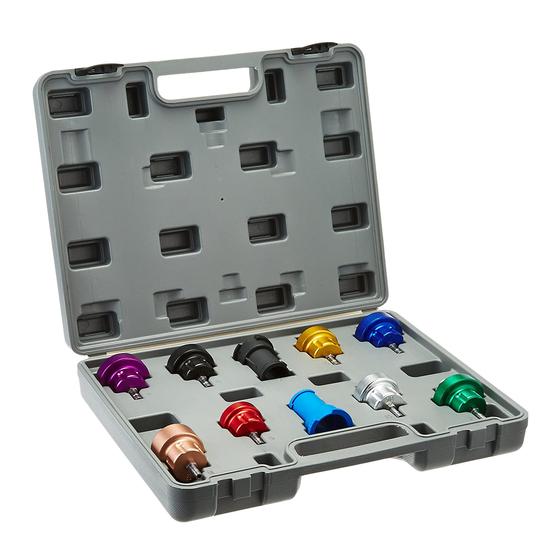

- Page 1 ATD-3305 10 Pc. Cooling System Pressure Test Adapter Update Kit Owner’s Manual FEATURES: Made in China to ATD Tools, Inc. Specifications ATD3305_rev_0519 Visit us at www.atdtools.com...
- Page 2 ITEM# PART# DESCRIPTION 43302-14 Aluminum #14 Adapter (purple) 43302-15 Aluminum #15 Adapter (black) 43302-16 Aluminum #16 Adapter (dark gold) 43302-17 Aluminum #17 Adapter (royal blue) 43302-18 Aluminum #18 Adapter (champagne) 43302-19 Aluminum #19 Adapter (red) 43302-20 Aluminum #20 Adapter (light silver) 43302-21 Aluminum #21 Adapter (light green) 43302-5A...
- Page 3 NOTE: The warnings and cautions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. WARNING: Use safety equipment.
- Page 4 small leaks or seepage. Needle drops quickly – Indicates serious leakage is present. 6. Once the test is complete, release the air pressure by depressing the pressure release valve on the hand pump hose, then disconnect the quick coupler and adapter assembly. 7.
- Page 5 VEHICLE COMPATIBILITY CHART CONTINUED Ford Europe (B-Max: 2012, C-Max: 2007-2012, Fiesta: 2001-2013, Fiesta Van: 2008-2010, Focus: 2004-2013, Focus CC: 2006- 2011, Focus C-Max: 2003-2007, Focus Estate Wagon: 2004-2013, Focus Van: 2005-2013, Galaxy: 2006-2011, Galaxy Van: 2006- 2010, Grand C-Max: 2010-2012, Kuga: 2008-2012, Mondeo: 2007-2012, Mondeo Estate Wagon: 2007-2011, S-Max: 2006- 2011, Transit 250: 2011, Transit 260: 2006, Transit 280: 2006, Transit 300: 2006, Transit 330: 2006-2013, Transit 350: 2006- 43302-15 2013, Transit 370: 2006, Transit 410: 2006, Transit 430: 2006-2013, Transit 460: 2006, Transit Custom 250: 2012, Transit...
- Page 8 WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES...
