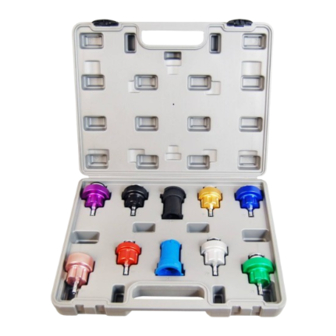

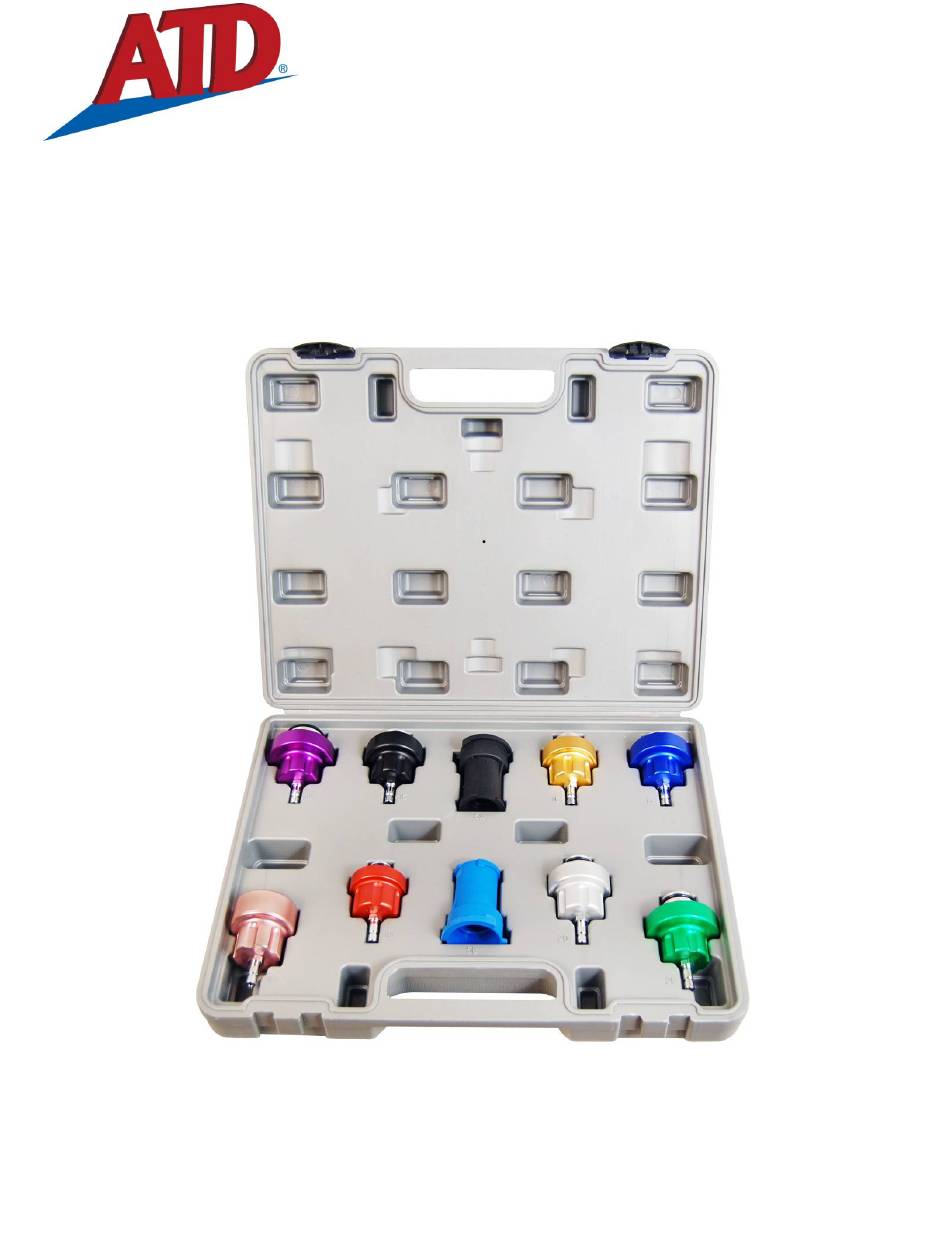

- Page 1 ATD‐3305 10P RADIATOR PRESSURE TESTER ADAPTER UPDATE* KIT *For use with the ATD‐3300 set...
- Page 2 SAFETY WARNING AND PRECAUTIONS General Safety Warnings: WARNING: The instructions and warnings contained in this manual should be read and understood before using or operating this tool. Do not allow anyone to use or operate this tool until they have read this manual and have developed a thorough understanding of how this tool works. Failure to observe any of the following instructions could result in severe personal injury to tool user and bystanders, or cause damage to the tool and property. Keep this manual for future reference. Note: The warnings and cautions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. WARNING: Use safety equipment. User and bystanders should use safety goggles or safety glasses with side shields which comply with current national standards, or when needed, a face shield. Use an ANSI approved dust mask or respirator when working around metal, wood, and chemical dusts and mists. This applies to all persons in the work area. Also use non‐skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate. WARNING: Keep bystanders and children out of the work area while operating this tool.
- Page 3 TO TEST FOR LEAKS IN COOLING SYSTEM: Refer to the vehicle’s service manual for any specific radiator pressure testing instructions. Loosen the vehicle’s radiator cap slowly to relieve any excess pressure before removing the cap completely. NEVER OPEN THE SYSTEM WHILE HOT, as this may cause personal injury. Select the proper adapter and configuration of the stationary seat accessories. Securely attach the adapter to the filler neck of the radiator or expansion tank. Attach the quick connector of the hand pump onto the adapter. Rapidly pump the hand pump handle using straight force as shown in figure 1 while watching the pressure gauge. Pressurize the radiator up to the optimal pressure only ‐ DO NOT OVER PRESSURIZE THE RADIATOR. Ideal ...
- Page 5 ITEM # ORDERING PART# PART DESCRIPTION PRT3301-5A RADIATOR CAP TEST CONNECTOR FOR #2 & #3-BLACK PRT3301-5B RADIATOR CAP TEST CONNECTOR FOR #2 & #4-BLUE PRT3301-14 #14 ALUMINUM ADAPTER FORD: (MONDEO), (FOCUS), (C-MAX03) PRT3301-15 #15 ALUMINUM ADAPTER MAZDA: (M3: 2004-); FORD: (FOCUS: 2011-2012) PRT3301-16 #16 ALUMINUM ADAPTER MERCEDES: (A-CLASS : W168)
- Page 6 PRT3301-16G GASKET FOR #16 ADAPTER PRT3301-17G GASKET FOR #17 ADAPTER PRT3301-18G GASKET FOR #18 ADAPTER PRT3301-19G GASKET FOR #19 ADAPTER PRT3301-20G GASKET FOR #20 ADAPTER PRT3301-21G GASKET FOR #21 ADAPTER...
