ATD Tools ATD-3325 Owner's Manual

Def / coolant refractometer

DEF / Coolant Refractometer

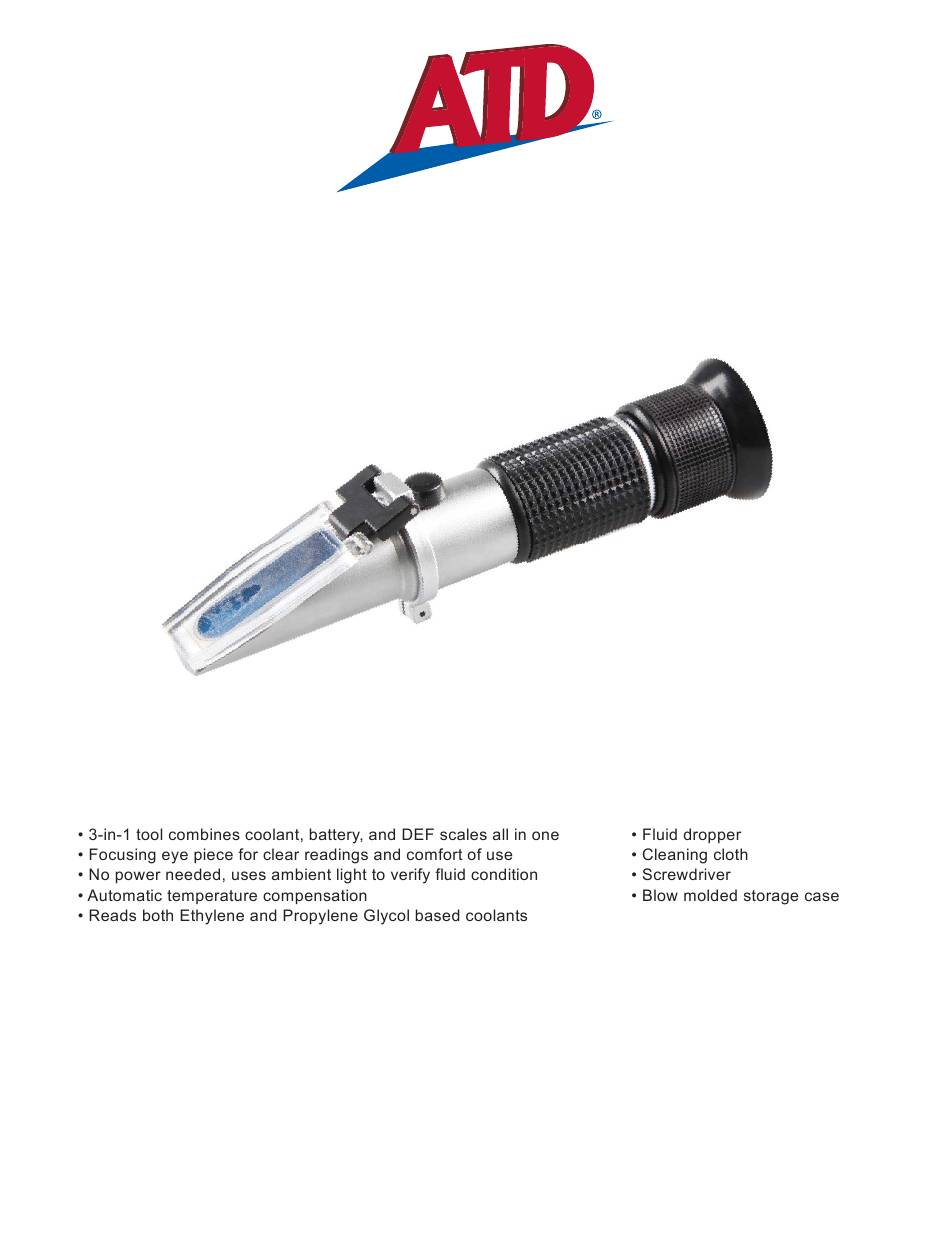

Features:

Range:

Ethylene Glycol: -60°F to 32°F

Propylene Glycol: -60°F to 32°F

Battery: 1.100-1.400 Specific Gravity

AdBlue (DEF) : 30% - 35%

Windshield Washer Fluid: Ethanol + water :32°F to -40°F, propylene glycol + water (SRF1): 32°F to - 40°F

ATD-3325

Owner's Manual

Minimum Division:

Ethylene Glycol: 5°F

Propylene Glycol: 5°F

Battery: 0.01 Specific Gravity

Made in China to ATD Tools, Inc. Specifications

Visit us at www.atdtools.com

Accuracy:

Ethylene Glycol: ±5°F

Propylene Glycol: ±5°F

Battery: ±0.01 Specific Gravity

ATD3325_rev_0419

Table of Contents

Do you have a question about the ATD-3325 and is the answer not in the manual?

Page 1 Battery: ±0.01 Specific Gravity AdBlue (DEF) : 30% - 35% Windshield Washer Fluid: Ethanol + water :32°F to -40°F, propylene glycol + water (SRF1): 32°F to - 40°F Made in China to ATD Tools, Inc. Specifications ATD3325_rev_0419 Visit us at www.atdtools.com...
Page 2 REFRACTOMETER NOMENCLATURE Daylight Focus Plate Screw Adjustment Main Prism Eyepiece Grip OPERATION 1. Open daylight plate, and place 2-3 drops of distilled water on the main prism. Close the daylight plate so the the water spreads across the entire surface of the prism without air s or dry spots.
Page 3 2. Hold daylight plate in the direction of a light source and look into the eyepiece. You will see a circular field with graduations down the center (you may have to focus the eyepiece to clearly see the graduations). The upper portion of the field should , while the lower portion should white.
Page 4 Your ATD-3325 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
