Summary of Contents for ATD Tools ATD-3305

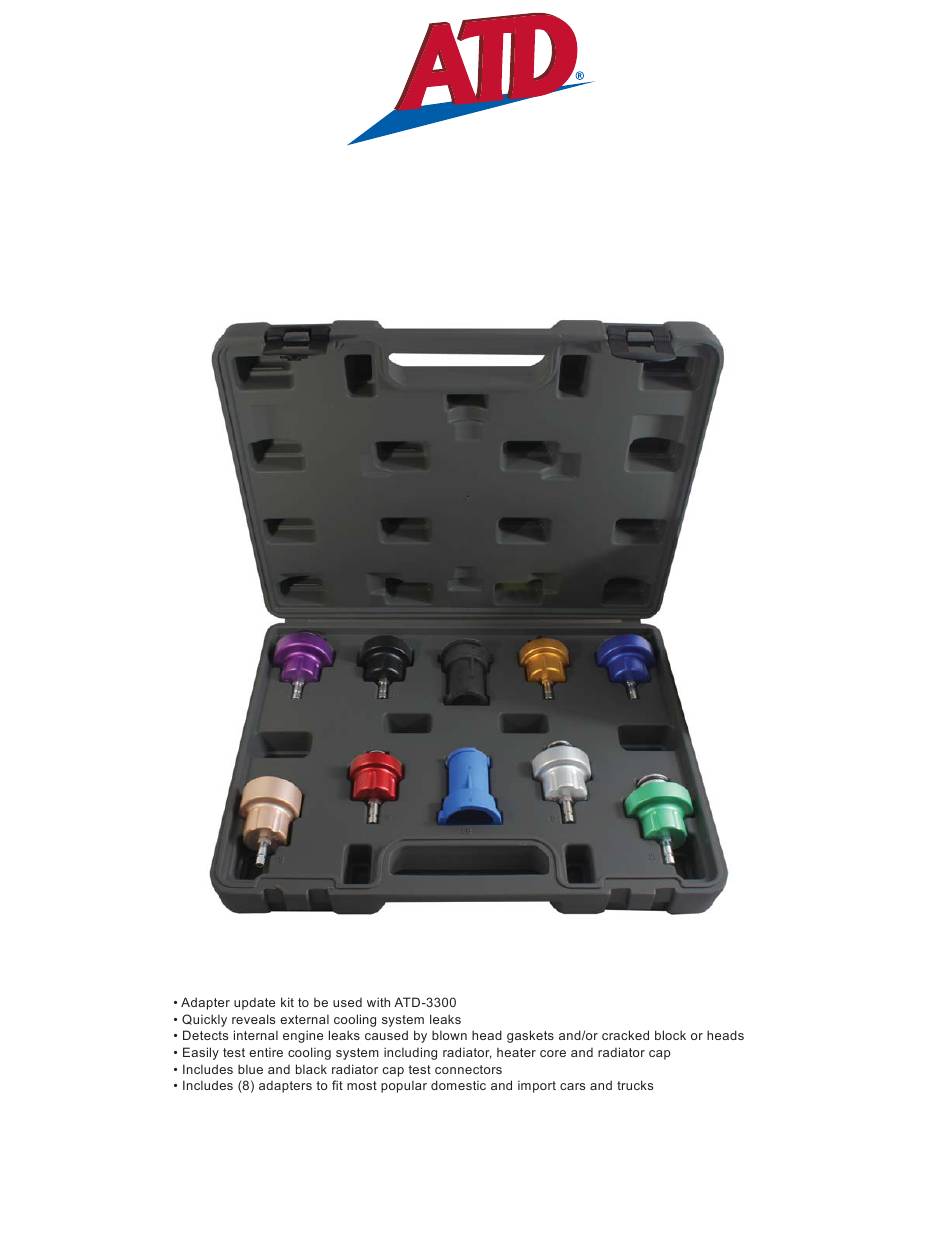

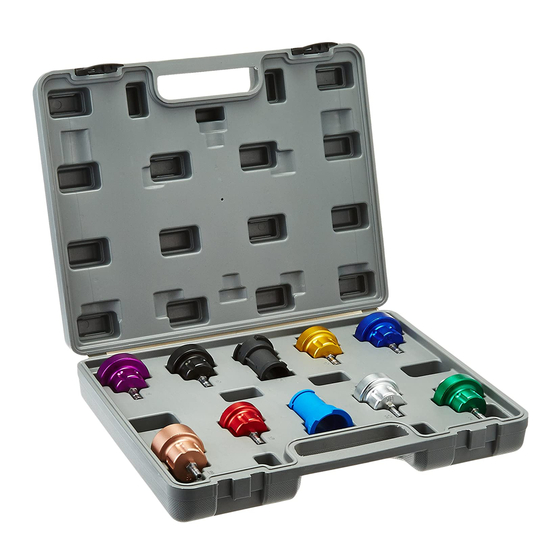

- Page 1 ATD-3305 10 Pc. Cooling System Pressure Test Adapter Update Kit Owner’s Manual FEATURES: ATD3305_rev_0921 Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
-
Page 2: Replacement Parts
ITEM# PART# DESCRIPTION 43302-14 Aluminum #14 Adapter (purple) 43302-15 Aluminum #15 Adapter (black) 43302-16 Aluminum #16 Adapter (dark gold) 43302-17 Aluminum #17 Adapter (royal blue) 43302-18 Aluminum #18 Adapter (champagne) 43302-19 Aluminum #19 Adapter (red) 43302-20 Aluminum #20 Adapter (light silver) 43302-21 Aluminum #21 Adapter (light green) 43302-5A... - Page 3 WARNING: Keep bystanders and children out of the work area while operating this tool. WARNING: Always keep your work area clean, uncluttered, and well lit. Cluttered or dark areas invite accidents and injuries. DO NOT work on poor surfaces that are slippery. WARNING: Do not operate this tool if you are tired or under the influence of alcohol, drugs, or medications that could affect your ability to use the tool properly.
- Page 4 6. Once the test is complete, release the air pressure by depressing the pressure release valve on the hand pump hose, then disconnect the quick coupler and adapter assembly. 7. Maintenance – After testing process in Radiator Test: Keep the adapter connected to the pump as you had set up while performing the actual test. Operate the pump several times to dissipate moisture and/or coolant that may have remained in the adapter and pump.
- Page 5 VEHICLE COMPATIBILITY CHART MAKE MODEL YEARS MAKE MODEL YEARS 3 Series 1998-2013 Chevrolet 2001-2007 Silverado 2500 HD 3 Series M 2007-2013 Chevrolet Silverado 3500 2001-2007 3 Series M3 2007-2013 Chevrolet 2007 Silverado 3500 HD Convertible Chevrolet 2006 2007-2011 3 Series M3 Sedan Chevrolet Suburban 1500 2001-2007...
- Page 6 MAKE MODEL YEARS MAKE MODEL YEARS Ford 1996-2009 Ford Europe Transit 370 2006 Ford Kuga 2013-2017 Ford Europe Transit 410 2006 Ford Kuga I 2008-2016 Ford Europe Transit 430 2006-2013 Ford Mondeo 2000-2007 Ford Europe Transit 460 2006 Ford Mondeo 2007-2014 Ford Europe 2012...
- Page 7 MAKE MODEL YEARS MAKE MODEL YEARS Land Rover Freelander2 2006-2014 B 200 2005-2011 Mercedes Benz Land Rover 2006 B 200 CDi 2005-2011 Mercedes Benz Land Rover 2011-2017 B 200 Turbo 2005-2011 Range Rover Evoque Mercedes Benz Lexus 1S F 2008-2013 B150 2009-2011 Mercedes Benz...
- Page 8 MAKE MODEL YEARS MAKE MODEL YEARS Opel Zafira A 1999-2005 Volvo 2012-2017 Opel Zafira B 2005-2016 Volvo 2012 V40 Cross Country Opel Zafira B 2005-2011 Volvo V40 Hatchback 2012 Opel Zafira Van 2005 Volvo 2003-2012 Pontiac 2007 Volvo V50 NW 2004 Pontiac 2006...
-
Page 9: Year Limited Warranty
WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES...
