ATD Tools ATD-5585 Owner's Manual

Premium automotive dmm
Hide thumbs

Advertisement

Quick Links

Download this manual
ATD-5585
Premium Automotive DMM
Owner's Manual
F
eatures:

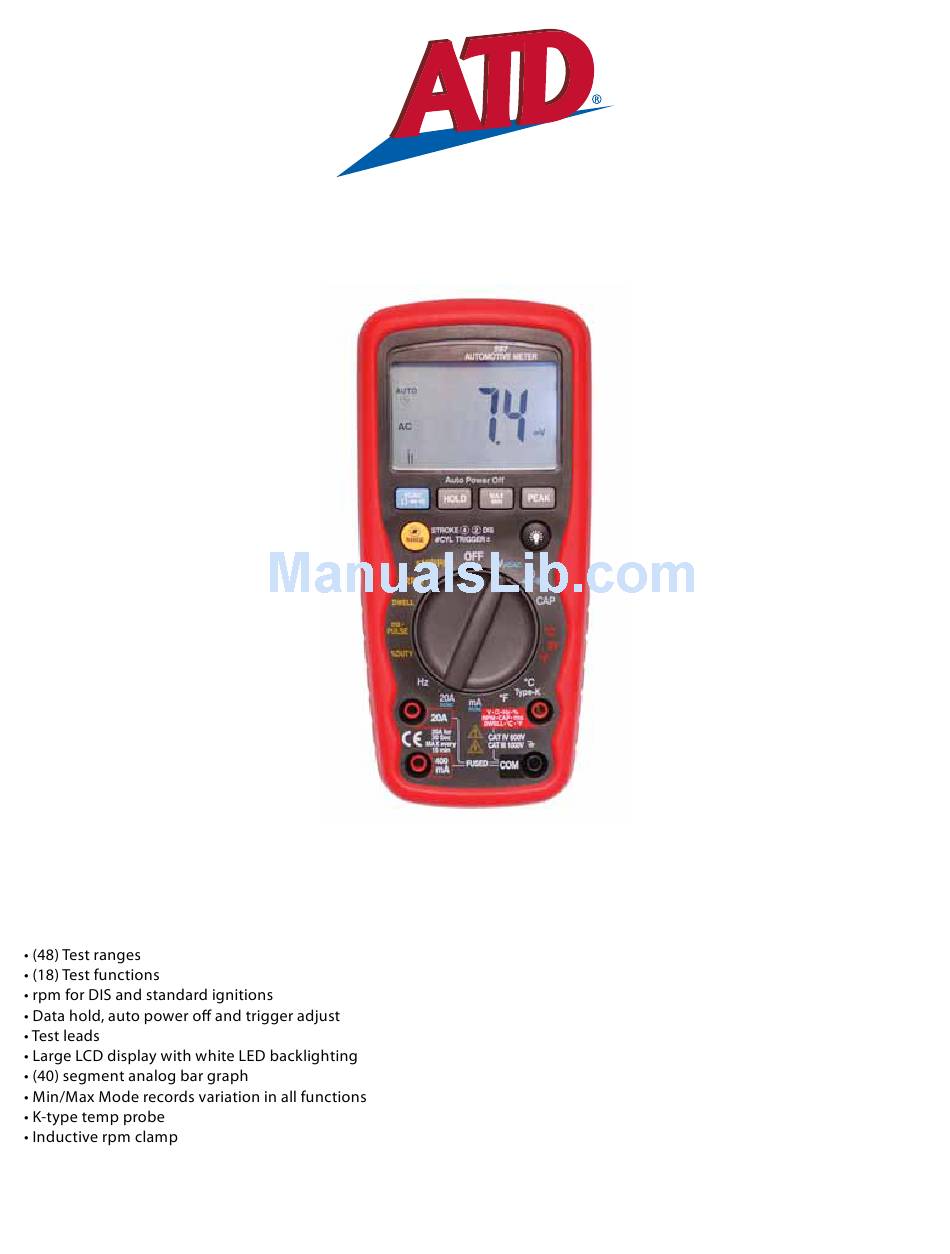

Highest quality auto-ranging DMM designed for automotive trouble shooting. Min/Max Mode records transient voltages as fast as
1 millisecond. Milliseconds pulse width measures fuel injector on-time. Also measures temperature via temp probe in both ˚F and ˚C
and a desirable 20 Amp test range. Unit has dual fuse protection, modern design and protective holster built into the housing.
Instruction manual and molded storage case included.
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
ATD5585_rev_0917

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATD-5585 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATD Tools ATD-5585

Summary of Contents for ATD Tools ATD-5585

  • Page 1 20 Amp test range. Unit has dual fuse protection, modern design and protective holster built into the housing. Instruction manual and molded storage case included. Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
  • Page 2 ATD-5585 Contents Safety...................................3 Push-button Functions..........................6 Mode Button..............................6 Dwell.................................16 General Specifications..........................20 Warranty Information..........................26...
  • Page 3 SAFETY WARNING vehicle exhaust system to the shop exhaust removal system. possibly fatal injury. Carefully read and understand the cautions and the specification limits of this meter. terminal.
  • Page 4 IMPORTANT appears on the meter display. changing functions. FUNCTION Terminal Input limit DC/AC Volts, Ohm/Con nuity Diode,CAP,IR TEMP V- -RPM 600 Volts AC/DC Adaptor, Type-K TEMP, Hz, %Duty, Ms Dwell, RPM AC/DC A mA A mA 400mA AC/DC AC/DC 20A *20A AC/DC However, the meter is protected to 600 volts.
  • Page 5 8.8.8.8 Continuity Diode Alternating Current or Voltage Direct Current or Voltage Amps Volts ºF Degrees Fahrenheit ºC Degrees Centigrade...

  • Page 6: Data Hold

    PUSH BUTTON FUNCTIONS AUTOMOTIVE METER Mode Button Diode, Continuity & Capacitance AUTO POWER OFF DC/AC HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM DC/AC DWELL Manual Range & Stroke 4/2(DIS), °C MS - Hz, %, ms +/-, CYL Button PULSE AUTOMOTIVE METER °F...
  • Page 7 AUTOMOTIVE METER Peak Hold in duration. AUTO POWER OFF DC/AC 1. Set the function switch to the Amps or Volts. HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER meter will go into manual ranging mode. x10RPM DC/AC DWELL °C MS - PULSE °F...
  • Page 8 AUTOMOTIVE METER Meter Functions - Voltage (V) AUTO POWER OFF DC/AC HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM DC/AC DWELL °C MS - PULSE °F %DUTY °C Type-K °F DC/AC DC/AC 20A for 30 Sec CAT IV 600V MAX every CAT III 1000V 15 min...
  • Page 9 AUTOMOTIVE METER Meter Functions - Resistance (Ω) IMPORTANT: If you are testing an application that has capacitors AUTO POWER OFF in the circuit, be sure to turn the power OFF on the test circuit and DC/AC HOLD PEAK discharge all capacitors. Accurate measurement is not possible if STROKE 4 2 DIS RANGE external or residual voltage is present.
  • Page 10 Meter Functions – Diode Check ( ) AUTOMOTIVE METER IMPORTANT: Turn the power OFF to the test circuit button. AUTO POWER OFF DC/AC HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM DC/AC DWELL °C MS - PULSE °F %DUTY °C Type-K...
  • Page 11 °F %DUTY °C Type-K °F DC/AC DC/AC 20A for 30 Sec CAT IV 600V MAX every CAT III 1000V 15 min FUSED Meter Functions – Capacitance (CAP) AUTOMOTIVE METER IMPORTANT: Turn the power OFF to the test circuit AUTO POWER OFF DC/AC HOLD PEAK...
  • Page 12 AUTOMOTIVE METER AUTO POWER OFF DC/AC Meter Functions – Audible Continuity ( ) HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER IMPORTANT: Turn the power OFF to the test circuit x10RPM DC/AC DWELL the rotary switch. °C MS - PULSE °F %DUTY...
  • Page 13 AUTOMOTIVE METER Meter Functions – AC or DC Current (A) IMPORTANT: All current measured flows through the meter. It is important that you DO NOT AUTO POWER OFF DC/AC HOLD PEAK DO NOT measure current greater than 600 Volts STROKE 4 2 DIS AC or DC, with respect to ground.
  • Page 14 AUTOMOTIVE METER Meter Functions –Temperature (°C/°F ) it away from sources of very high temperature. The life AUTO POWER OFF DC/AC HOLD PEAK of the Temperature Probe is also reduced when subjected to very high temperatures. Probe operating STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM...
  • Page 15 AUTOMOTIVE METER AUTO POWER OFF DC/AC HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM DC/AC Meter Functions – Frequency (Hz) DWELL °C MS - PULSE °F %DUTY °C Type-K °F DC/AC DC/AC 20A for 30 Sec CAT IV 600V MAX every CAT III 1000V 15 min...
  • Page 16 AUTOMOTIVE METER AUTO POWER OFF DC/AC HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM DC/AC Meter Functions – Dwell DWELL °C MS - PULSE °F %DUTY °C Type-K °F DC/AC DC/AC 20A for 30 Sec CAT IV 600V MAX every CAT III 1000V 15 min...
  • Page 17 AUTOMOTIVE METER AUTO POWER OFF DC/AC HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM DC/AC Meter Functions – Duty Cycle (%) DWELL °C MS - PULSE °F %DUTY °C Type-K °F DC/AC DC/AC 20A for 30 Sec CAT IV 600V MAX every CAT III 1000V 15 min...
  • Page 18 Meter Functions- ms-PULSE (Pulse Width) & ms- PERIOD (Period) example, fuel injectors are activated by an electronic pulse AUTOMOTIVE METER This pulse generates a magnetic field that pulls the injectors This open to close time is the Pulse Width and is measured in AUTO POWER OFF The most common automotive application for measuring DC/AC...
  • Page 19 AUTOMOTIVE METER Meter Functions – RPM / x10 RPM AUTO POWER OFF DC/AC HOLD PEAK STROKE 4 2 DIS RANGE #CYL TRIGGER x10RPM DC/AC DWELL °C MS - meter. PULSE °F %DUTY °C Type-K °F DC/AC DC/AC 20A for 30 Sec CAT IV 600V MAX every CAT III 1000V...

  • Page 20: General Specifications

    General Specifications The instrument complies with IEC 1010-1 EN61010-1. Insulation: Class2, Double insulation. Overvoltage category: CATIII1000V/CATIV600V. Display: Polarity: Overrange: Low battery indication: Measurement rate: 2 times per second, nominal. Auto power off: Meter automatically shuts down after approx. 30 minutes of inactivity. Operating environment: Storage temperature: For inside use, max height: 2000m...
  • Page 21 Electrical Specifications Continued...
  • Page 22 Electrical Specifications Continued...
  • Page 23 Electrical Specifications Continued Maintenance REPLACING THE BATTERY the battery door. 2. Follow instructions for installing battery. See the Battery Installation section of this manual. 3. Dispose of the old battery properly. securely.
  • Page 24 BATTERY INSTALLATION the battery door. 1. Disconnect the test leads from the meter. 2. Open the battery door by loosening the screw using a Phillips head screwdriver. 3. Insert the battery into battery holder, observing the correct polarity. securely. NOTE: and that they are properly inserted.

  • Page 25: Troubleshooting

    Troubleshooting 1. Meter will not turn ON. 2. Ampere reading is erratic or there is no reading at all. continuity with another meter. 3. Meter reading is erratic.
  • Page 26 Your ATD-5585 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
