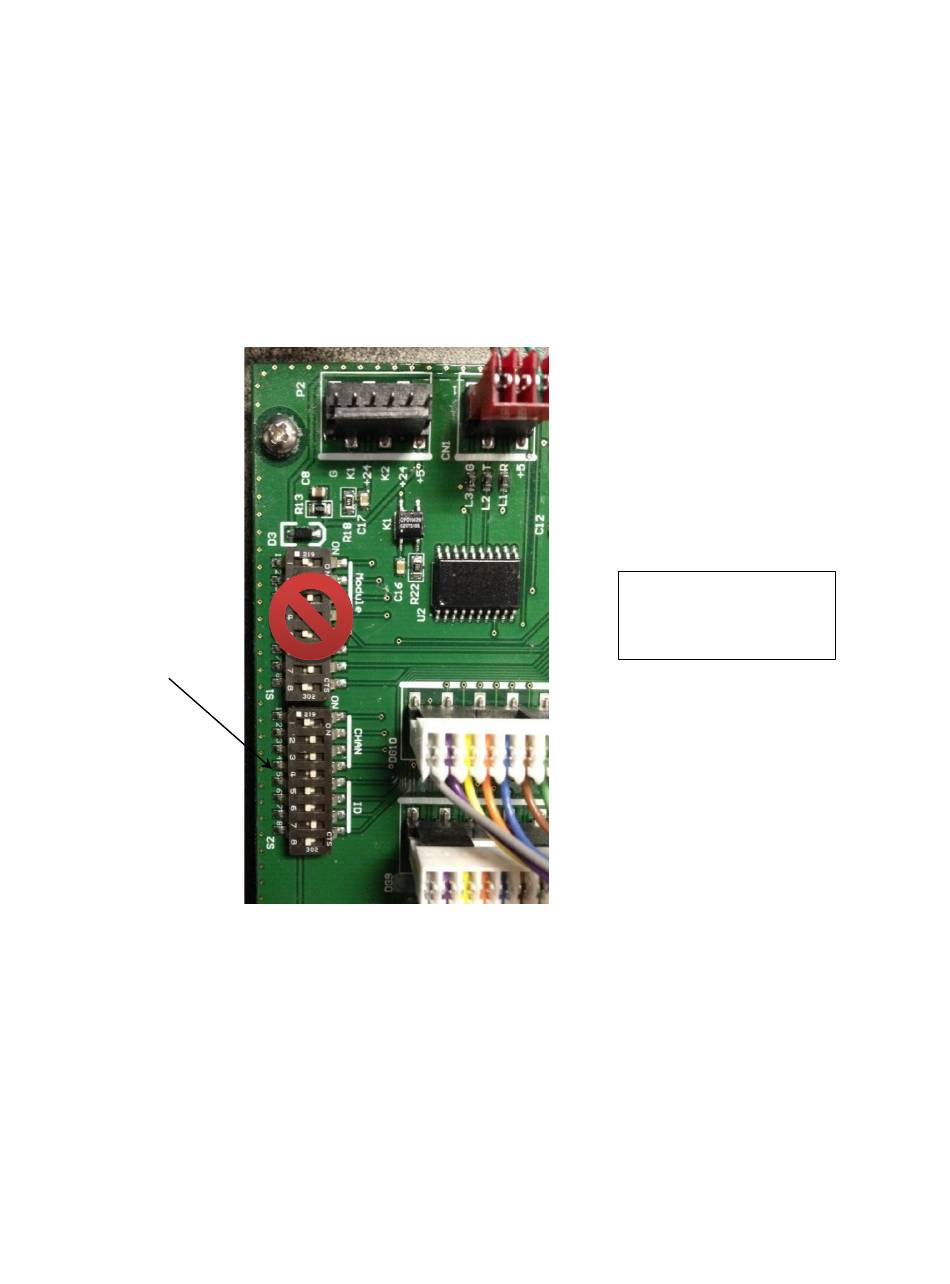

2. Set the Channel and PAN on the dip switches for control board A.
DIP switch settings (Off = 0, On = 1)
Channels: Switches 1-4 of S2. 0 to 11 are valid
PAN ID:
0 0 0 0
1 0 0 0
0 1 0 0
1 1 0 0
NOTE: Settings of S1 should not be changed. Doing so will cause the display to
cease functioning properly.
S2
3. Replace the weather covers. Replace end cap.
www.coloradotime.com
Switches 5-8 of S2. 0 to 15 are valid
0 0 0 1 0
1 1 0 1 0
2 0 1 1 0
3 1 1 1 0
4 0 0 0 1
5 1 0 0 1
6 0 1 0 1 10
7 1 1 0 1 11
New picture w/ S3
8 0 0 1 1 12
9 1 0 1 1 13
0 1 1 1 14
1 1 1 1 15
