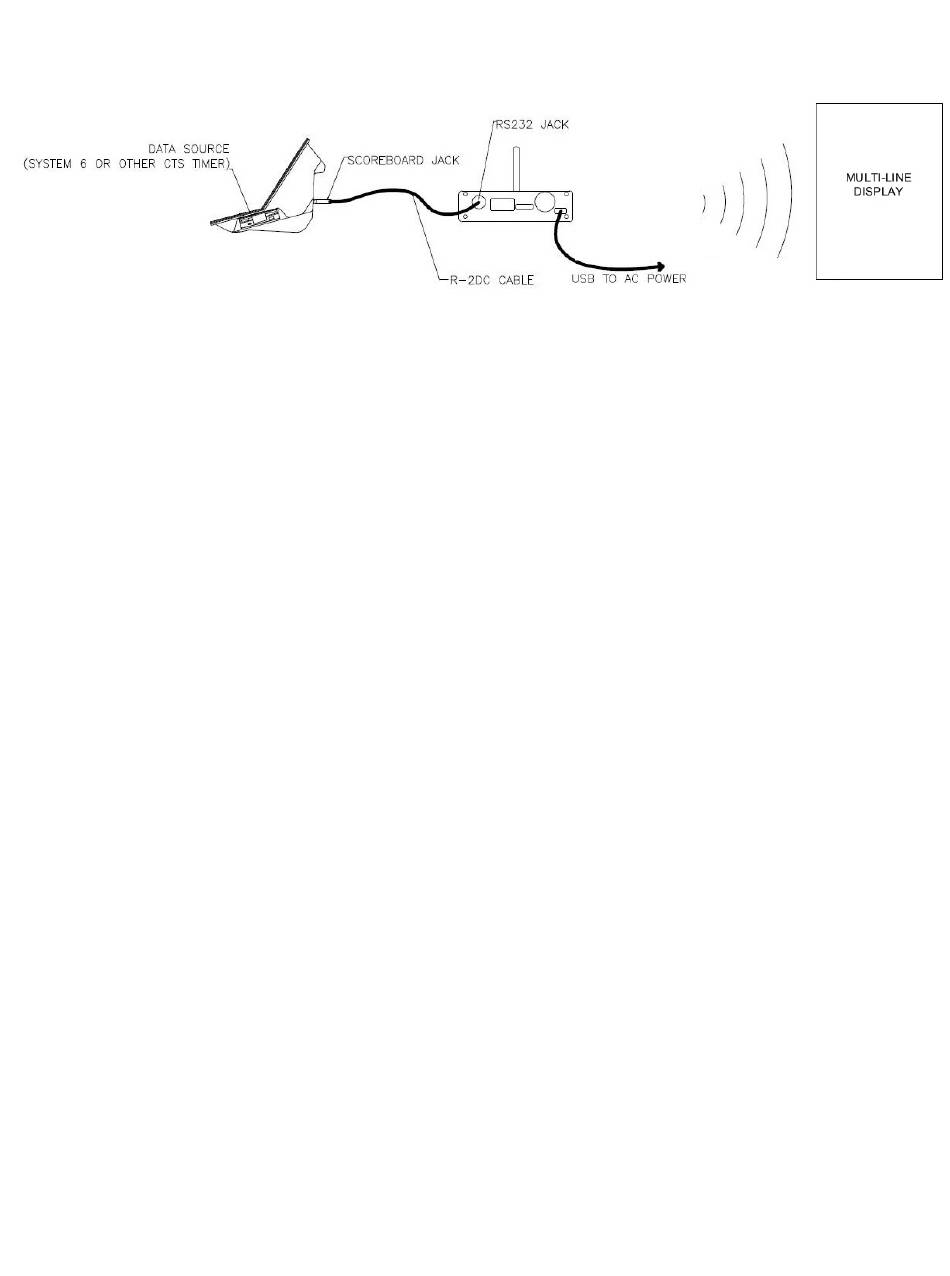

Wireless connection:
When using a wireless connection, the WA-2 wireless adapter and scoreboard must be set
to the same channel and PAN. Follow the WA-2 user instructions to change its channel
and PAN. Follow instructions on previous pages if scoreboard Channel and PAN must be
changed.
Displaying data correctly
Proper operation of the scoreboard with sports timer data requires the default
scoreboard module definitions on the sports timer.
Time of Day
When the scoreboard is on but does not receive data from a data source for longer than
30 seconds, the board will display time of day in Lane 1. Follow the instructions in your
sports console user manual to set the time, and it will also be saved to the scoreboard.
The scoreboard definition for time of day module must be set 16, which is the default.
Ambient Light Sensor Set-up and Operation
The ambient light sensors can be enabled and disabled from a System 6.
To turn the sensor on, follow these steps:
1. Go to the Setups screen in Swimming
2. Select "Hardware" on the left pane
3. Press "0" to set the intensity
4. Select "2" as the intensity value
5. In Swimming, these settings are automatically saved.
The board will now begin to control the intensity automatically based on the intensity of
the light hitting the board.
To turn the sensor off, follow steps 1-3 above, selecting anything above a 2 for the
intensity value.
There are multiple sensors to compensate for shadows across the board. The number of
sensors will vary depending on the size of board.
The top sensor is to the right of lane 1, and controls lanes 1, 2, 3 and Event/Heat.
The sensor next to lane 5 controls lanes 4, 5, 6
The sensor next to lane 7 controls lanes 7, 8, 9
The sensor next to lane 9 controls lane 10
