Wireless Water Polo Horn User Instructions

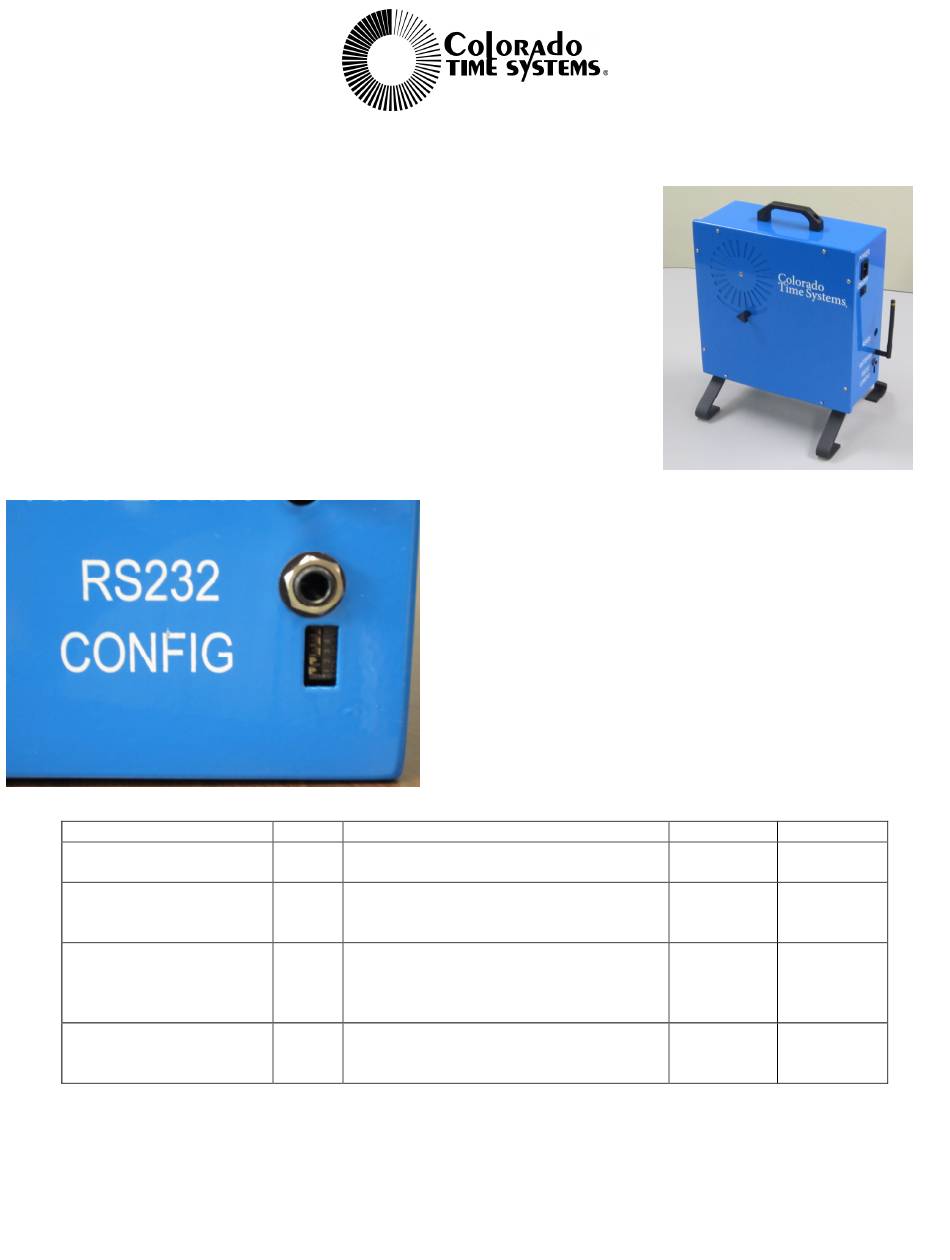

The wireless water polo horn is easy to set up and requires no user
intervention once set up. The horn can be portable (shown at right) or
mounted on a wall (shown on page 2).
It contains a built-in wireless scoreboard adapter:
• Physically connect the horn to your CTS timer (System 6, for
example) and use it to transmit scoreboard data wirelessly to
wireless shot clocks and/or a WA-1 connected to a scoreboard.
• Physically connect the horn to a scoreboard or shot clock, and it can
function as a receiver of wireless data for that display.
Physically Connected to
CTS timer or Pace Clock
Controller
LED Scoreboard, Pace
Clock or Shot Clock
DisplayLink computer
LED numeric scoreboard
without RS485 jacks
th
1551 E. 11 Street, Loveland, CO 80537 Phone: 970-667-1000 x256 Fax: 970-667-1032 Toll free: 800-287-0653 ext. 256
Via Wireless Function
Transmits data to a wireless shot clock, or
RS232
wireless adapter attached to a scoreboard
Receives data from a wireless adapter
RS485 attached to the timer and passes it to the
device it's physically attached to
Receives data from a wireless adapter
attached to the timer and passes it to the
RS232
DisplayLink computer it is physically
attached to
Receives data from a wireless adapter
RS232 attached to the timer and passes it to the
scoreboard it's physically attached to
Colorado Time Systems
www.coloradotime.com E-mail: customerservice@coloradotime.com
F953 Rev. 20110901 (page 1)
Setting the Switches for Specific
Applications
The configuration switches are accessible from the right side
of the horn, and are labeled CONFIG. When you look at
them with the horn right side up, the switches can be set Left
or Right. When you look at them so the switch numbers are
right side up, the horn will be on its back and the switches
can be set Up or Down. With the power off, set switches 1
and 2 according to what you want the wireless adapter
inside the horn to do:
Switch 1 Switch 2
Right/Down Right/Down
Left/Up Left/Up
Left/Up Right/Down
Left/Up Right/Down
