Physically Changing The Scoreboard Channel (For Gen7, System 6 Or Older Sports Timer) - Colorado time systems MS-0149 Installation And User Manual

Setting Time of Day and Changing Channel with Wireless Handheld
Controller (WHC)
For handheld controller (WHC), enter the Menu and select "Time of Day". Time of Day
from WHC will override the time on the leader and all follower clocks and scoreboards.
To change the channel and PAN, select "Connections"
Time of Day from a Sports Console (Gen 7, System 6, System 5)
Gen7 timers will receive time of day from the attached laptop and transmit that time to
leader clocks/scoreboards that are turned on and on the same channel and PAN. You
can also manually send time of day from the scoreboard settings screen. The leader will
update the followers.
System 6 and System 5 sports consoles will send time of day to leader
clocks/scoreboards connected to them via RS-232 or wirelessly from WA-3/WA-2 on the
same channel and PAN. The leader will then update the followers.
Physically changing the scoreboard channel (for
Gen7, System 6 or older sports timer)
If using the scoreboard wirelessly, the scoreboard's wireless settings must match the
transmitter that you are using. For Gen7, System 6 and older sports timers, this is the
channel and PAN.
It is usually easiest to set the data source to match the scoreboard. To do this, follow the
user instructions for Gen7 or wireless transmitter WA-3/WA-2.
Sometimes, however, it is preferable to change the scoreboard's Channel and PAN to
match the data source (Gen7 or a wireless adapter connected to a timer).
To set the scoreboard's Channel and PAN:
1. Remove end cap of one side by removing the screws. Slide out the second

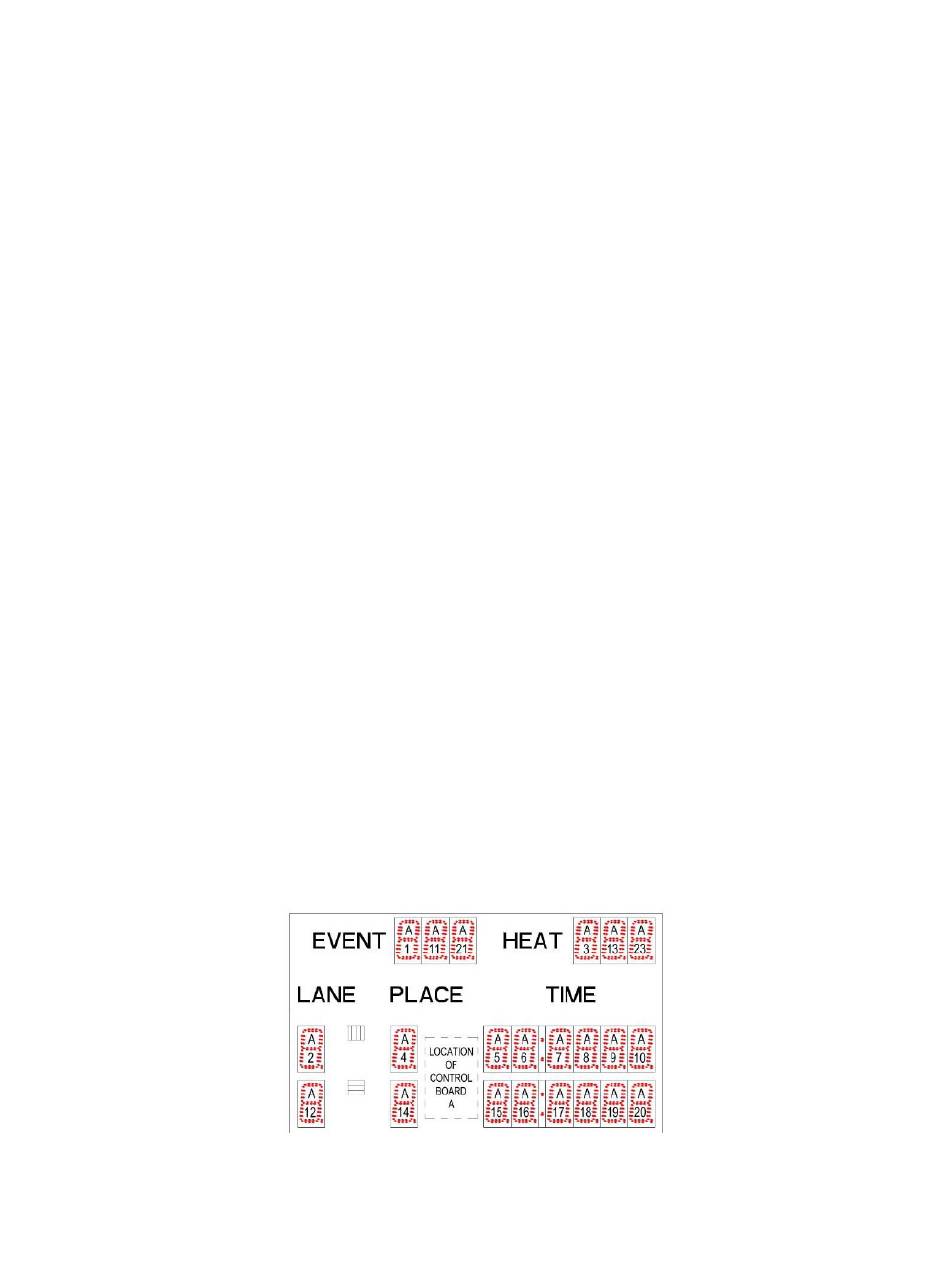

weather cover to expose control board A (see image below). Place all of these
materials in a safe place for later re-installation.
