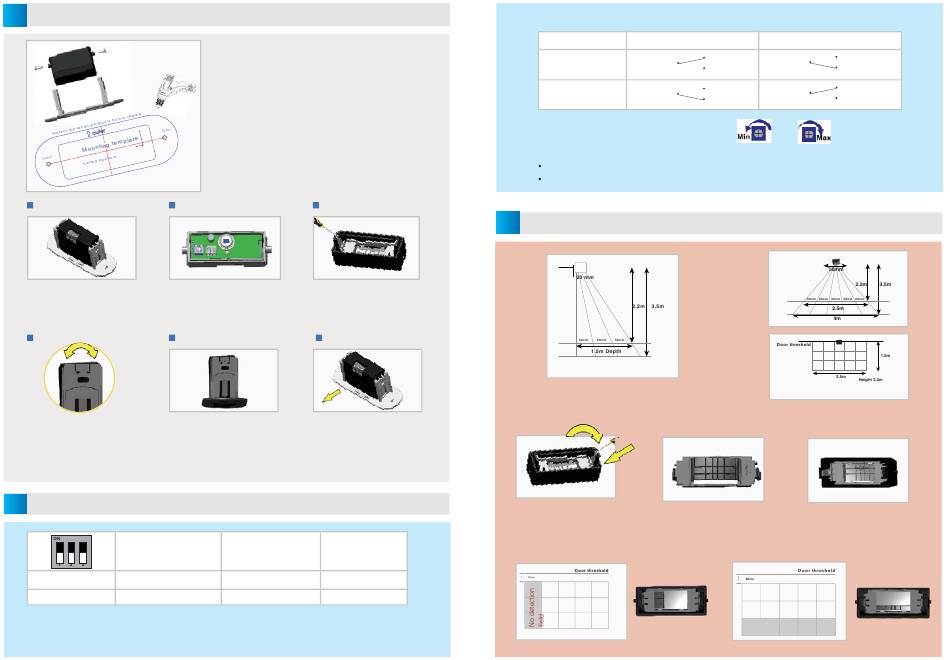

BEA MINI FLY Quick Start Manual page 2

MOUNTING & SETTING
1
Step 1. Step 2.
Remove the aluminum screws on Open the front cover, setting and chec-
each side of MFCA bracket with king the position of dip-switch and poten-
screwdriver. tiometer (take dip-switch&potentiometer
setting for reference.)
Step 4. Step 5.
"+" stands for the detection fi eld
After changing the parameter,
towards person. MFCA maximum angle
close the front cover, installed the
is +4°.
bracket, and tighten two screws on
each side of the bracket after adjust
"-" stands for the detection fi eld
the angle .
towards doors. MFCA maximum angle
is -4°.
2
DIP-SWITCH SETTING
Dip-switch 1
on Strong interference mode
off Factory mode
Working model setting ( Dip-switch 1)
Factory mode: Suit for normal working environment (factory setting).
Strong interference mode: Suit for complex environment with lots of interference source ( this will increase the response time about 10%.)
MINI FLY
Stick the template on the ceiling and cut out the hole.
Clip the sensor on the MFCA with screws. If needed
to change the factory settings, please follow up the
following steps (step1-step6):
Mounting tips:
The sensor must be fi rmly fastened in order to avoiad vibrations.
When mounting the MINI FLY, make sure you adjusting the angle
before tightening the screws.
Always use the aluminum screws to fasten the internal bracket
and the black screws to fi x the sensor.
Step 3.
Install the masking lens if needed,
and get related detection fi eld(
take detection fi eld setting for
reference.)
Step 6.
Outside the door
Connecting the cable, and fi x the sen-
sor to MFCA base with 2 black screws
, notice the mounting direction, and
make sure the position of wire connec-
tor is facing outside the door(MFCA).
Dip-switch 2 Dip-switch 3
Passive output(NC) Hold time:2s
Active output(NO) Hold time:0.5s
Relay model setting (Dip-switch 2)
Relay confi gurations Active mode
COM (3)
DETECTION
COM (3)
NO DETECTION
Adjustment the sensitivity with potentiometer
LED:
When sensor is power on , it fl ash10 seconds.
When sensor detecting movement, LED light up.
3
DETECTION FIELD SETTING
Profi le view
The above drawings show the typical sensing fi eld dimensions.
You can move the sensor's detcion fi eld through change the angle of MFCA bracket ( -4° to +4°) .
Position the screwdriver as shown to To adjust the sensing fi eld , use
remove the masking lens. the masking lens. To tailor the
sensing fi eld, cut the segments.
Sensing fi eld examples:
Sensing fi eld
Passive mode
NO (4)
NO (4)
COM (3)
NC (5)
NC (5)
NO (4)
NO (4)
COM (3)
NC (5) NC (5)
Front view
Flat view
Use the guide pins to insert the
masking lens on the front cover.
Sensing fi eld
No detection fi eld
MINI FLY
