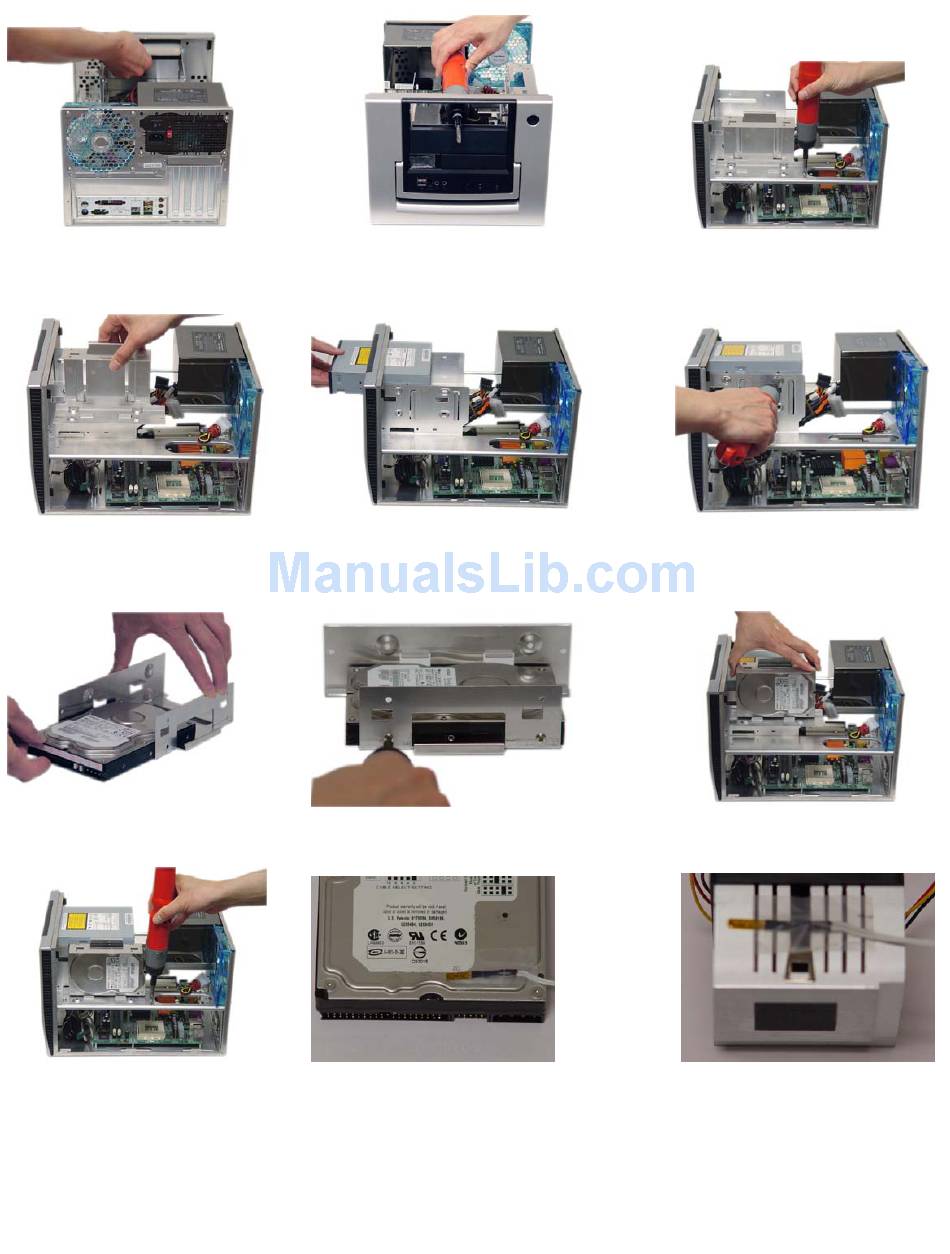

Apevia X-Qpack Installation Manual page 2

10.Then bend it up and down to
detach it.
13.Pull up and take out the HDD
cage.
16.Install 3.5" drives.
19.Screw it up.
11.Once you detach the plate,
Use a screw driver to knock it out.
14.Install 5.25 drives.
17.Screw them in place.
20.LCD sensors: You can tape
temperature sensor on HDD to
get more accurate temperature
of HDD.
12.Unscrew the HDD cage.
15.Screw them in place.
18.Put the HDD cage back.
20.Tape another temperature
sensor on the heat sink of CPU
fan to get CPU temperature.
Then, connect the 4-pin male
connector from the LCD to
power supply 4-pin female
connector.
