Happy Beds Lottie Assembly Instructions Manual

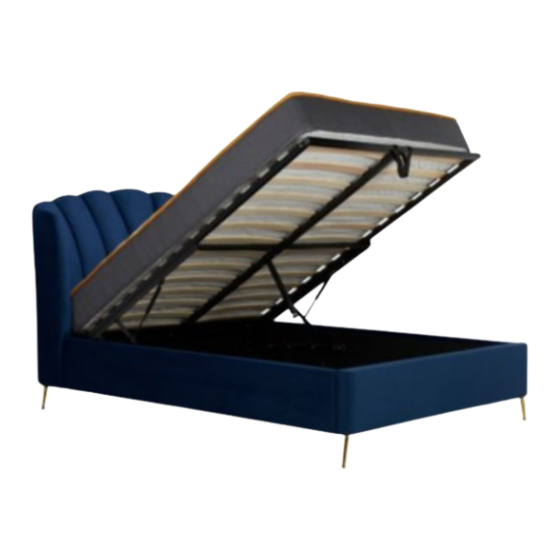

Ottoman bed - double
Hide thumbs

Advertisement

Quick Links

Download this manual
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

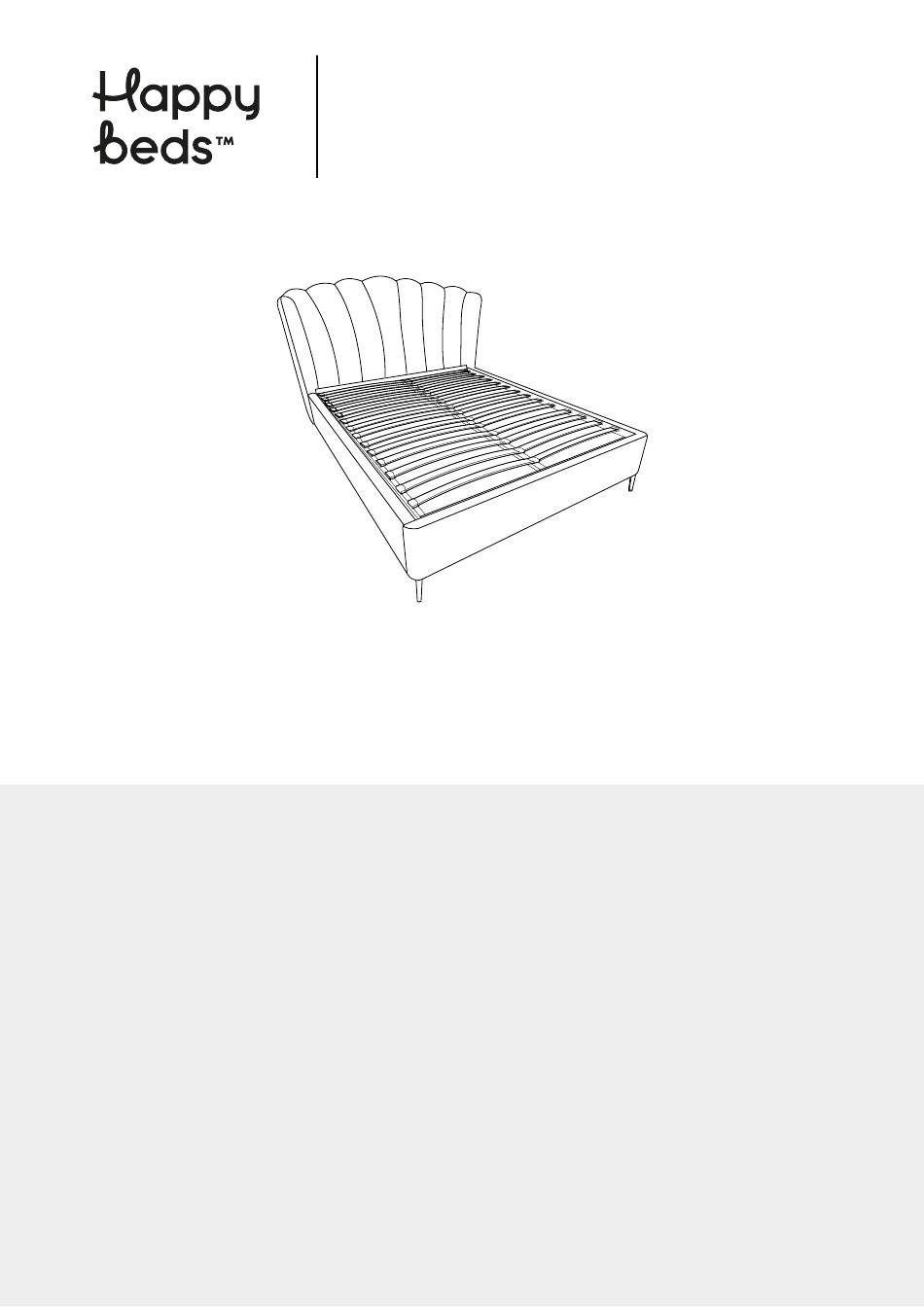

Lottie Ottoman Bed -
Double
Assembly Instructions
.
www.happybeds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lottie and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Happy Beds Lottie

Summary of Contents for Happy Beds Lottie

  • Page 1 Lottie Ottoman Bed - Double Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 Box 1 Footboard (x1) T. Bed Cross Bar(x4) A.Headboard (x1) W.Front and Back Frame Rail(x2) X.Cross Support Bar(x2) I. Legs (x4) H.Slats(x26) Q Slat Caps (x26) R. Centre Slat Caps (x13) G. Support Leg (x1) (X2) U. Pull Strap (x1) O.
  • Page 4 Box 2 B. Side Rails (x2) D. Left & Centre Support Rail (x1) Right Frame Rail (x2) BOX 3 Support Board（X2） Support Board（X2） Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on page 3 &...
  • Page 5 Step 2 Connect 2 legs (I) to 1 headboard (A) with 2 M8 both(J) and 8 screw(Z1), then connect 2 legs (I) to 1 footboard (F) with 2 M8 screws and 8 screw. Please do not use any power tools for this assembly as it will void your guarantee. Step 3 Attach 2x Side Rails to 1x Headboard...
  • Page 6 Step 4: To attach the corner bracket (V)to the footboard(F) and side rails(B)you will need to use hardware parts 4X M6x16mm Bolts Y) and the M4 allen key(C1). To fix the 4 X bed cross bar( T ) to the side rails ,you will need to use hardware 8X M6x16mm Bolts Y) and the M4 allen key(C1).
  • Page 7 Step 6 To attach the front frame rail(W)and back frame rail（W）to the left frame rail (D)and right frame rail(D), you will need hardware parts 4 X M8x16mm Bolts (Z) with the M5 allen key(O). To attach the centre support bar（C) to the front frame rail(W)and back frame rail(W),you will need hardware parts 4X (L) and 4X (K) with the M5 allen key(O) and the spanner(P).
  • Page 8 Step 7 To attach the metal frame(W/C/D) and cross support bar(X)to the gas lift pre-fixed to the side rails, M8x70mm Bolts(A1) , 2 X you will need to use hardware parts 4X M8x45mm Bolts and 6x Nuts with the M5 allen key(O) and the spanner(P). To attach the Baton (B1)TO the footboard(F) you will need to use hardware parts M8x45mm Bolts wıth...
  • Page 9 Important for Ottoman and other gas lift beds Please follow these final steps to ensure the best experience with your new bed • Please ensure the pistons are fitted to the bed frame. • Please place the mattress on top of the bed frame. •...

  • Page 10: General Care And Maintenance

    Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
