Happy Beds Leyton Assembly Instructions Manual

Cabin bed - single
Hide thumbs

Advertisement

Quick Links

Download this manual
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

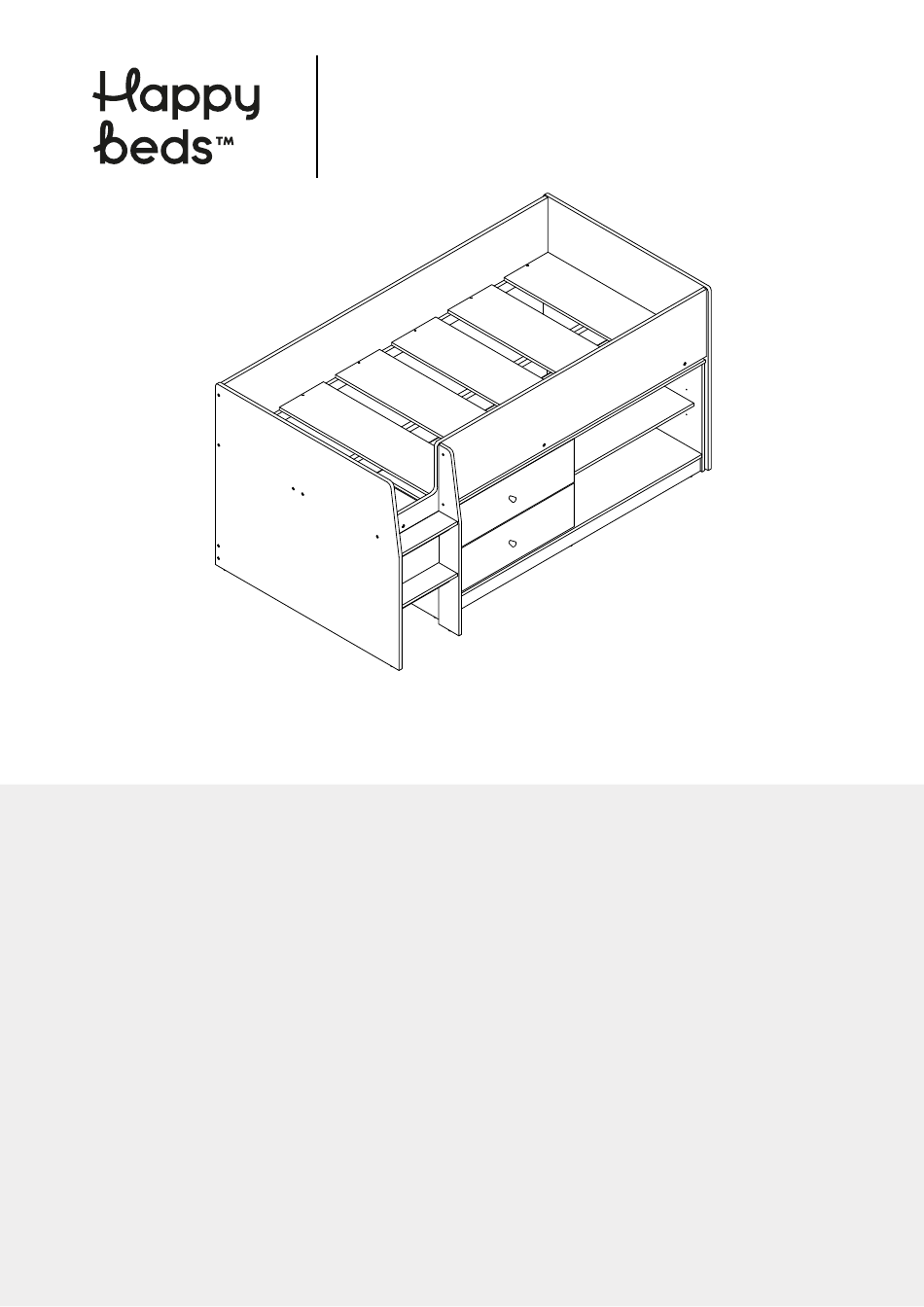

Leyton Cabin Bed - Single
Assembly Instructions
.
.
www.happybeds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Leyton and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Happy Beds Leyton

Summary of Contents for Happy Beds Leyton

  • Page 1 Leyton Cabin Bed - Single Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 Vendor: S000398 Page 3 of 16...

  • Page 4: Part List

    Vendor: S000398 PART LIST HARDWARE LIST Carton 1 of 3: Carton 1 of 3: Part Description Part Description Base Panel CAM NUT 15mm Cabinet Top Panel CAM BOLT Cabinet Left Panel WOOD DOWEL M6 x 25mm Cabinet Right Panel STEEL NUT M6 Cabinet Center Panel CSK SCREW M3.5 x 12mm Cabinet Bottom Panel...
  • Page 5 Vendor: S000398 Insert hardware part (A) and part (B) using a screwdriver (not provided). Insert hardware part (C) using a small mallet (not provided). Insert hardware part (D) using a screwdriver (not provided). Insert hardware part (M) using a small mallet (not provided). Attach hardware part (N) with screw (E) using screwdriver (not provided).
  • Page 6 Vendor: S000398 Attach the bottom back panel (6) to the right panel (2) with screw (L) by using allen key (V) and tighten clockwise. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the back panel (3) and bottom back panel (6) to the left panel (1) and right panel (2) with screw (L) by using allen key (V) and tighten clockwise.
  • Page 7 Vendor: S000398 Fix the ladder step panel (21) and ladder bottom support panel (22) to the ladder right panel (20) by using a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Unlock Lock Fix the ladder step panel (21) and ladder bottom support panel (22) to the left panel (1) by using a...
  • Page 8 Vendor: S000398 Attach the front panel (4) to the left panel (1) and right panel (2) and ladder right panel (20) with screw (L) by using allen key (V) and tighten clockwise. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Insert hardware part (H) to back panel (3) by using allen key (V).
  • Page 9 Vendor: S000398 Insert hardware part (H) to front panel (4) by using allen key (V). Attach support panel (5) to front panel (4) with screw (J) and (K) by using allen key (V) and tighten clockwise. DO NOT use any power tools as this may damage the frame and will invalidate any claim. nsert hardware part (H) to left panel (1) and right panel (2) and fix hardware (P) with screw (I) by using allen key (V) and tighten clockwise.
  • Page 10 Vendor: S000398 Attach base panel (7) with screw (F) by using a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Slat Position First Slat Second Slat Gap 72mm ± Third Slat Gap 72mm ±...
  • Page 11 Vendor: S000398 Fix the cabinet left panel (9) and cabinet right panel (10) to the cabinet bottom panel (12) and cabinet plinth panel (13) by using a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Unlock Lock Fix the cabinet top panel (8) to the cabinet left panel (9) and cabinet right panel (10) and cabinet center...
  • Page 12 Vendor: S000398 Attach cabinet back panel (23) with nail (Q) by using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Fix hardware (R) with screw (E) by using screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 13 Vendor: S000398 Fix hardware (S) and insert cabinet movable panel (14) as shown. Fix drawer left and right panels (16) and (17) to drawer back panel (18) with screw (G) by screwdriver (not provided). Fix drawer support panel (19) to drawer back panel (18) with screw (G) by screwdriver (not provided).
  • Page 14 Vendor: S000398 Insert drawer bottom panel (24) as shown. x 2sets Fix drawer front panel (15) by screwdriver (not provided). Attach hardware part (T) with screw (F) using screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Unlock x 2sets Lock...
  • Page 15 Vendor: S000398 Fix hardware (O) onto the drawer left panel and drawer right panel (16) and (17) using screw (E) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. x 2sets Cover screw hole with sticker (U) as shown.
  • Page 16 Vendor: S000398 Page 16 of 16...
  • Page 17 Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
