- Page 1 ™ Boekel InSlide Out Hybridization Oven Models 241000 and 241000-2 Operating Instructions N2400117 Rev. 4 01/2013...
-
Page 2: Table Of Contents
CONTENTS Page Safety ..........................2 Product Information ......................3 Assembly......................... 3 3.1 Unpacking ........................3 3.2 Installation........................3 Operation......................... 3 4.1 Controls and Indicator Lamps (see Figure 1)..............3 4.2 Setting the Temperature ....................4 4.3 Loading Tray with Slides ....................4 4.4 Loading Tray into Heating Chamber ................ -
Page 3: Safety
Safety The following symbols marked on the equipment mean: Caution: Read these operating instructions fully before use and pay particular attention to sections containing this symbol. Attention: Suivre attentivement les instructions avant l’usage et prêtez une attention particulière aux sections comportant ce symbole. Caution: Surfaces can become hot during use. -
Page 4: Product Information

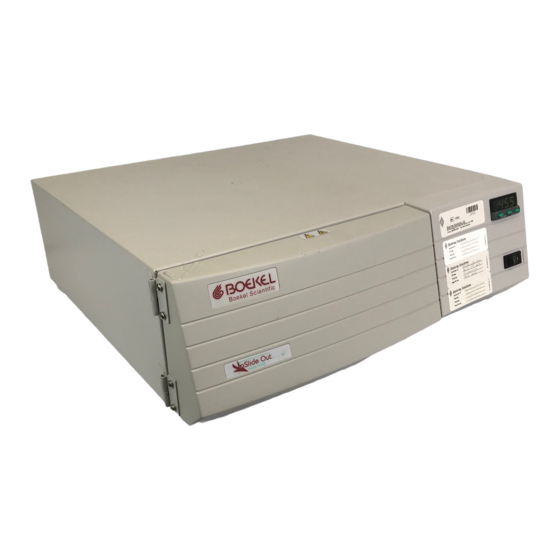

2. Product Information The InSlide Out Hybridization Oven is designed so its sealed tray maintains a humid condition for In-Situ Hybridization applications without the need to use sealed cover slips. Uses include in-situ RNA amplification, reverse transcription reactions and hybridizations, and immunohistochemical reactions. -
Page 5: Setting The Temperature
The heater lamp is on continuously while the Oven is heating up. As the required temperature is approached, it starts to flash. When the unit is controlling at the set temperature, the heater lamp flashes intermittently. Heater Temperature Lamp Display Figure 1 Setting the Temperature The Temperature Controller has three buttons. -
Page 6: Removing Tray From Heating Chamber
Loading Tray into Heating Chamber Once the Tray Assembly is loaded and the slides prepared, the tray can be loaded into the heating chamber. Open the main door, lift the frame, pivot the latch forward (see Figure 5), and slide the Tray Assembly into the Frame Assembly until it is fully seated against the rear of the Frame Assembly (see Figure 6). -
Page 7: Fault Diagnosis
Fault Diagnosis Symptom Possible Cause Action Required 1. Unit does not operate a. Unit not switched on a. Switch on b. Unit not plugged into b. Plug in, switch on power supply c. Fuses blown c. Replace fuses per 8.2 d. -
Page 8: Maintenance And Service
Model 241000-2: 155W Heating Rate: Ambient to 50°C within 20 minutes Maintenance and Service All Boekel laboratory products are designed to comply with IEC1010-1. No routine maintenance is required. Cleaning Disengage power cord prior to cleaning. If a spill occurs, use appropriate clean up procedures as required for radiation or biohazard control. -
Page 9: Replacement Of Fuses
A Decontamination Notice must be completed, signed by the user, and returned to Boekel Scientific prior to receiving the RGA number. Please be sure to mark the outside of the return goods package with this RGA number to...
