MessKonzept FTC300 Operating Manual

Gas analysis using thermal conductivity measurement
Hide thumbs Also See for FTC300:
Table of Contents

Advertisement

Quick Links

Download this manual

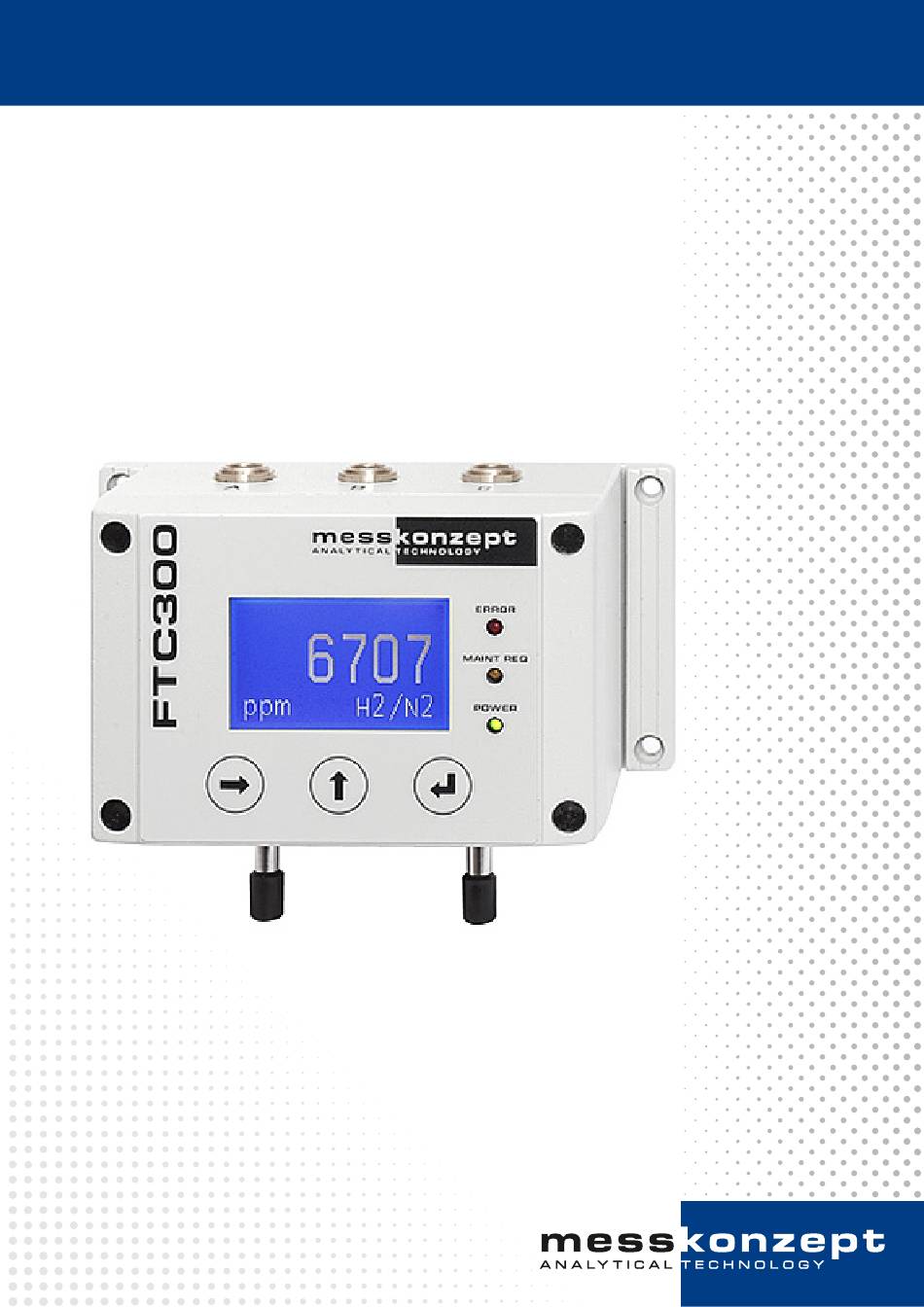

Operating Manual
FTC300
Gas analysis using thermal
conductivity measurement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTC300 and is the answer not in the manual?

Questions and answers

Julian
February 12, 2025

What does fault error 8 mean while doing calibration of the FTC300

0

Related Manuals for MessKonzept FTC300

Summary of Contents for MessKonzept FTC300

  • Page 1 Operating Manual FTC300 Gas analysis using thermal conductivity measurement...
  • Page 2 All information of technical nature and particulars of the product and its use (including the information in this manual) are given by Messkonzept in good faith. However, it is acknowledged that there may be errors or omissions in this manual. Images and drawings may not be in scale. For the latest revisions to this manual contact Messkonzept or visit www.messkonzept.de...
  • Page 3 Page 2 of 58 Quick Installation Guide For quick installation of the FTC300 we recommend to read the following chapters of this manual: • Chapter 1 "Operator Safety": Important warnings, saftey instructions and intended use. • Chapter 3 "Assembly of the Instrument": Mounting, pneumatic and electric connection. Also see Chapter 12 "Appendix: Dimensional Drawing"...

  • Page 4: Table Of Contents

    3 Assembly of the Instrument 3.1 FTC300 Detector Unit ........
  • Page 5 10.5 Dimensions ........11 Appendix: Menu Tree of the FTC300...

  • Page 6: Operator Safety

    This icon draws attention to application errors or actions that can lead to safety risks including the injury to persons or malfunctions, possibly even destruction of the device. This icon indicates an additional function or hint. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 7: Warning Notices

    • Never open the housing of the FTC300, especially because of the loose glass balls. When the device had been opened it may not work safely with flammable gases.

  • Page 8: Safety Instructions

    The protective earth connection must be made before all other connections. Any interruption in the protective earth can cause danger. • Pay regard to the local regulations and circumstances regarding electric installations. • Repairs may only be done by Messkonzept. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 9: Intended Use

    (2.01.1FB180619MPL1) for registration of your measuring task, if your intended use does not comply with intended use described above. Based on the information given in the questionnaire Messkonzept will examine the measuring task and possibly authorize it. File name:...

  • Page 10: Principle Of Measurement

    Cross-sensitivity is the sensitivity of the measurement on other gases than the measured component. Perturbation-sensitivity means the sensitivity of the measurement on other influences than the gas-composition, e.g. the gas pressure. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...
  • Page 11 The FTC300 contains a thermal conductivity sensor to analyze the quantitative composition of gas mixtures. The measurement is based on the heat transfer between a heat source and a heat sink.
  • Page 12 Table 2.1: Measuring ranges of typical gas compositions for analysis with the FTC300. The FTC300 must not be used with explosive gases. Flammable gases such as H may only be used in devices filled with glass balls. A gas mixture of a flammable gas with an inert gas in a mixing ratio such, that it is still inflammable for any amount of...
  • Page 13 The gas pair can be switched through the control panel or via the RS232-interface. Gas pairs labeled “Yes“ in Table 2.1 are commonly used. Gas mixtures labelled “On request“ can also be implemented upon request. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 14: Assembly Of The Instrument

    Figure 3.1: FTC300 Detector Unit 3.2 Installation of the FTC300 The FTC300 is designed for wall fastening. The four mounting holes are shown in Figure 3.2. M4 cylinder head bolts are suitable. Please remember to keep additional space for adequate assembly of gas hoses and cables (see Chapter 12 "Appendix: Dimensional Drawing"...

  • Page 15: Gas Ports

    3.3 Gas Ports On the bottom of the FTC300 housing two tubes with 6mm outer diameter for gas connection are located. They are labeled with “GAS IN “ and “GAS OUT“.

  • Page 16: Electrical Connectors And Ground

    Figure 3.3: Electrical connector pin assignments of the three connectors on the FTC300 The FTC300 has three three plug connectors as shown in Figure 3.3. Further information on the function of each contact is given in Table 3.1. The cables (712, IP67) with molded connector plug and a length of two meters (five meters available on request) are part of the purchased parts pack-...
  • Page 17 Relay 2 isolated contact; max. 30V, 0.5A blue Common Relay 3 isolated contact; max. 30V, 0.5A Common Relay 3 isolated contact; max. 30V, 0.5A Table 3.1: Connecting pin assignment of connectors A, B, C File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 18: Requirements For Electrical Connectors

    The FTC300 is a device with protection class III. Relay contacts and inputs should only be operated with safety extra low voltage (SELV;4kV). The power supply has to comply with the PELV specifica- tion (protective extra low voltage) according to EN 60204-1.
  • Page 19 The serial interface allows operation of the instrument and the display and storage of measurement data with the SetApp program. More information and a link to download the software can be found at www.messkonzept.de. If you plan to develop or use your own software solutions for communication via the RS-232 interface, you may need more detailed information on the available parameters, etc.

  • Page 20: The Front Panel

    ENTER / Terminate Key UP / Selection Key (Toggle MGM Mode) (Gas Selection in MGM-Mode) Figure 4.1: Front view schematic of the FTC300 front panel 4.1 Display 4.2 LED Indicators System Alarm Indicator (red) The flashing red LED indicates a system error. System error indication depends on the configuration of the “Alarm matrix“.

  • Page 21: Keys

    MGM list. Press <ENTER> repeatedly until the desired gas pair (e.g. ”H2/N2”) is selected. Pressing the <RIGHT> key will deactivate the quick access mode again. See Section 8.2.4 "Multi Gas Mode List (only with MGM-option)" for more information on the MGM list. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 22: Switching On The Device

    58.3 Set: 63.0 °C Figure 5.1: warm up screen of the FTC300 The warm up screen shows the current block temperature during warm up in the center of the screen (see Figure above). The target value of the block temperature, 63 C for the standard version or 70 C for the high temperature version, is shown in the bottom line of the screen.

  • Page 23: Operation Screen

    Diagnosis Setup Figure 5.3: main menu of the FTC300 Press the <UP> key to get access to the top level main menu. The main menu is the origin of the menu tree that gives access to the submenus, see Chapter 11 for the complete menu tree.

  • Page 24: Calibration

    For two point calibrations it is preferable to use the gas concentrations at the lower and upper end of your measuring range. 6.1.1 Calibration gas purities and flooding time Messkonzept uses gases with the following purities for calibration: File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 25: Set Offset Gas Concentration

    These gas purities are selected such that the devices comply with the specifications for the smallest measuring ranges feasible with the FTC300. Messkonzept recommends gases of same purity for calibration on-site. For differing individual requirements, opt for an appropriate gas purity.

  • Page 26: Offset Calibration

    After quitting the calibration, you are asked to apply process gas again, giving you time to restore your typical process measurement environment while error warnings are deactivated and relays stay frozen (see Section 8.3.5 if you wish to set up relays to be frozen during calibration). File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 27: Gain Calibration

    Instead of using toxic or explosive gases for calibration, substitute gases may be used. A substitute gas has (at a certain concentration) the same thermal conductivity as the test gas it is substituting, such it can also be used for the calibration instead. Please contact Messkonzept for details on possible substitute gases for your application.

  • Page 28: Diagnosis

    H2/N2 Figure 7.1: parameter menu for advanced diagnosis The configuration of the FTC300 is defined by a list of internal parameters. The “Parameter“ menu gives read-only access to these parameters. This may help an experienced user to diagnose mal- functions caused by wrong settings. The parameter menu allows you to scroll through the entire parameter list.

  • Page 29: Errors

    Separate the device from the process pneumatically (both gas inlet and gas outlet) and remove the power supply from the device. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 30: Setup

    Output Set. Setup Expert Set. H2/N2 Figure 8.1: FTC300 setup menu The “Setup“ menu contains four submenus: • “Instrument Setup“: select the measured gas pair, the units and the T90 response time of the exponential filter • “Relay Setup“: define the conditions to trigger the relays •...

  • Page 31: Instrument Setup

    P76 (see Section 8.5.1) sets the number of digits after the decimals point between 1 and 4 when the display unit is set to Vol.%. The resolution in ppm is always 1 ppm. All internal calculations of the FTC300 are done in ppm.Values retrieved through the RS-232 interface will always be in ppm with 1ppm resolution.

  • Page 32: Response Time Setup

    Note that the response time in your process depends greatly on the upstream volume before the FTC300. Shorter and/or thinner tubing will benefit response times. The T90-time is the time, in which a sudden change of the measurand (e.g. the gas concentration) reaches 90% of it’s final value.

  • Page 33: Multi Gas Mode List (Only With Mgm-Option)

    Devices supporting the Multi Gas Mode (MGM) can measure (in succession) up to 16 different bi- nary gas mixtures following your wishes when ordering the FTC300. From the list of all available binary gas mixtures a list for the short-key access from the operational screen, further called “List for MGM“, can be edited.

  • Page 34: Relay Setup

    R1 Hyst. ESC/OK R1 Mode OFF ------------ ------------ ESC/OK Figure 8.7: relay mode setup Relay 1 can be operated in different modes described below. Selecting “Relay 1“ and pressing <ENTER> gives access to the different modes: File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 35: Relay 1 Threshold

    ------------ Setup Expert Set. H2/N2 Common Relay R1 Mode L/H R1 Hyst. R1 Mode *** R1 Threshold set: 1.00000 Failsafe R1 Hyst. new: 1.00000 Cal. active ESC/OK ESC/OK ESC/OK Figure 8.9: Relay 1 hysteresis configuration File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 36: Relay 1 Failsafe / Not Failsafe

    “Not Failsafe“ means that the relay is open with no error pending and closes when an error appears. Press <ENTER> to switch between “Failsafe“ and “Not Failsafe“. The change is made effective by pressing <RIGHT> three times to mark “OK“ and confirmed with <ENTER>. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 37: Relay 1 Active/Frozen During Calibration

    Press <ENTER> to switch between “Calibration frozen“ and “Calibration active“. The change is made effective by pressing <RIGHT> two times to mark “OK“ and confirming with <ENTER>. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 38: Relay 2

    “Aux“. The ”Maintenance”-Alarm is always indicated by the yellow flashing LED on the front panel. The FTC300 is still functioning but should be put into maintenance in the near future. ”Aux H/L” and ”Aux L/H” can be used to monitor an external signal that is routed to the analog input of the device.

  • Page 39: Common Relay

    YES“ and “C. Alarm NO“. Confirm with “OK“. If one or more errors included in the Alarm matrix by “C. Alarm YES“ are pending, the common relay triggers. In the default factory settings all internal errors described in Appendix A are included in the common relay. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 40: Analog Output Setup

    Figure 8.14: Analog output setup menu The FTC300 is equipped with three analog outputs. “Current Loop“ is an isolated current output. “Analog Out 1“ and “Analog Out 2“ are not DC-isolated outputs with an output range from 0 to 10 V.
  • Page 41 If requested in your order, the current loop output can be changed into a 0 V to 10 V voltage output. With this option the 0 mA to 10 mA mode(s) should be used, then 0mA correspond to 0 V and 20 mA correspond to 10 V. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 42: Analog Output 1

    Several parameters can be routed to the analog output. In the “AOut-Parameter“-menu you can select the signal you wish to route to the analog output by entering the value number. If you wish to route the linearized measuring signal, select 1.00000. Please contact Messkonzept for a list of paramters available in your device.

  • Page 43: Analog Output 2

    19.500mA. Measure the resulting real current at the output (e.g. with a multimeter) and enter the measured value in the third display line, then confirm with “OK“ and <ENTER>. After successful adjustment the multimeter should show a value of 19.5mV. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 44: Expert Setup

    P009 Figure 8.20: Parameter change in expert mode The configuration of the FTC300 is represented by an internal list of parameters. These param- eters govern all settings and functions of the device. In the expert-menu’s parameter list press <ENTER> to scroll forward through the list and backwards by pressing <UP>. Some parameters cannot be changed (e.g.

  • Page 45: Access Modes

    This menu provides three reset functions and the possibility to save the current calibration parameters to the Factory Settings: • “Restart only“: Restart of the software • “Factory Set.“: Resets all parameters to the factory set values File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 46: Test Of Relays, Analog Outputs And Connections

    With these values the device will not work properly. The correct parameters (contact Messkonzept) have to be written to the device again, see Section 8.5.1 or the manual of SetApp which you can find on www.messkonzept.de.
  • Page 47 Note! All test signals are permanently on until leaving the “I/O Test“ menu. It is the responsibility of the expert to assure that the I/O test does not interfere with the subsequent connected systems and processes in an unintended way. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 48: Appendix: System Errors

    Some issues can be resolved through remote maintenance. If the error persists you might be requested to send the FTC300 back to Messkonzept. Please pay attention to these points when sending the device: •...
  • Page 49 CAL VAR ER 1000ppm exceeding max. calibration gas flooded the allowed range device properly? Please verify your calibration setup and repeat the calibration. If the error persists, send the device to Messkonzept with description of error. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...
  • Page 50 TC-signal above TC MAX ER 7000mV Messkonzept with description specified range of error. Error routed from input “DIN“ Check the surveyed external EXT. ERROR Signal <14V (0V=no error, unit. +24V=error) Table 9.1: Description of System Errors File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 51: Appendix: Specifications

    Error due to change of flow at 80 l/h 10 l/h Error due to change of pressure < 1 % of smallest range per (800 hPa < p < 1200 hPa) 10 hPa Table 10.1: Specification of TC measurement File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 52: Electrical Specifications

    Typical current draw: 500 mA Safeguard: PELV (Protective Extra Low Voltage) Digital Interface Type: RS-232 Baud rate: 19.2 kbaud Data: 8 bit Parity: None Stop: Flow control None Reference potential: ground Table 10.2: Electrical Specifications File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 53: Permissible Conditions Of The Sample To Be Measured

    IP 65 (if cables are plugged and/or all unused jacks are sealed using protective caps) Table 10.4: Environmental conditions 10.5 Dimensions Dimensions: Depth: 85 mm Width: 144 mm Height: 80 mm without connectors Weight: max. 1800 g Mounting: Wall mounting Table 10.5: Dimensions File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...

  • Page 54: Appendix: Menu Tree Of The Ftc300

    Appendix: Menu Tree of the FTC300 In the menu tree, an overview over all menus of the FTC300 firmware is given. Most operations you will do on your device will begin from the operational screen, marked “Start“ on the top left corner of the menu tree (see following pages).
  • Page 55 Page 54 of 58 This page is intentionally left blank. File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...
  • Page 56 Start A1 A2 Er Operation A1 A2 Er Apply Calibration 0.30 0.30 Process Gas Diagnosis Actu. 0.00 Setup H2/N2 H2/N2 ESC/OK MGM only R1 R2 Er Operation H2 in N2 Offset Cal. Stability Sampling 10s Save Calib. Gain Calibration Calibrate 0.30 Apply Gas Targ.
  • Page 57 Instr. Set. Current Loop I/O Mode 4-20mA 4-20mA (Err) Relay Set. Analog Out 1 Cal. active C-> IOutMin 0-20mA Output Set. Analog Out 2 ------------ C-> IOutMax 0-20mA (Err) Expert Set. Adjust Loop ESC/OK ESC/OK 0-20mA Corr. Const. I-Out I/O Mode 4-20mA C->...

  • Page 58: Appendix: Dimensional Drawing

    Page 57 of 58 Chapter 12 Appendix: Dimensional Drawing File name: FTC300 Manual 1.09KD140704CWI1V05.pdf...
  • Page 60 Messkonzept GmbH Analytical Technology Niedwiesenstr. 33 60431 Frankfurt Germany Telefon +49 69 53056444 +49 69 53056445 info@messkonzept.de www.messkonzept.de Managing Director Dr. Axel-Ulrich Grunewald Place of jurisdiction Frankfurt HRB 49940 VAT ID: DE211207233...
