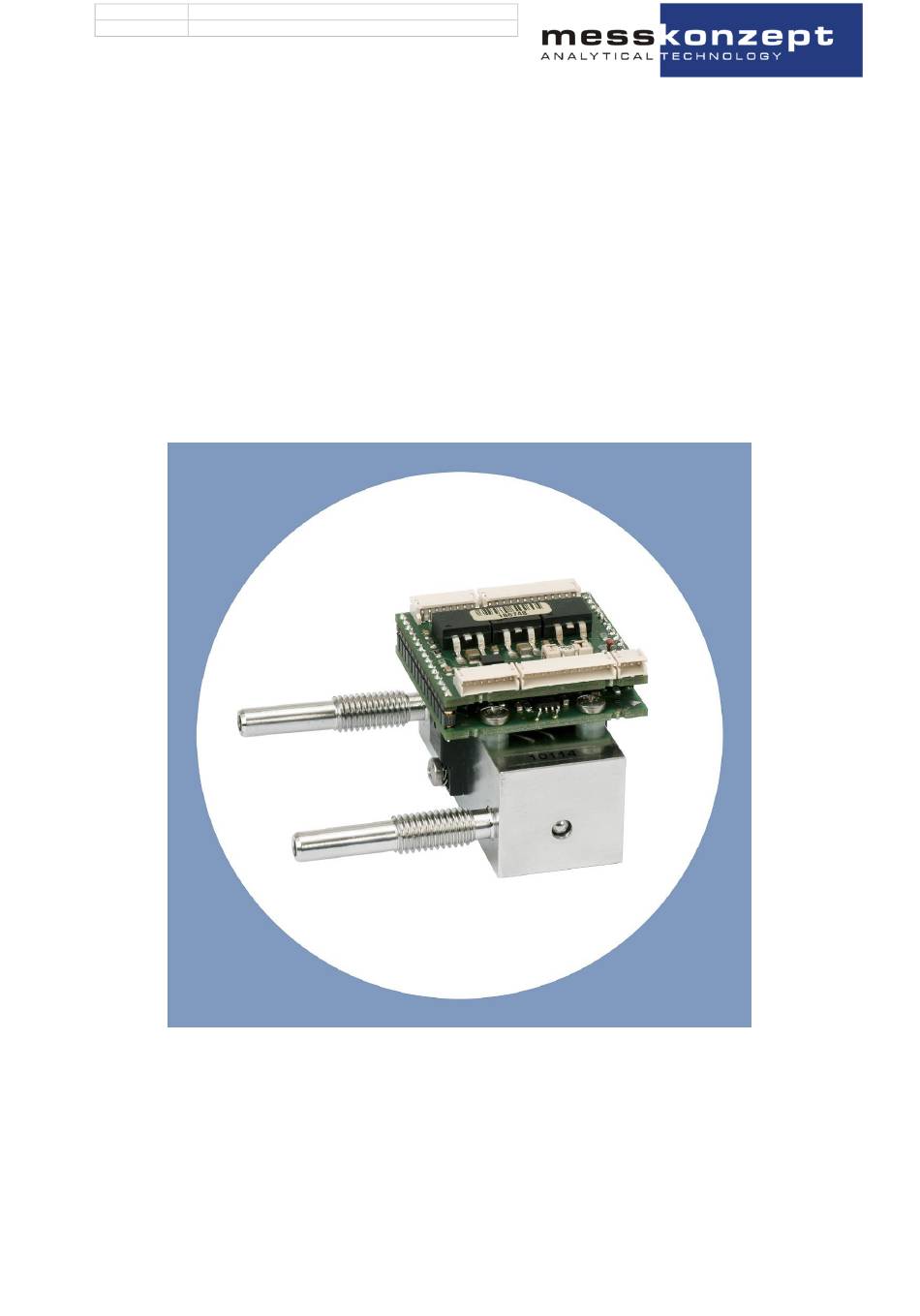

- Page 1 Filename: FTC200_OEM_Englisch_1.09KD180125MPL1V05.docx Seite 1 von 10 FTC200-OEM Fast Thermal Conductivity Analyzer Operating Manual 1.09KD180125MPL1V05© MessKonzept GmbH...
-
Page 2: Table Of Contents
Scope of Delivery ..................5 Electrical Connection ..................6 Pneumatic Connection .................. 7 Mounting ....................7 Thermal Insolation..................8 Communication with the FTC200-OEM ............8 9.1. Remote Control via Serial Communication ............8 9.2. SetApp2.0 ....................9 Specifications .................... 10... -
Page 3: Intended Use
Filename: FTC200_OEM_Englisch_1.09KD180125MPL1V05.docx Seite 3 von 10 Warning! “Warning” draws attention to application errors or actions that can lead to safety risks including the injury to persons or malfunctions – possibly even destruction of the device. Note! “Note” indicates an additional function or hint. 1. -
Page 4: Description
4 von 10 2. Description The FTC200-OEM is a highly precise and stable Thermal Conductivity Detector (TCD). It is designed for the use as an OEM detector. Since it is not equipped with housing it has protection class 00 and no electro- magnetic shielding. -
Page 5: Emc
Filename: FTC200_OEM_Englisch_1.09KD180125MPL1V05.docx Seite 5 von 10 3. EMC The product FTC200-OEM does not meet EMC requirements without proper shielding and housing. Means for EMC must be performed by the customer. 4. Measuring gases and ranges Measu- Smallest Carrier ring Basic range... -
Page 6: Electrical Connection
Filename: FTC200_OEM_Englisch_1.09KD180125MPL1V05.docx Seite 6 von 10 6. Electrical Connection Connector X5: Pin 01 – GND=Ground Pin 02 – Power +24VDC = Power supply electronic, +24Volts Pin 03 – Heater +24VDC = Power supply heater, +24Volts Pin 04 – Heater GND Pin 05 –... -
Page 7: Pneumatic Connection
7 von 10 7. Pneumatic Connection Looking at the FTC200-OEM on the side of gas tubes with the PCB up, the gas inlet is on the right-hand side. Gas inlet and outlet tubes – as well as the body - are stainless steel (LF316ti). The outer diameters of the tubes are 6mm. -
Page 8: Thermal Insolation
8 von 10 8.1. Thermal Insulation The integration the FTC200-OEM into a custom housing is mandatory, since the device should be prevented from draught and touch for specified performance. It may not be exposed to airflow, e.g. from fans. The use of additional insolation is optional, but maybe necessary for ambient temperatures below 0°C. -
Page 9: Setapp2.0
Control via Serial Communication”. 9.2. SetApp2.0 Messkonzept offers a software for the operation of our devices. It enables monitoring of measuring values and managing the settings of the FTC devices. Especially for the OEM series the SetApp2.0 makes calibration, setting thresholds and other things much easier. The SetApp2.0 can be found on our website in the download section. -
Page 10: Specifications
Filename: FTC200_OEM_Englisch_1.09KD180125MPL1V05.docx Seite 10 von 10 10. Specifications Dimensions with connectors; B=64mm, H=40mm, weight D=75mm; ~ 350g Power supply 24V DC (20V to 30V), 700mA RS232 - Baudrate / Data 19200 / 8bit Ambient temperature range -10°C to 50°C, depending on mounting and thermal insulation Linearity <...
