Swegon DVCe Installation, Commissioning Maintenance

DVCe
Installation – Commissioning – Maintenance
20130915 Art. No. 1545192

Accessory

Regulator unit:
REG. Combination unit with damper and sound attenuator.
Duct Cover:
DVCT 1. For enclosure of the regulator unit and the spiral
connection duct.
Base:
DVCT 2. For installation of the air diffuser on a floor.
Decorative top:
DVCT 3. Removable top board in different materials and
dimensions. Can be used when duct cover is not utili-
zed. Please contact your nearest sales representative for
further information.

Installation

Secure the air diffuser to the wall with screws using the
angle brackets supplied with the diffuser. Screw the base
into place on the bottom of the unit. Secure the tele-
scopic duct cover with screws into place on the wall using
the wall mounting brackets supplied. The aluminium side
strips are used for concealing the screws.
The regulator has a circular connection spigot with a
rubber seal. Press the spigot into the inlet socket of the
terminal. See Figure 1.

Commissioning

The measurement tapping is positioned on the one side
of the air diffuser behind the aluminium strip. The K-factor
(COP) is given on the product identification label on the
diffuser to the side of the measurement tapping. Swegon
recommends that you use the REG regulator unit for
adjusting the airflow. See Figure 2.
To regulate how the air is supplied to the room, turn the
air diffuser's Varizon discs to make the air to flow in the
®
desired direction. A straight air discharge can be achieved
by taking the disc out of the diffuser, turning it 180° and
reinserting it back into place. See Figure 3.

Maintenance

The air diffuser can be cleaned, if necessary, using luke-
warm water with dishwashing detergent added or by
vacuum cleaning using a brush nozzle. The duct system
can be accessed by removing the front panel and the
inspection cover of the air distribution panel. See Figure 2.

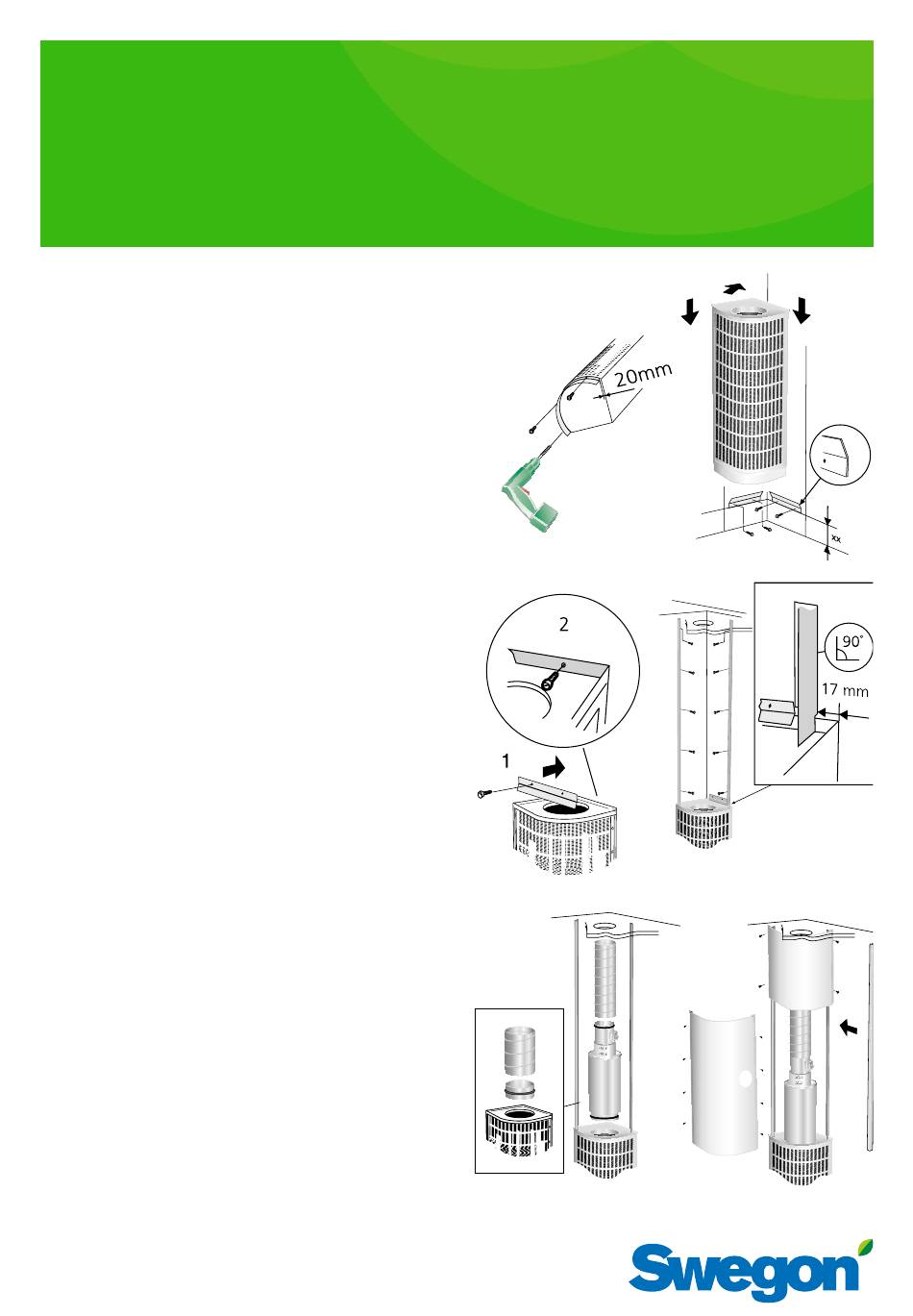

Figure 1. Installation.
