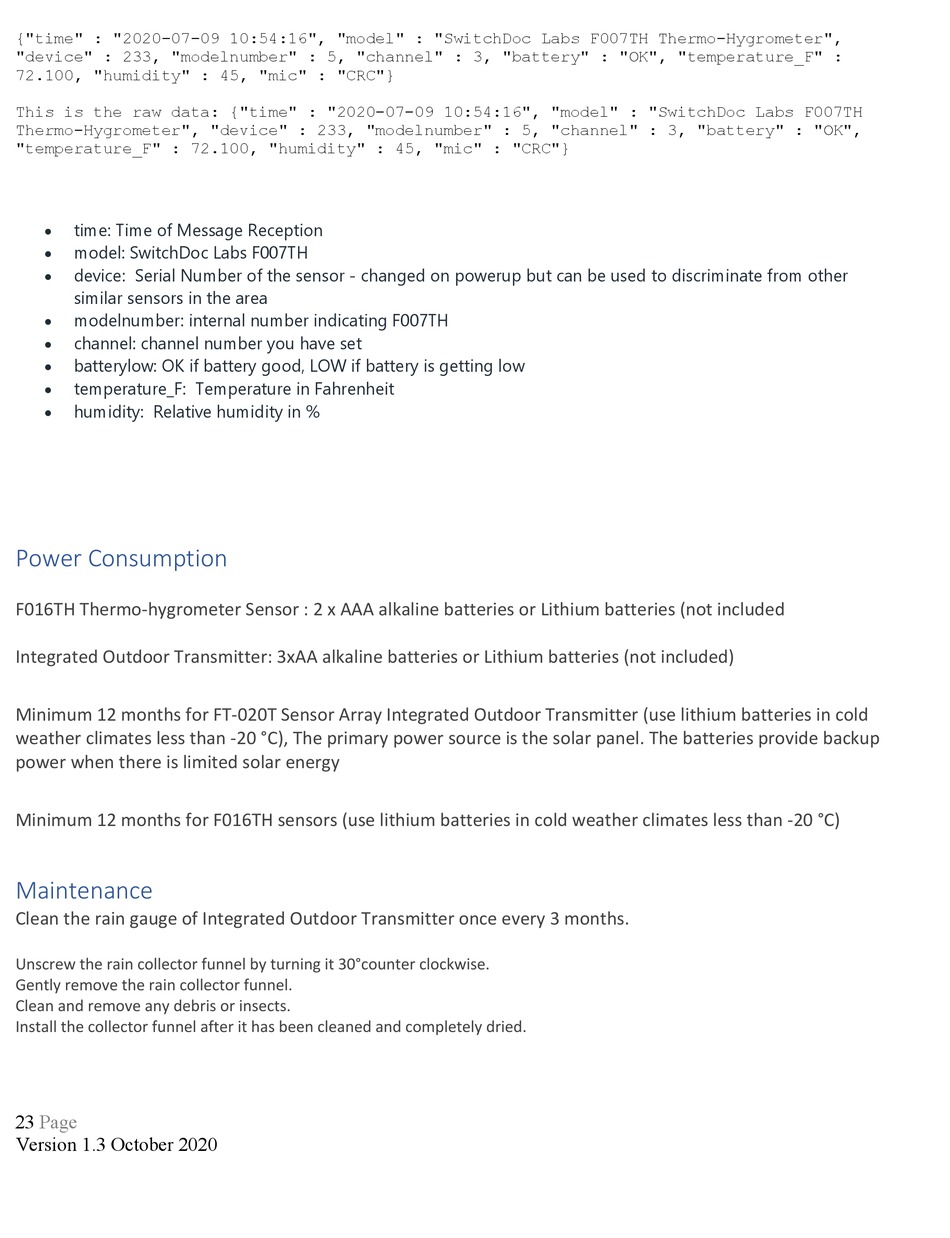

Power Consumption; Maintenance - SwitchDoc Labs WeatherRack2 Installation Manual

{"time" : "2020-07-09 10:54:16", "model" : "SwitchDoc Labs F007TH Thermo-Hygrometer",
"device" : 233, "modelnumber" : 5, "channel" : 3, "battery" : "OK", "temperature_F" :
72.100, "humidity" : 45, "mic" : "CRC"}
This is the raw data: {"time" : "2020-07-09 10:54:16", "model" : "SwitchDoc Labs F007TH
Thermo-Hygrometer", "device" : 233, "modelnumber" : 5, "channel" : 3, "battery" : "OK",
"temperature_F" : 72.100, "humidity" : 45, "mic" : "CRC"}
time: Time of Message Reception
•
model: SwitchDoc Labs F007TH
•
device: Serial Number of the sensor - changed on powerup but can be used to discriminate from other
•
similar sensors in the area
modelnumber: internal number indicating F007TH
•
channel: channel number you have set
•
batterylow: OK if battery good, LOW if battery is getting low
•
temperature_F: Temperature in Fahrenheit
•
humidity: Relative humidity in %
•

Power Consumption

F016TH Thermo-hygrometer Sensor : 2 x AAA alkaline batteries or Lithium batteries (not included
Integrated Outdoor Transmitter: 3xAA alkaline batteries or Lithium batteries (not included)
"
Minimum 12 months for FT-020T Sensor Array Integrated Outdoor Transmitter (use lithium batteries in cold
weather climates less than -20 °C), The primary power source is the solar panel. The batteries provide backup
power when there is limited solar energy
"
Minimum 12 months for F016TH sensors (use lithium batteries in cold weather climates less than -20 °C)

Maintenance

Clean the rain gauge of Integrated Outdoor Transmitter once every 3 months.
Unscrew the rain collector funnel by turning it 30°counter clockwise.
Gently remove the rain collector funnel.
Clean and remove any debris or insects.
Install the collector funnel after it has been cleaned and completely dried.
23 Page
Version 1.3 October 2020
