AMX RDM-3SWM Installation Sheet

The RDM-3SWM Triple Switch Module is a 20 A triple general purpose
relay module built for compact and economical switching of incandescent
lamps, switched low-voltage transformers, switched fans and electrical
outlets. It is designed for use with the RDA series of enclosures, in an AMX
Lighting™ modular digital dimming system. The RDM-3SWM uses positive
air gap type relays. This module's 120, 240, and 277 VAC ratings are CE,
UL, and C-UL approved.
Mounting
points

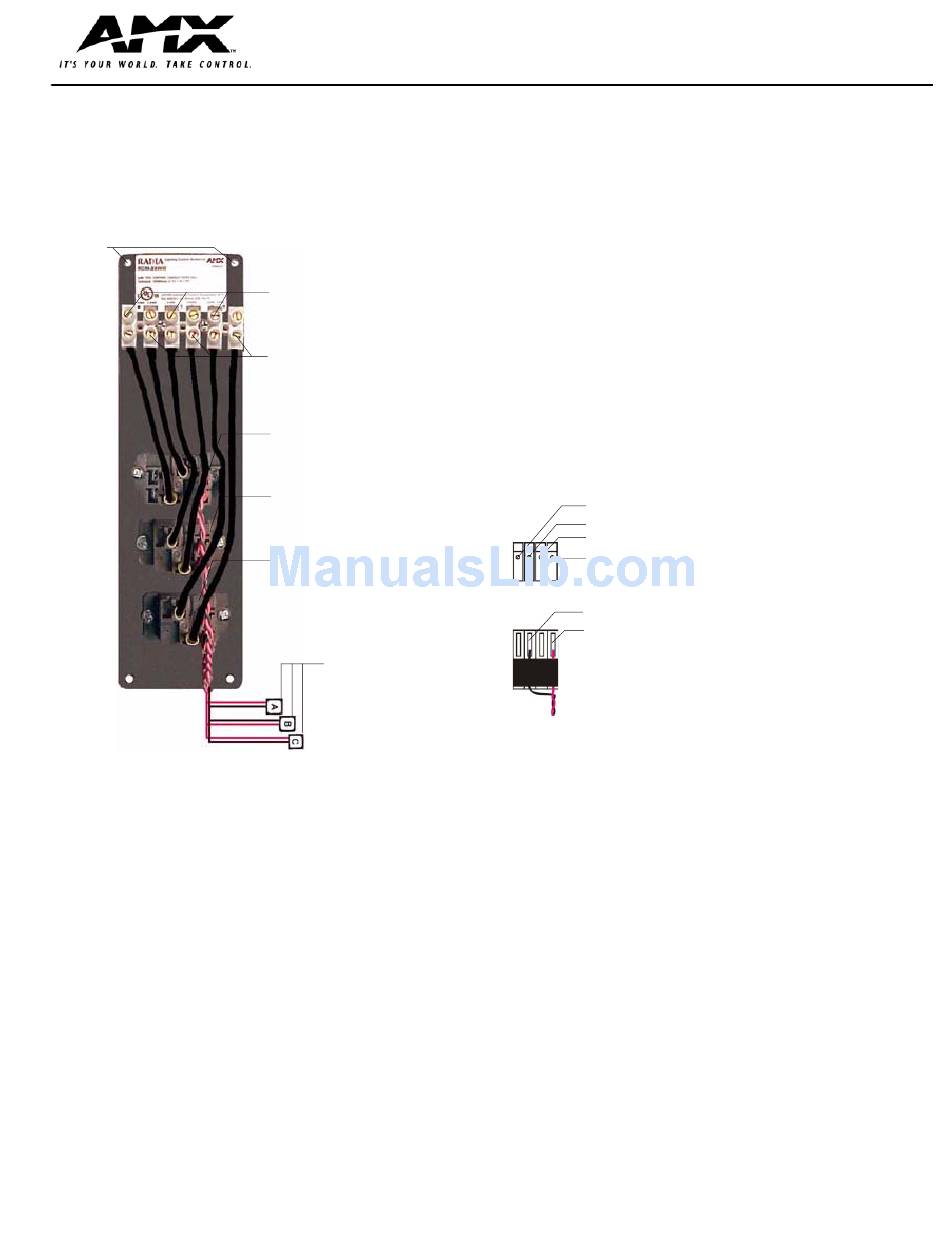

FIG. 1
RDM-3SWM Triple Switch Module

RDM-3SWM UL and C-UL Ratings (per circuit)

• General purpose: 2400 W
• Resistive: 2400 W
• Ballast: 2400 W
• Motor: 277 VAC, 1 hp

Suggested Switched Loads

• Incandescent
• Low-voltage
• Motors
• Switched outlets
• Fluorescent
Line in (hot)
Load out
Relay A
Relay B
Relay C
Low-voltage control wiring:
4-pin connection to AMX
Lighting master controller
RDM-3SWM

Specifications

• Non-phase dependant
• Use wires rated at 75°C (167°F)
• Torque terminals to 7 in-lbs. (0.8 N/M)
• Max. wire size: 10 AWG (4 mm²)
• Wire stripping length: 0.28" (7 mm)
• Weight: 0.95 lbs. (0.43 kg)
• BTU/hr: 5 each (15 total)
• Control current: 85 mA per relay (255 mA total) @ 12 VDC
Caution: Pre-Installation Notes
• All Class 1 wiring must be connected to proper terminals.
• All control wiring must be connected to proper terminals.
• Disconnect power while installing or connecting the unit.
• Keep top and bottom air bents clear at all times.
• Test loads for shots before connecting.
• Use low voltage wires with a 300 volt rating or greater.
• Use field installed copper conductors.
• All electrical ratings are for continuous duty.
• For indoor use only.
• This module may require extra power from the AXlink connection or an
external power supply connected to the control card.
Connecting the RDM-3SWM to the AMX Lighting Master
Pin 4 (GND)
Pin 3 (RLY)
Pin 2 (DIM)
Pin 1 (+12 V)
RDM-3SWM 4-pin module connector
3 (-)
1 (+)
4-pin plug from RDM series module
NOTE: The 4-pin plugs from the module connector to
the 4-pin connector on the master (black plug cover facing up).
FIG. 2
RDM-3SWM connections
Installation Sheet
Triple Switch Module 20A
