- Page 1 HS8004F Heat Sink Quick Installation Guide V1.00...

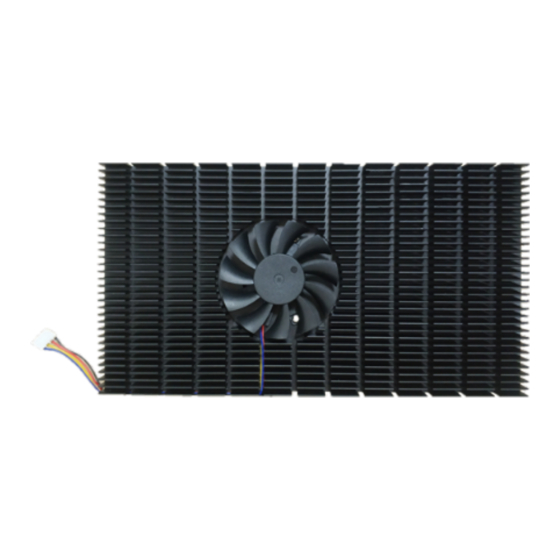

- Page 2 Kit Contents Ÿ 1x HS8004F HS8004F Hardware Front View Back view...
- Page 3 Hardware Requirements • The HS8004F is an optional cooling accessory for the SSD7104 controller (SSD7104– Sold Separately) HS8004F Setup On the rear of the SSD7104, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD7104.
- Page 4 Align the HS8004F with the SSD7104 controller, and refasten the 6 screws that were removed in step 1 Carefully insert the HS8004F fan power cord into the fan power port of the SSD7104. Successful installation:...
- Page 5 HighPoint Controller 4x M.2 Port to PCIe 3.0x16 NVMe SSD7104 RAID Controller Resources Product reference page: https://highpoint-tech.com/USA_new/cs-cable_ac.htm Support SSD7000 Series RAID Controllers: SSD7104: https://highpoint-tech.com/USA_new/series-ssd7104-overview.htm NVMe FAQ & Troubleshooting Information: https://highpoint-tech.com/USA_new/support-faq-nvme.htm...
- Page 6 Customer Support If you encounter any problems while utilizing the HS8004F， or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: https://highpoint-tech.com...
