AMX RDM-DPSM Dimensional Drawing

REV ECN
A 3253 RELEASED
REL APPR REL DATE REV APPR
NOTICE: This drawing is the
DRAWN RBF 11/29/01
property of AMX Corporation.
All information contained herein
ENGR SERV
that is not generally known
ENGINEER
shall be confidential except
to the extent the information PROD ENGR
has been previously established.
MATL SUP
This drawing may not be copied,
reproduced, or used as the basis QUALITY
for manufacture or sale without
THIRD ANGLE
written permission.
PROJECTION
REVISIONS
DESCRIPTION DATE APPROVED
1/7/02
T M

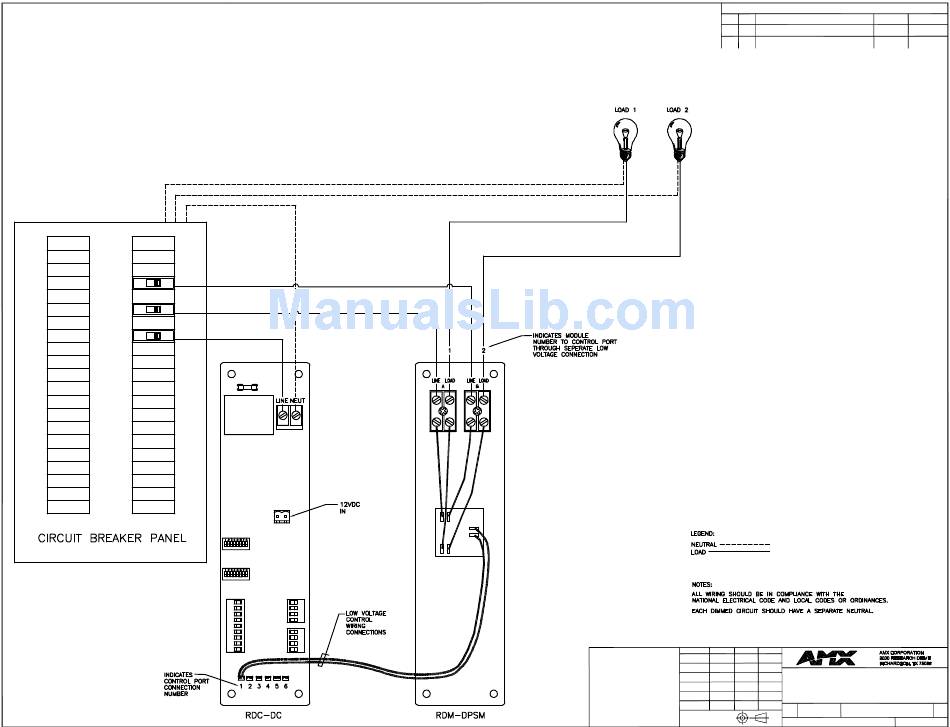

LIGHTING MODULE WIRING
RDM-DPSM
DOUBLE POLE SINGLE THROW MODULE
DUAL 20 A
SIZE SCALE: DWG. NO. REV.
LM-DPSM-1
D NONE A
LM-DPSM-1 SHEET 1 OF 1
