AMX RDM-HSW Wiring Diagram

REV ECN
A 3253 RELEASED
REL APPR REL DATE REV APPR
NOTICE: This drawing is the
RBF 11/29/01
property of AMX Corporation. DRAWN
All information contained herein
ENGR SERV
that is not generally known
ENGINEER
shall be confidential except
to the extent the information
PROD ENGR
has been previously established.
MATL SUP
This drawing may not be copied,
QUALITY
reproduced, or used as the basis
for manufacture or sale without THIRD ANGLE
written permission.
PROJECTION
REVISIONS
DESCRIPTION DATE APPROVED
1/7/02
T M

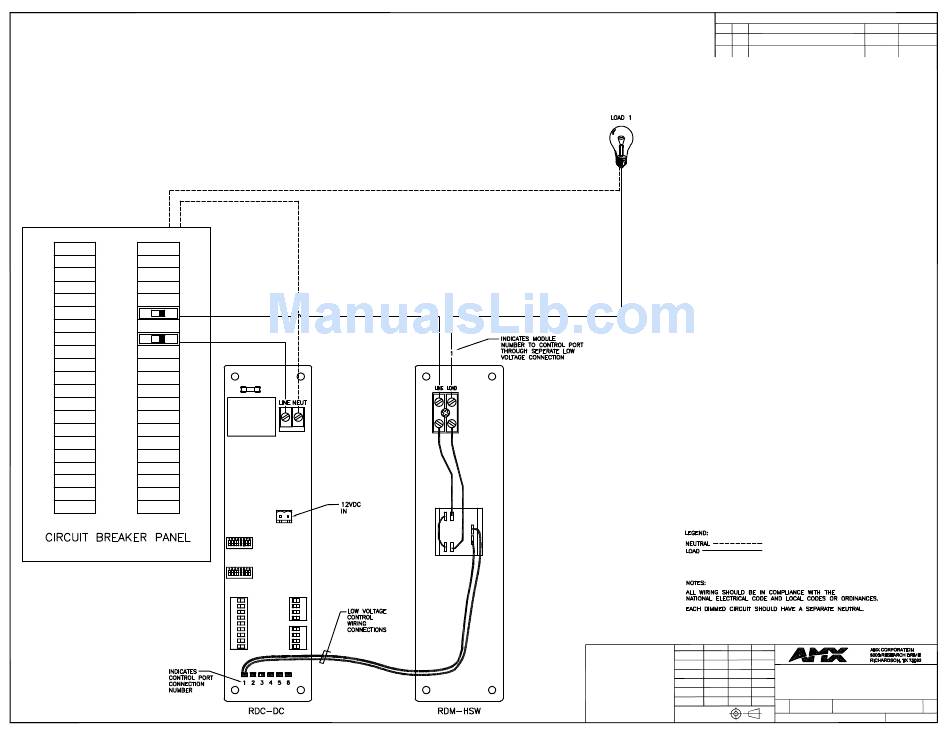

LIGHTING MODULE WIRING
RDM-HSW
HEAVY DUTY SWITCH MODULE
2400 W
SIZE SCALE: DWG. NO. REV.
NONE LM-HSW-1
D A
LM-HSW-1 SHEET 1 OF 1
