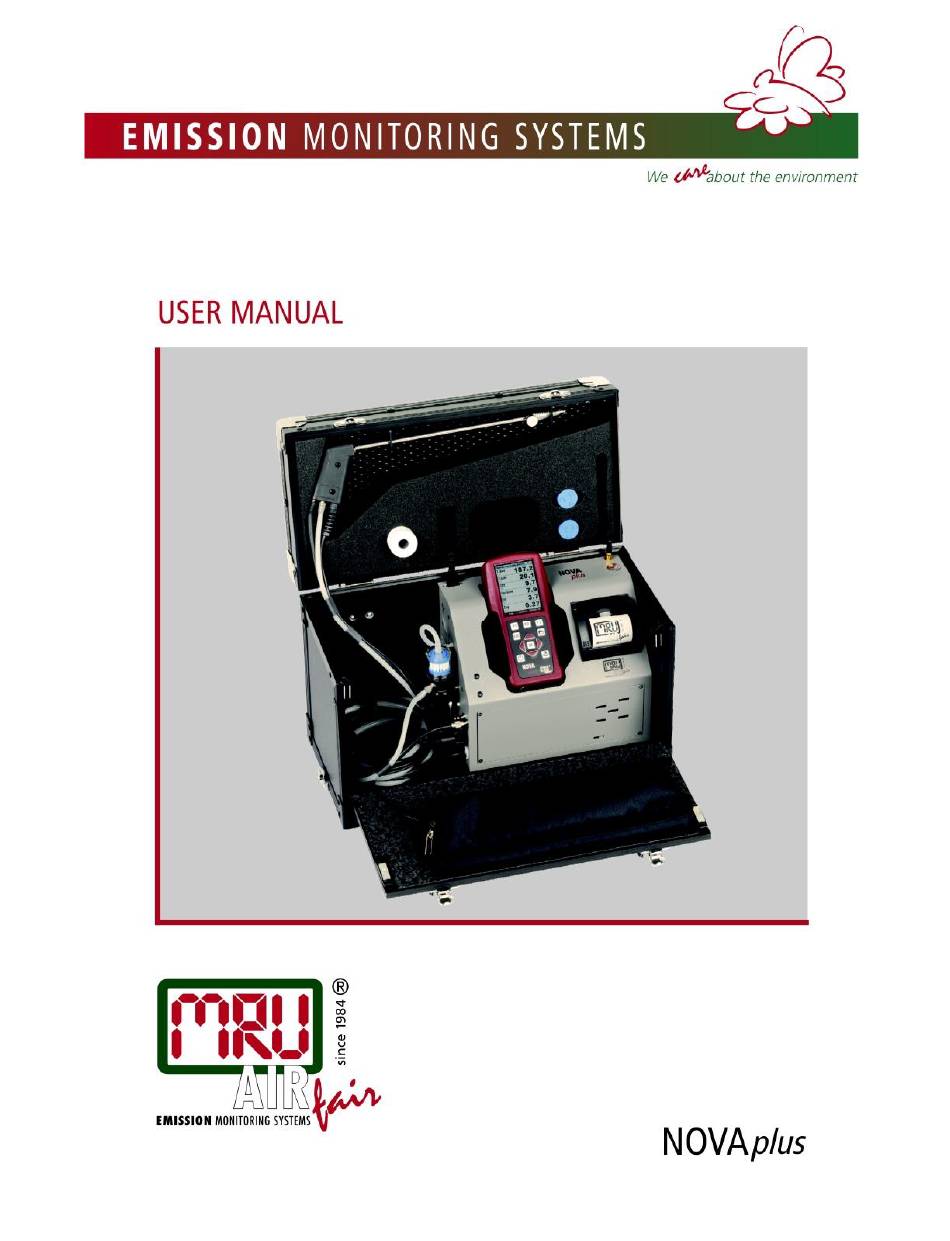

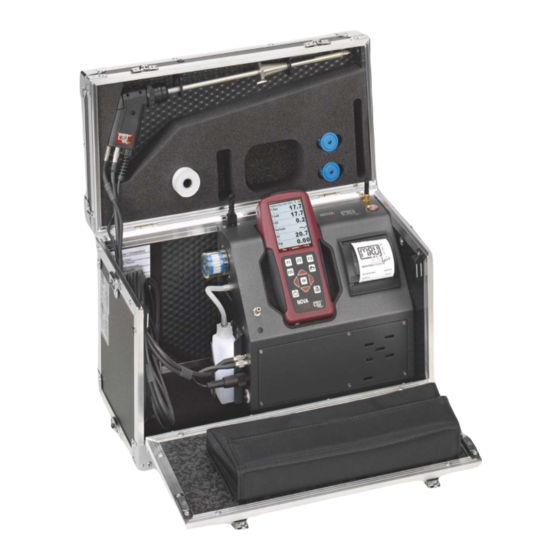

  • Page 1 MRU Instruments, Inc. USER MANUAL NOVAplus...

  • Page 2: Table Of Contents

    1 CONTENT CONTENT ………………………………………………………………………………………………………... 2 INTRODUCTION …………………………………………………………………………………………………. 8 The NOVAplus ............................8 The company MRU GmbH ........................8 Important general information (EN 50379) and VDI 4206 ..............8 Important information about the users/operation manual ..............9 SAFETY INFORMATION ........................9 Safety regulations ..........................
  • Page 3 MRU Instruments, Inc. USER MANUAL NOVAplus Gas sampling probes.......................... 20 OPERATING THE ANALYZER…………………………………………………………………………………21 The Display ............................21 Keyboard ............................. 21 Reset and Blink codes ........................22 Menu configuration ..........................22 FIRST USE OF THE INSTRUMENT…………………………………………………………………………...23 Analyzer ready for operation ......................23 Analyzer settings ..........................
  • Page 4 MRU Instruments, Inc. USER MANUAL NOVAplus Connectors and leak tightness ......................33 Power ON and zeroing ........................33 Zeroing with the 3-gas-NDIR bench ....................34 9.10 Repeating the zeroing......................... 34 HOW TO TAKE A MEASUREMENT…………………………………………………………………………..36 10.1 Selection of the measurement program .................... 36 10.2...
  • Page 5 MRU Instruments, Inc. USER MANUAL NOVAplus 11.4.1 Import of Sites ..........................50 11.4.2 Export of Sites ..........................51 11.4.3 Export of Flue Gas Measurements ....................51 11.4.4 Export of Differential Pressure Measurements ................51 11.5 Measurements in the data memory ....................52 11.5.1...
  • Page 6 MRU Instruments, Inc. USER MANUAL NOVAplus 14.6 Fuel type list ............................72 14.7 Errors ..............................73 14.7.1 Error diagnosis regarding the measuring device ................73 14.7.2 Error diagnosis regarding the condensate separator ..............74 14.8 Declaration of confirmity ........................75...
  • Page 7 Note any damage to packaging and/or goods on Packing List and have it signed by the shipper’s agent prior to accepting the shipment. Submit damage claim to MRU immediately. NOTE: Damage claims not received by MRU within 3 days of receipt of shipment will not be accepted. Important notice! This high quality electronic analyzer utilizes batteries that discharge even when the analyzer is not in use.

  • Page 8: Introduction

    2.2 The company MRU GmbH Your analyzer is produced by the MRU GmbH in Neckarsulm Germany (founded in 1984), a medium sized com- pany that specializes in developing, producing and marketing high quality emission monitoring analyzers. MRU GmbH produces a wide range of instruments, from standard analyzers up to tailor made industrial analyzers.

  • Page 9: Important Information About The Users/Operation Manual

    Electrochemical sensors are by their operating principle not only sensitive to the gas they are intended for, but for other gases as well. This cross sensitivity is compensated by MRU for the typical application of flue gas analysis. However, unusual high concentration levels of single gas components might lead to a reduced measurement accuracy of other gas components and to a temporary change of the sensitivity of sensors, which may require several hours recovery time.

  • Page 10: Guideline For Li-Ion Batteries

    2.10 RETURNED GOODS Packing regulation of 12.07.1991 If your local waste facility does not except MRU packing materials for disposal, you may return it to MRU or our local sales representative. Packing materials returned to MRU must be returned prepaid.

  • Page 11: Measurement Principal

    MRU Instruments, Inc. USER MANUAL NOVAplus 3 MEASUREMENT PRINCIPAL The analyzer draws a sample of the flue gases from the duct using a built-in gas pump through the probe is cleaned and dryed using condensate separator with built-in filter and analyzes the extracted gas with electro- chemical sensors.

  • Page 12: Gas Flow Diagram With Gas Cooler

    MRU Instruments, Inc. USER MANUAL NOVAplus 3.2 Gas flow diagram with gas cooler Position Description Position Description Gas temperature Gas pump Gas inlet Filter Differential pressure - Nozzle Differential pressure + Capillary tube Draft Flow sensor Fresh air inlet NDIR bench...

  • Page 13: Analyzer Description

    USER MANUAL NOVAplus 4 ANALYZER DESCRIPTION 4.1 Remote control unit (RCU) front Display Keypad 4.2 Remote control unit (RCU) Connectors - top Cover SD-card reader (only by using a MRU-SD- CARD we can assure the compatibility of all analyzer functions) USB port...

  • Page 14: Remote Control Unit (Rcu) Bottom Side (Option)

    MRU Instruments, Inc. USER MANUAL NOVAplus 4.3 Remote control unit (RCU) bottom side (option) Pressure connection 1 Pressure connection 2 (Diff. pressure) AUX connector Temperature connection 1 Temperature connection 2 4.4 Remote control unit (RCU) back side Eyes for shoulder strap...

  • Page 15: Base Unit Condensate Separator

    MRU Instruments, Inc. USER MANUAL NOVAplus 4.5 Base unit condensate separator Disconnect the hoses at the gas entrance port (3) and the gas exit port (1). Lift the condensate separator upwards out of the mounting brack- et next to the base unit.

  • Page 16: Base Unit With Condensate Separator

    MRU Instruments, Inc. USER MANUAL NOVAplus 4.6 Base unit with condensate separator Aerial Condensate separator ON-/OFF key button LED condensate separator Built-in speed printer Star filter Gas outlet Gas inlet after condensate separator Connector T-gas Connector T-Ambient air (combustion air)

  • Page 17: Connectors Depending On The Options (Condensate Separator)

    MRU Instruments, Inc. USER MANUAL NOVAplus 4.7 Connectors depending on the options (condensate separator) Connector Models 1 pressure sen- gas inlet draft / pressure + sor standard pressure - TRGI gas inlet draft / pressure + TRGI Option pipe tests...

  • Page 18: Base Unit With Gas Cooler (Option)

    MRU Instruments, Inc. USER MANUAL NOVAplus 4.8 Base unit with gas cooler (option) Aerial LED condensate container ON-/OFF key button Fan gas cooler Built-in speed printer Outlet for condensate Gas outlet Star filter Connector T-gas Connector T-Ambient air (combustion air)

  • Page 19: Connectors Depending On The Options (Gas Cooler)

    MRU Instruments, Inc. USER MANUAL NOVAplus 4.9 Connectors depending on the options (gas cooler) Connector Models 1 pressure sensor draft / gas inlet pressure + standard pressure - TRGI draft / gas inlet TRGI pressure + Option pipe tests pressure -...

  • Page 20: Accessories

    5 ACCESSORIES 5.1 Gas sampling probes The NOVAplus is available with different probes, both with fixed and exchangeable probe tubes. A complete list of available probes can be found in the current price list of this analyzer. Below are two different probe types:...

  • Page 21: Operating The Analyzer

    MRU Instruments, Inc. USER MANUAL NOVAplus 6 OPERATING THE ANALYZER 6.1 The Display All information required to operate the analyzer is displayed as shown below. Menu bar Function key bar Display panel Menu Measurement value,… Zeroing active SD-Card in the slot...

  • Page 22: Reset And Blink Codes

    RCU Flashes every one second: Software update active: Abort by using the ON/OFF-button 6.4 Menu configuration The NOVAplus organizes all available actions in three main menus: · à all tasks for the measurement programs of the analyz- Menu Measurement er.

  • Page 23: First Use Of The Instrument

    MRU Instruments, Inc. USER MANUAL NOVAplus 7 FIRST USE OF THE INSTRUMENT After the analyzer has been inspected and is ready for start up it can be switched on and personalized settings can be entered. These settings can be changed at any time.

  • Page 24: Switch-On Protection

    MRU Instruments, Inc. USER MANUAL NOVAplus 7.2.1 Switch-ON protection If activated and if ON key is pressed (possibly inadvertently), then the message: „3 seconds OK key press “dis- plays 7.2.2 Print-out settings In the main menu “EXTRAS“item analyzer settings: print-out settings.

  • Page 25: Measurement Settings

    (nicht unter +5 °C!) Probe heating as needed / with Probe heating is always switched on with mains, if mains NOVAplus is connected to mains and is switched Temperature heating °C or °F Change the unit for temperature in all screens Pressure unit hPa/PA, hPa, Change the unit for pressure in all screens.

  • Page 26: Setting Time And Date

    MRU Instruments, Inc. USER MANUAL NOVAplus 7.3 Setting time and date Edit Change the marked number Move the cursor to the next position Back to Extras menu 7.4 Configuration of measurement program (Flue gas measurements) Select one of the 6 configurable measurement programs.

  • Page 27: Setting The Co Ppm Limit Values

    MRU Instruments, Inc. USER MANUAL NOVAplus 7.4.1 Setting the CO ppm limit values The CO ppm limit can be adjusted in the window „Measuring program selection“. Select one of the available programs (arrow up/down) then press the F1 key. The CO-ppm limit value can be adjusted in 100 ppm steps between 300 ppm and 4.000 ppm / 10.000...

  • Page 28: User Definable Fuel Types

    MRU Instruments, Inc. USER MANUAL NOVAplus Add / remove a fuel type Exit the fuel type list Change O2-ref with the keys First select a program then press OK – then press the F2 key in the window “Fuel type selection”. All available fuel types are displayed: they can be added to or removed from the short list by using the F1 key.

  • Page 29: Configuration Of The Measurement Window (Display Content)

    MRU Instruments, Inc. USER MANUAL NOVAplus Modify fuel type parameters Modify fuel type name Text input see chapter 14.1 Save the new fuel type name 7.4.4 Configuration of the measurement window (display content) Start the measuring program – once you are inside the measuring window press the key.

  • Page 30: Configuration Of The Zoom Function

    MRU Instruments, Inc. USER MANUAL NOVAplus 7.4.5 Configuration of the zoom function For each measurement program you have 3 zoom windows with two selectable values for each window. Change Zoom window 1..3 Change measuring values Save measuring window and save configuration 7.4.6 Change measurement program names...

  • Page 31: Maintenance And Cleaning

    Cleaning of the probe and the probe tube · after every measurement: remove gas sampling tube from the NOVAplus, so that the hose can dry · after longer disuse load battery first and afterwards approx. all 4 weeks 8.2 Service and Maintenance...

  • Page 32: Preparation For Each Measurement

    9 PREPARATION FOR EACH MEASUREMENT 9.1 Power supply The analyzer can be used with: 1. with the internal MRU battery (provided) 2. with the MRU battery charger (provided) External equipment may only be connected while the analyzer is switched off! 9.2 Auto Off...

  • Page 33: Operation Temperature

    Check all push on connectors for proper fit. · Check all hoses, hose connectors and the condensate separator. The NOVAplus provides an automatic test to check the probe and internal system for leaks (see chapter 14.5) 9.8 Power ON and zeroing Press the ON key at the base unit.

  • Page 34: Zeroing With The 3-Gas-Ndir Bench

    MRU Instruments, Inc. USER MANUAL NOVAplus The unit will display a self-test after zeroing (Leak tight test, sensor test, internal flow monitoring and battery sta- tus). The unit will display any error (for example defect sensor) that is detected during the self-test. With the ESC button you can delete any displayed error messages and then reach the measuring menu.
  • Page 35 MRU Instruments, Inc. USER MANUAL NOVAplus Zeroing Start zeroing...

  • Page 36: How To Take A Measurement

    USER MANUAL NOVAplus 10 HOW TO TAKE A MEASUREMENT Every NOVAplus is capable of making a complete flue gas measurement. How to perform this is described below. The description of other optional available measurement programs can be read in the appendix or in additional flyers.

  • Page 37: Measured Value Display

    MRU Instruments, Inc. USER MANUAL NOVAplus Positioning the probe in the core flow: Insert the probe pipe slowly into the stack and position your probe pipe when you have reached the maximum flue gas temperature that is displayed (see temperature maximum value on the display – in this case 45°C).

  • Page 38: Co Purging (Optional)

    MRU Instruments, Inc. USER MANUAL NOVAplus 10.4 CO purging (optional) If the CO ppm limit is reached the analyzer will start the CO purging pump to protect the CO sensor from getting saturated with CO. Other values will not be affected while the CO sensor is being purged.

  • Page 39: Annular-Gap Measurement Program

    MRU Instruments, Inc. USER MANUAL NOVAplus In the right bottom corner of the display the countdown from 30 to 0 will be displayed. Once the countdown is completed the measurement will stop automatically. The per 30 seconds determined Loss Values will be market in the measurement print out.
  • Page 40 USER MANUAL NOVAplus Back to the measurement menu without saving For this measurement MRU offers an annular gap probe (Part no. 56352) which can be connected to the conden- sate separator of the analyzer. Optional you can connect the annular gap probe with an adaptor (Part No. 11652) to the tip of the probe pipe.

  • Page 41: Test Program

    MRU Instruments, Inc. USER MANUAL NOVAplus 10.6.3 Test program This test program is made for testing facilities that will test these analyzers with test gases and don’t need to make any modifications. In this program you will only see measured values and no calculated values at all.

  • Page 42: Clipboard

    USER MANUAL NOVAplus 10.7 Clipboard The NOVAplus gives the possibility to set the momentary values into a clipboard during effecting and continuing the measurement. Later on, the values can be brought back from the clipboard to the measuring window in order to print them out or / and to save them.

  • Page 43: Storage The Measuring Results

    The function of the data memory is explained in chapter 11. 10.8.1 Input of soot and T-boiler In fact, the NOVAplus has no soot measurement, but you can nevertheless insert, save and print soot data. Before using this function it must be switched-ON:...

  • Page 44: Printing The Measurement Results

    MRU Instruments, Inc. USER MANUAL NOVAplus 10.9 Printing the measurement results Measurement results can be printed using the printer button. Printer line feed is activated when pressing the printer button outside of a measuring screen. All measurement values which are activated in the measurement screen will be printed (values which are selected more than once will only be printed once).
  • Page 45 MRU Instruments, Inc. USER MANUAL NOVAplus Rearrangement of the differential pressure sensors: To be able to use the pressure sensors in the RCU (only Comfort Model) as well as the pressure sensors in the base unit an selection will take place using the arrow keys:...

  • Page 46: Differential Temperature Measurement

    11.1 Organisation of the data memory Basis of the data memory of the NOVAplus is a set of sites stored in the device. Every site exists of an unique site number and 8 freely usable text lines which can have, e.g., the address, customer name etc.

  • Page 47: Site Administration

    MRU Instruments, Inc. USER MANUAL NOVAplus 11.3 Site administration In the menu item “Sites administration” you are able · view all data of the stored sites · create new sites · change date of existing sites · delete sites Attention: In the device new created sites and changes in the data of a site will not transmit to the PC back 11.3.1 View and search sites...

  • Page 48: New Entry And Change Of Sites

    MRU Instruments, Inc. USER MANUAL NOVAplus · Select the line for searching (site no. No., line 2, or rests) and select F3 "modify · Now in the indicated text input field you can enter a combination of letter, character and figures for whose occurence is searched in the selected text field.

  • Page 49: Delete Sites

    Each record in the table is one line of the text file. Each field value of a record is separated from the next by a character. NOVAplus Combustion Analayzer uses a semi-colon ‘;’ as value separator (other implementations use sometimes a comma). Implementations of CSV can often handle field values with embedded line breaks or...

  • Page 50: Import Of Sites

    MRU Instruments, Inc. USER MANUAL NOVAplus supported, so it is often used to move tabular data between different computer programs, for example Microsoft Excel™ or Access™, that support the format. Also other computer programs offer this type of interface because it is widely spread and easy to use.

  • Page 51: Export Of Sites

    MRU Instruments, Inc. USER MANUAL NOVAplus 11.4.2 Export of Sites This function can be used for an analyzer back up or if you wish to supply the analyzer information to a computer program or another analyzer. This is very handy if you have made some modifications inside the analyzer (site) for example if you have modified the phone number of a customer and this modification needs to be updated in the computer software, or if a second analyzer needs to have the same site information.

  • Page 52: Measurements In The Data Memory

    MRU Instruments, Inc. USER MANUAL NOVAplus 11.5 Measurements in the data memory 11.5.1 View measurements In the menu item „View measurements“you can inspect the stored measurements. After selection of this item you receive first an overview of the number of the stored measurements according to measuring type.

  • Page 53: Delete Measurements

    12 EXTRAS / ADJUSTMENTS The NOVAplus is delivered in a standard software configuration which should cover most needs. However, there are many ways to tailor the settings to your individual needs if required. The possibilities are highly flexible and individual adaptable.

  • Page 54: User Definable Logo Print Out

    Converting a Bitmap into a Logo file: Use the enclosed Windows-Program "NOVAPlusPrnLogoCreator.exe" (MRU Product CD / Software / NOVAPlusPrnLogoCreator). The Bitmap can have any color depth bit ideal is a color depth of 1-bit black-white. The horizontal resolution must have 384 pixels. If necessary the Bitmap can be adjusted using a picture editing program (not included on the CD).
  • Page 55 SD card slot, the unit will conform the upload with a short beep and on the screen you will see a short mes- sage – Logo installed. Printer Logo setting: As soon as the Logo has been installed and the printer type is set on MRU, the Logo print will be available in the menu “extras / settings (print Logo).

  • Page 56: Maintenance Adjustment Menu

    In case of a defect contact the MRU service department. The MRU service technician will ask you about these values or he will ask you to send them by fax or email.

  • Page 57: Leak Proof Test

    MRU Instruments, Inc. USER MANUAL NOVAplus Jump between the lines Export of service values to SD card return Service values base unit: Jump between the lines Function test gas pump (on / off -> only with service PIN code!) Function test purge pump (on / off -> only with service PIN code!) return 12.5 Leak proof test...
  • Page 58 If of the leak proof test is not passed the probe must be checked including the hosing as well as the condensate separator. If no undensity is ascertained in these external parts the NOVAplus has to be checked in a service department (worldwide service departments see www.mru.eu).

  • Page 59: Contents Sd Card

    MRU Instruments, Inc. USER MANUAL NOVAplus 12.6 Contents SD card The contents of the SD card will be displayed. With F3 the selected file can be opened. 12.7 Analyzer info Here you will find information about the analyzer and the installed options.

  • Page 60: Technical Specifications

    MRU Instruments, Inc. USER MANUAL NOVAplus and the F2 button to see the warranty status of the unit. 13 TECHNICAL SPECIFICATIONS 13.1 General specifications Deutsch Angabe English +5°C ... +45 °C / 41 °F Betriebstemperatur Operating temperature ... 113 °F Rel.

  • Page 61: Measuring Values

    MRU Instruments, Inc. USER MANUAL NOVAplus Kondensatabscheider (nicht-gekühlt) Standard Condensate separator (non-cooled) Gaskühler Option Gas cooler Temperatur Peltierkühler (an Netz und Ak- Temperture Peltier cooler (during grid and battery 5 °C /ECO operation) Akkubetriebszeit mit Gaskühler Batt operating hours with gas cooler •...
  • Page 62 MRU Instruments, Inc. USER MANUAL NOVAplus Ansprechzeit T90 < 40s Response Time T90 Elektrochemischer Sensor Electrochemical Sensor Nominaler Messbereich 0 - 1000 ppm Nom. Measuring Range Überlastbereich < 5000 ppm Overload Range Auflösung Resolution ± 5ppm / Genauigkeit abs. /vom Messwert 5% (0 ...
  • Page 63 MRU Instruments, Inc. USER MANUAL NOVAplus Nicht-dispersive Infrarotmes- Non-dispersive Infrared CH4 / CO / CO2 sung (NDIR) Measurement (NDIR) Length ArtNr. Type Range Resolution Accuracy 1 ppm ± 0,03 % / 3 % 64011 10 % 0,001 % ± 0,03% / 3 %...

  • Page 64: Calculated Values

    MRU Instruments, Inc. USER MANUAL NOVAplus Messbereich ± 125 hPa Measuring Range Genauigkeit abs. 0,02 hPa / 1% Accuracy abs. / reading Messwert To be connected to base Anschluss an Grundgerät unit Differenzdruck Fernsteue- Differential Pressure RCU rung Messbereich ± 125 hPa...

  • Page 65: Data Communication

    MRU Instruments, Inc. USER MANUAL NOVAplus Absolutdruckmessung in der • absolute pressure measured by RCU Fernsteuerung 13.5 Data communication Deutsch Angabe English USB Anschluss USB interface Fernsteuerung SD Karte SD card >= 2GB, für SW update, Datenaus- for SW update, data exchange or...

  • Page 66: Asking The User For A Decision (Pop Up Window)

    14.3 Using the USB-Port This port is used for data transfer from your analyzer to your PC / Laptop using the MRU Online View (Version 2.XX). The first time you want to use your analyzer for data transfer to your PC or laptop, you have to “mate” the NOVAplus and your PC / Laptop.
  • Page 67 MRU Instruments, Inc. USER MANUAL NOVAplus Windows XP: Press the START button – then select the CONTROL PANEL – select SYSTEM – select HARDWARE – select DEVICE MANAGER Windows 7: for Windows 7 there are several possibilities, please read your Windows 7 manual for details.
  • Page 68 In the General folder you can see if the unit is ready operation. In case the analyzer is not ready for operation, choose a different USB instrument to check the USB port on your computer, and/or connect the NOVAplus to a different computer to locate the error.

  • Page 69: Analysis And Calculations

    MRU Instruments, Inc. USER MANUAL NOVAplus 14.4 Analysis and calculations Measured values Unit Temp. Ambient air (Thermo-Element) [°C] Temp. Flue gas (Thermo-Element) [°C] [ppm] Draft [hPa] Available conversions of CO [ ppm ] related to. on 0% rest O (undiluted) [ ppm ] related to.

  • Page 70: Fuel Types

    These values are than referenced for the gross calorific value for condensing boilers only. (efficiency > 100) The calculations of efficiency and exhaust losses are performed using Siegert’s formula. For further information please contact MRU GmbH. (www.mru.eu). 14.5 Fuel types 14.5.1 General information...

  • Page 71: Co- Conversion Of Co [Ppm]

    MRU Instruments, Inc. USER MANUAL NOVAplus 14.5.4 CO- conversion of CO [ppm] × COunv × × CO ppm ] ,249 × × × × min, min, 14.5.5 NO-conversion of NO [ppm] × NOundel × × NO ppm ] ,339 ×...

  • Page 72: Fuel Type List

    MRU Instruments, Inc. USER MANUAL NOVAplus × × If NOx is specified in mg, it has to be considered, that all the NO in the atmosphere will become NO . Therefore the conversion factor ppm => mg is factor of NO ×...

  • Page 73: Errors

    MRU Instruments, Inc. USER MANUAL NOVAplus Torf 19,8 0,66 0,70 0,010 Kokereigas 10,8 0,29 0,60 0,011 Stadtgas 11,7 0,35 0,63 0,011 Österreich O2max 21,00 Brennstoff CO2max Prüfgas 0,00 0,00 0,000 Heizöl EL 15,3 0,52 0,71 0,007 Heizöl L 15,8 0,53...

  • Page 74: Error Diagnosis Regarding The Condensate Separator

    MRU Instruments, Inc. USER MANUAL NOVAplus No measurement possi- Device cannot be switched Connect the device to the on or does not react after line power in order to being switched on. charge the battery. Battery discharge Measurement without Temperature indication:...

  • Page 75: Declaration Of Confirmity

    MRU Instruments, Inc. USER MANUAL NOVAplus 14.8 Declaration of confirmity...
  • Page 76 MRU Instruments, Inc. USER MANUAL NOVAplus Technical data change w/o notice Date of issue: 20120719...
