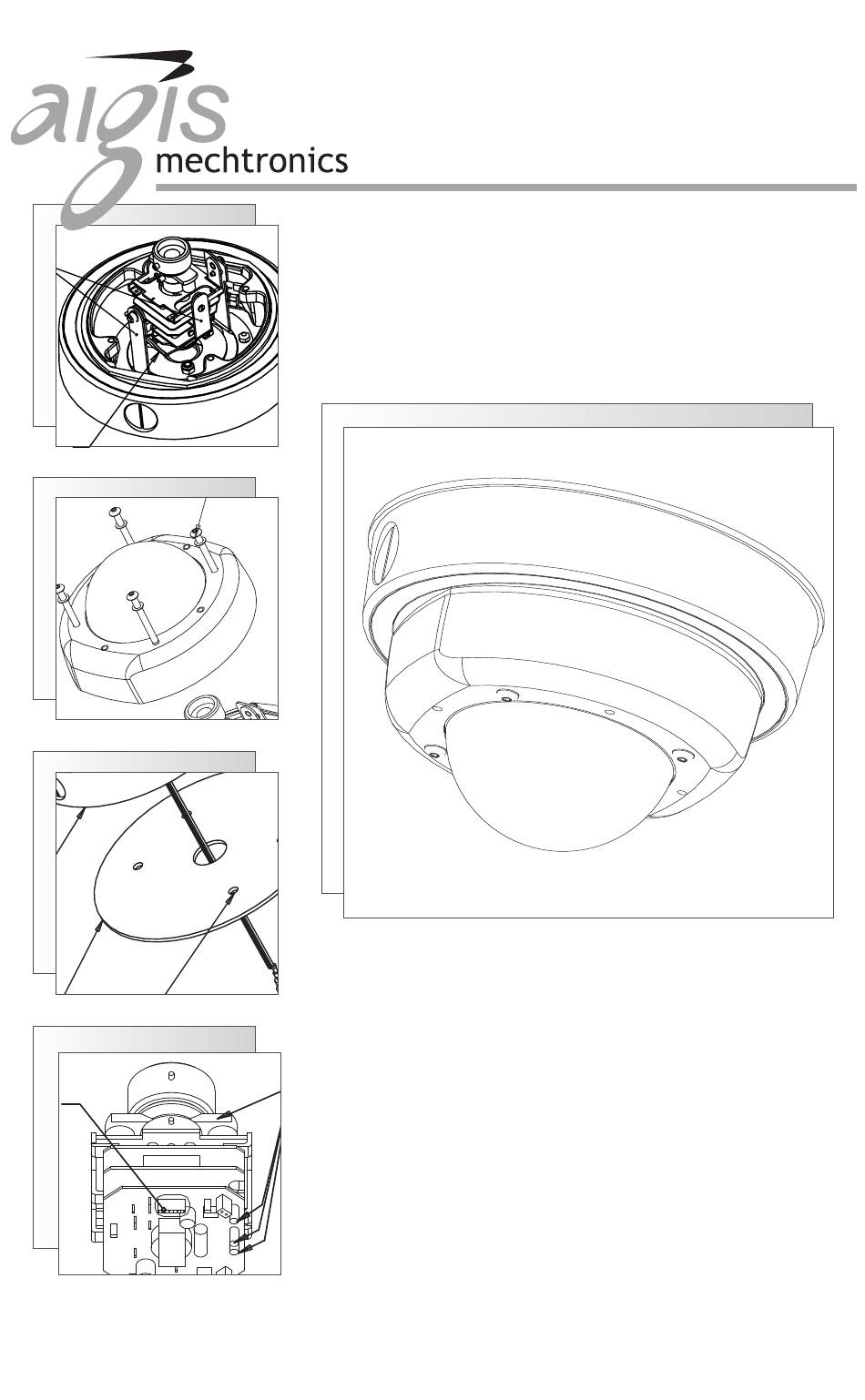

Tamper Resistant Captive Screws
Base Gasket
Four Mounting Holes
(#10 or M5 Screws)
BNC or Network Leads
Push Wire Connectors
Push Wire Connectors
I
N S T A L L A T I O N A N D
V
Tamper Resistant Captive Screws
Cover Assembly
Network UTP Module (Optional)
Base Assembly
Rear Mount
Conduit Connection
Phase Adjust Pot
on Power Board.
O
R
ANDAL
Rear Mount
Conduit Connection
P E R A T I N G
D
/N
AY
D
ESISTANT
W
IR R
ITH
MLA2DN25IR
I
N S T R U C T I O N S
IGHT
OME
ING
Advertisement
Table of Contents
Related Manuals for Aigis Mechtronics MLA2DN25IR
Summary of Contents for Aigis Mechtronics MLA2DN25IR
- Page 1 Rear Mount Conduit Connection Rear Mount Conduit Connection ount ection Alternate Surface Mount Conduit Connection sembly MLA2DN25IR Base Gasket se Gasket Four Mounting Holes Phase Adjust Pot (#10 or M5 Screws) Mounting Holes h Locations. on Power Board. re 5 for or M5 Screws) ositions.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read Instructions - All safety and operating instructions should be read before the unit is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to. - Page 3 12. Power Lines - An outdoor system should not be located in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits. When installing an outdoor system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS CAUTION:TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the bottom of the unit due to space limitations. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 5 SECURITE DANGER: POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER. IL N'Y A PAS DE PIÈCES REMPLAÇABLES À L'INTÉRIEUR. POUR TOUTE RÉVISION, S'ADRESSER À UN TECHNICIEN SPÉCIALISÉ. En raison de limitation de place, cette étiquette peut être placée sur le dessous de l'appareil.
- Page 6 SICHERHEITSVORKEHRUNGEN VORSICHT: UM EINEN ELEKTRISCHEN SCHLAG ZU VERMEIDEN, ABDECKUNG NICHT ENTFERNEN. WARTUNGEN ALLER ART QUALIFIZIERTEM PERSONAL ÜBERLASSEN. Aus Platzgründen kann diese Warnung auf der Unterseite des Gerätes angebracht sein. Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer auf nicht isolierte "Hochspannung" im Gehäuse aufmerksam machen, die eventuell stark genug ist, um einen elektrischen Schlag zu verursachen.
-
Page 7: Precauciones De Seguridad
PRECAUCIONES DE SEGURIDAD PRECAUCION: PARA REDUCIR EL RIESGO DE CHOQUE ELÉCTRICO, FAVOR NO ABRIR LA CUBIERTA. ESTE EQUIPO NO CONSTA DE PIEZAS O PARTES QUE REQUIEREN SERVICIO O MANTENIMIENTO. PARA REPARACIONES FAVOR REFERIRSE A UN TÉCNICO CALIFICADO. Debido a limitaciones de espacio, esta etiqueta puede aparecer en la parte inferior de la unidad. -
Page 8: Description And Specifications
DESCRIPTION & SPECIFICATIONS The MLA2DN25IR is a small, high security surveillance dome containing a 1/4- inch day/night CCD camera with integral fixed or varifocal lenses.This dome combines advanced day/night technology with high intensity infrared illuminators to create a sharp picture in complete darkness. -
Page 9: Cover Removal & Replacement
Replace the cover and tighten the retaining screws securely. Tamper Resistant Captive Screws Cover Assembly Rear Mount Conduit Connection Alternate Surface Mount Conduit Connection Base Assembly Base Gasket Four Mounting Holes (#10 or M5 Screws) BNC or Network Leads Push Wire Connectors Figure 1 MLA2DN25IR Series Assembly... -
Page 10: Installation
INSTALLATION Attention: Installations should be performed by qualified service personnel only in accordance with the National Electrical Code or applicable local codes. 5.1 Connecting Low Voltage Power & Video Signal The wiring harness has a BNC connector to accept video coax and two stripped leads to accept the low voltage power. -
Page 11: Camera Adjustment
Install the appropriate anchors or threaded inserts at the locations marked in step 1. Install a 3/4-inch threaded service conduit coupling into the back conduit hole, using pipe sealant on the threads. If conduit is to enter from the side, use a 2.5mm Hex Key wrench to loosen the set screw from the conduit hole plug. -
Page 12: Dip Switches
CAMERA AND LENS SETTINGS The camera module has various settings for any additional adjustments that may be required. See Figure 4 for adjustment locations. Phase Adjust Pot Dip Switch Locations. on Power Board. See Figure 5 for Switch Positions. Figure 4 Camera Adjustments 7.1 Dip Switches The following chart diagrams the selectable dip switches and their respective functions.When changing the DIP switch settings, take care when making the... - Page 13 7.2 Color/Black & White Setting This switch in Figure 6 lets you select the timing of the automatic switching of the optical filter to color image or black and white image, according to the subject brightness.The default setting is down (LOW). Set the switch according to the brightness.
-
Page 14: Backlight Compensation Setting
1 1/60 2 1/100 3 1/1000 4 1/2000 7.4 Aperture If you would like to emphasize the contours of the object, set the switch 4 (AP) to the up (SHRP) position. Figure 8 Aperture Dip Switch 7.5 Backlight Compensation Setting This camera has two different backlight compensation functions: Normally backlight compensation switch 5 (BL-M) and 6 (BL-C) are set to the down (OFF) position. -
Page 15: White Balance Adjustment
7.6 White Balance Adjustment Normally the switch 7 (WB) is set to the down (ATW: auto white balance) position and the white balance is adjusted automatically. If a manual white balance adjustment is necessary, follow the steps below. Set the switch 7 (WB) to the up (MANU: manual) position, then adjust the color. - Page 16 7.9 Manual Color/Black and White Setting Connect each cable as indicated in Figure 13, to set the image to black and white or color as desired. Color image setting. Connect the Color (yellow) and the White (ground) cables. Black and white setting. Connect the B/W (purple) and the White (ground) cables.
-
Page 17: User Adjustments
DESICCANT INSTALLATION Keep Desiccant Sealed in Plastic Bag Until Ready For Installation. Attach Desiccant To Either Surface Using adhesive Pad Supplied in Kit. Figure 15 Desiccant Installation IR BOARD ADJUSTMENT 9.1 User Adjustments 9.1.1 Light sensor sensitivity SENSE Adjustment - turn CCW increases sensitivity. To adjust for daytime setup - turn CCW until STATUS led (red) turns off. -
Page 18: Specifications
10 SPECIFICATIONS A M E R A P E C I F I C AT I O N S OPTIONS Resolution Horizontal: 520 TV lines; Vertical: 350 TV lines Voltage Range 24 VAC Power Sensitivity 1.2 lux 0.00 lux minimum scene (color mode) (b/w mode) illumination... - Page 19 SPECIFICATIONS (CONTINUED) Color & Black/White Level Switch Electronic Shutter Aperture Compensation (Sharp/Normal) Backlight Compensation Camera White Balance Controls Line-lock on/off Phase Adjustment Lens Iris Level Adjustment IR Intensity (wide & narrow beams - 0 -100% ) Visible Light Sensor Illuminator Light Sensor Override Includes unshielded twisted pair transmitter compatible with NVT receivers.
-
Page 20: Dimensional Outline
Threaded for 3/4-inch Conduit Plug Supplied. ø 7.64 194,2 1.50 38,1 4.79 3.12 79,2 121,5 100 0134 001 AIG 12/05 ©2005 Aigis Mechtronics Printed in U.S.A. 1124 Louise Road,Winston-Salem, NC 27107-5450 Tel: 336.785.7740 Fax: 336.785.7744 Data subject to change without notice...
