Aigis Mechtronics D5 Series Installation And Operating Instructions Manual

5-inch integrated dome package

Advertisement

Quick Links

5-I
NCH
I
D
P
(
)
NTEGRATED
OME
ACKAGE
S
d out
In-Ceiling Recess
2 Con
Tighte
Pendant Pole
Pendant Wall
D5 S
ERIES
I
O
I
N S T A L L A T I O N A N D
P E R A T I N G
N S T R U C T I O N S
.
.
W W W
A I G I S M E C H
C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aigis Mechtronics D5 Series

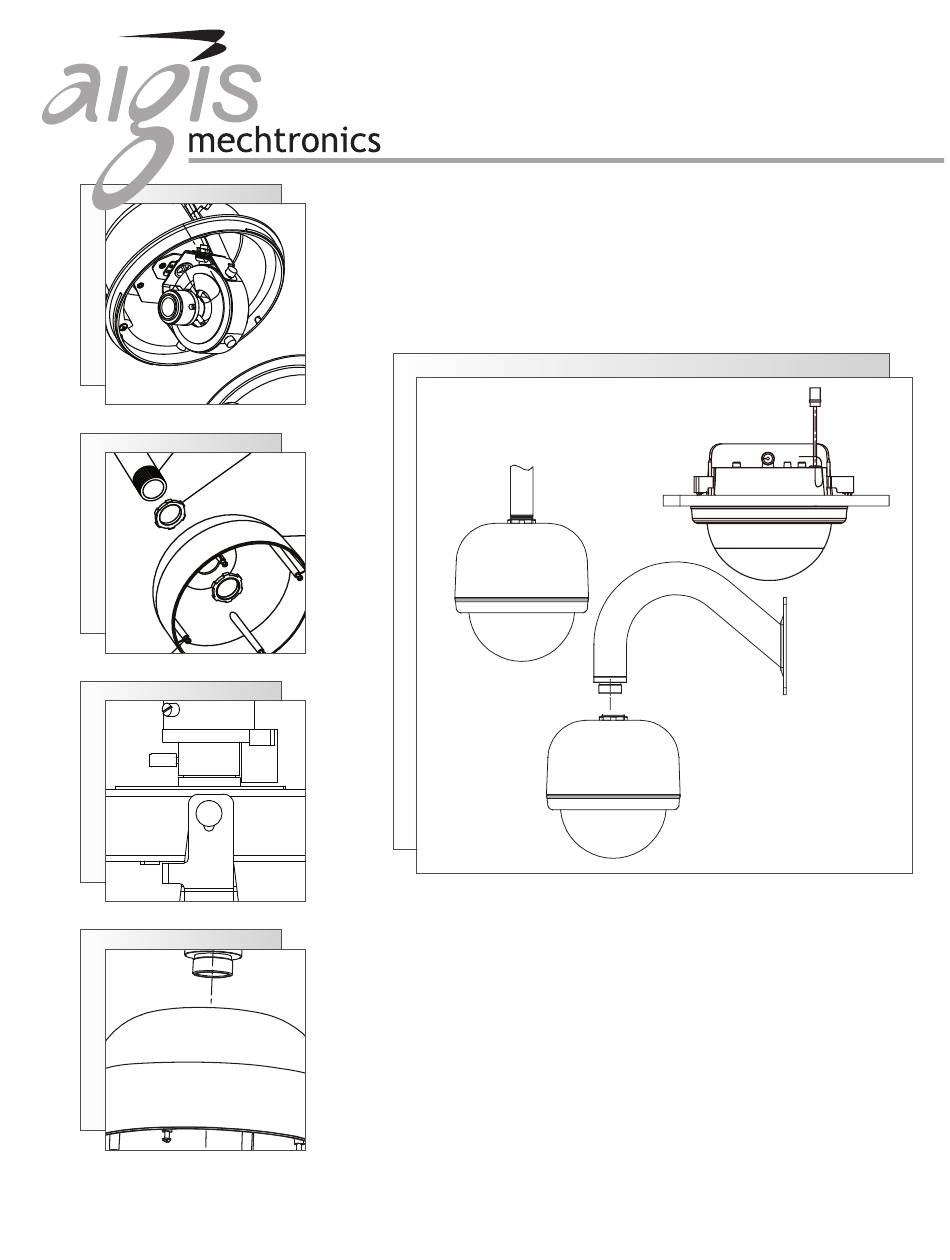

  • Page 1 NTEGRATED ACKAGE d out In-Ceiling Recess 2 Con Tighte Pendant Pole Pendant Wall D5 S ERIES N S T A L L A T I O N A N D P E R A T I N G N S T R U C T I O N S W W W A I G I S M E C H C O M...
  • Page 2: Important Safeguards

    16. Servicing - Do not attempt to service this unit yourself as opening or IMPORTANT SAFEGUARDS removing covers may expose you to dangerous voltage or other 1. Read Instructions - All the safety and operating hazards. Refer all servicing to qualified service personnel. instructions should be read before the unit is operated.
  • Page 3 SECURITY SECURITE CAUTION: TO REDUCE THE RISK OF ELECTRI- Danger: Pour éviter tout risque d’électrocution, ne pas CAL SHOCK, DO NOT OPEN COVERS. NO USER ouvrir le boîtier. Il n’y a pas de pièces remplaçables à l’in- SERVICEABLE PARTS INSIDE. REFER SERVICING térieur.
  • Page 4: Precauciones De Seguridad

    SICHERHEITSVORKEHRUNGEN PRECAUCIONES DE SEGURIDAD VORSICHT: UM EINEN ELEKTRISCHEN SCHLAG Precaucion: Para Reducir El Riesgo De Choque ZU VERMEIDEN, ABDECKUNG NICHT ENTFER- Eléctrico, Favor No Abrir La Cubierta. Este Equipo No NEN. WARTUNGEN ALLER ART QUALIFIZIERTEM Consta De Piezas O Partes Que Requieren Servicio O PERSONAL ÜBERLASSEN.
  • Page 5: Model Numbers

    If an item appears to have been damaged in shipment, replace it properly in its carton and notify the shipper. If any items are missing, notify Aigis Mechtronics. The shipping carton is the safest container in which the unit may be transported. Save it for possible future use.
  • Page 6: Installation

    SERVICE If the unit ever needs repair service, the customer should contact Aigis Mechtronics for return authorization and shipping instructions. INSTALLATION ATTENTION: Installation should be performed by qualified service personnel only, in accordance with the National Electrical Code or applicable local codes. Refer to applicable installation section.
  • Page 7 Camera. Figure 2 In-ceiling Installation 4.2 Pendant Model (D5 xx xxx P or W) The pendant mount version of the D5 Series can be mounted to a wall or conduit/pipe. 4.2.1 Conduit/Pipe Mounting When pendant mounting to a vertical conduit, route power/video cables through your mounted conduit. Screw one of the conduit nuts (see step 3), onto the conduit, then route these cables through the removable pendant cap.
  • Page 8 Route power/video cables to the terminal block and BNC connector located on the back of the housing and make proper connections. See Figure 1. Attach base camera/lens unit to pendant cap by lining up and joining the cap’s four studs to the slots located on the back of the base unit.
  • Page 9: Camera Adjustments

    4.3 Camera Adjustments The camera can manually pan, tilt, or rotate 360 degrees. See Figure(s) 5a and 5b for a diagram of these adjustments. Loosen Thumbnuts to adjust Color High Resolution Camera Wide Dynamic Range Camera (WDR) Figure 5a Camera Position Adjustments Camera shown at a 90º...
  • Page 10: Remote Video Setup

    4.4 Remote Video Setup A second coaxial cable is included to allow the installer to set up the video at the camera site using a small spare monitor. Refer to the following steps for this procedure. After the power and video connections are made to the camera and the dome is mounted correctly, connect the setup coax cable with BNC located next to the camera/lens module to the remote monitor.
  • Page 11: Dimensional Outlines

    NETWORK UTP OPTION Factory installed unshielded twisted pair transmitter requires no adjustments to be made during installation. Ensure that the pin designation used in the Aigis UTP product (see below) corresponds to that of the receiver. Refer to the receiver manufacturer’s Operating Mannal for information on max wire lengths. Pin Number Color Utilization...
  • Page 12 ©2009 Aigis Mechtronics 1124 Louise Road, Winston-Salem, NC 27107-5450 Tel: 336.785.7740 Fax: 336.785.7744 AIG 100 0247 001 09/09 Data subject to change without notice Printed in U.S.A.
