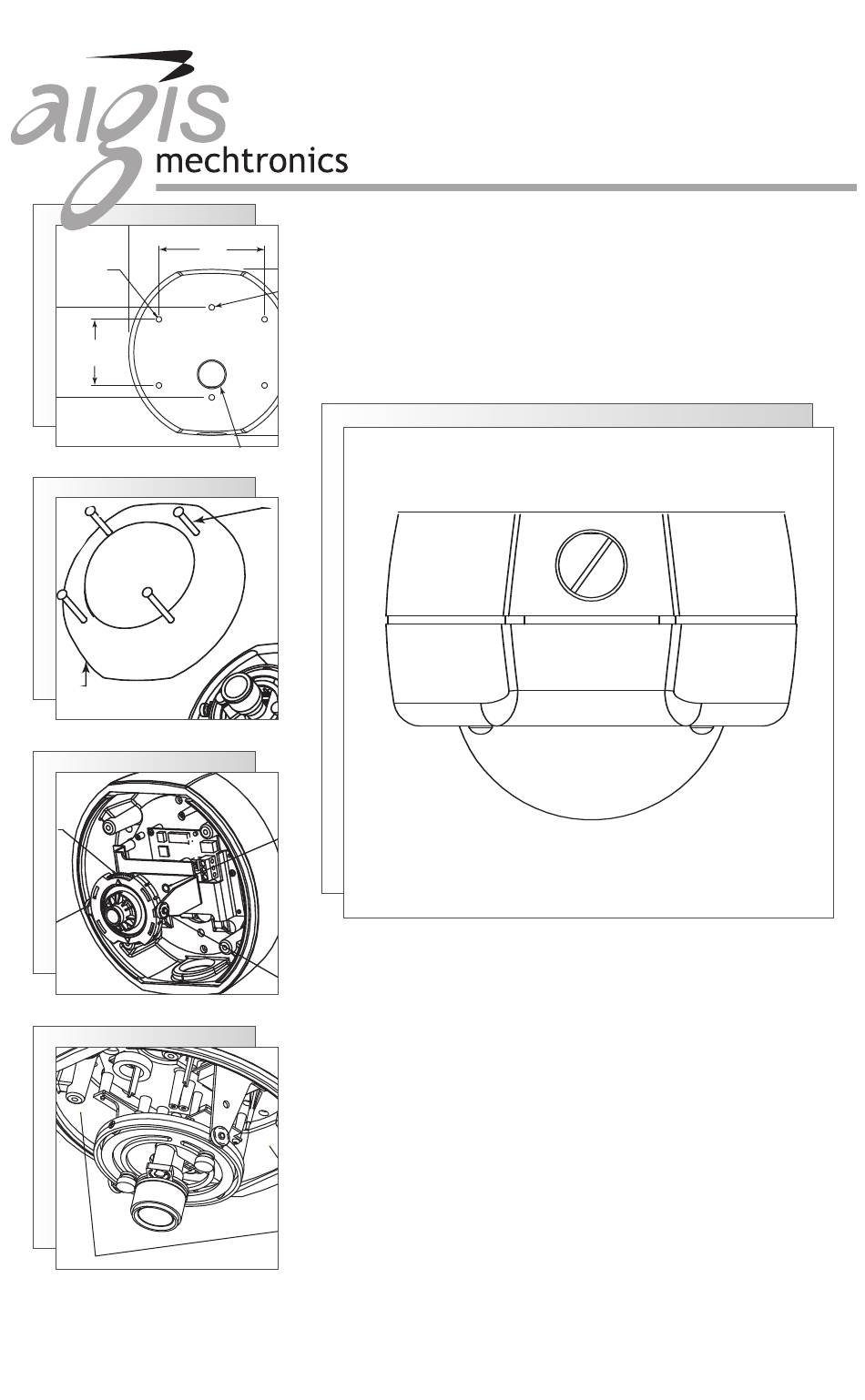

Aigis Mechtronics MLA Series Installation And Operating Instructions Manual

Miniline aluminum fixed and varidomes
Hide thumbs Also See for MLA Series:
Table of Contents

Advertisement

Quick Links

Download this manual
4x 05.1 (0.20)
Mounting Holes
83.3
61.1
(3.28)
(2.41)
mm
(in)
79
(3.11)
Rear Mount
Conduit Connection
BNC & Power Leads
I
N S T A L L A T I O N A N D
153.5
(6.04)
97.8
(3.85)
2x 05.1
(0.20)
153.5
(6.04)
Threaded for 3/4-inch Conduit
Threaded for 3/4-inch Conduit.
144.3
Captive Screws
(5.68)
114.1
Base Assembly
(4.49)
1. Remove dome cover.
Pivot Point
2. Adjust the camera at the pivot points
by using the rotation knob.
3. Tighten thumb nuts as needed.
Pivot Point
Thumbnut
ATTACH DESICCANT TO
EITHER SURFACE USING ADHESIVE
PAD SUPPLIED IN KIT.
KEEP DESICCANT
SEALED IN PLASTIC BAG
UNTIL READY FOR INSTALLATION.
M
INI
F
IXED AND
Plug Supplied.
Two Holes Align with
Single Gang Box
Four Mounting Holes
(#10 or M5 Screws)
Base Gasket
O
P E R A T I N G
L
A
INE
LUMINUM
V
D
ARI
MLA Series
I
N S T R U C T I O N S
OMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aigis Mechtronics MLA Series

Summary of Contents for Aigis Mechtronics MLA Series

  • Page 1 Base Gasket Alternate Surface Mount by using the rotation knob. Conduit Connection 3. Tighten thumb nuts as needed. t Point mbnut MLA Series BNC & Power Leads Pivot Point Thumbnut ATTACH DESICCANT TO EITHER SURFACE USING ADHESIVE PAD SUPPLIED IN KIT.

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS CAUTION:TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICE- ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the bottom of the unit due to space limitations. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 3 SECURITE DANGER: POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS OUVRIR LE BOÎTIER. IL N'Y A PAS DE PIÈCES REM- PLAÇABLES À L'INTÉRIEUR. POUR TOUTE RÉVISION, S'ADRESSER À UN TECHNICIEN SPÉCIALISÉ. En raison de limitation de place, cette étiquette peut être placée sur le dessous de l'appareil.
  • Page 4 SICHERHEITSVORKEHRUNGEN VORSICHT: UM EINEN ELEKTRISCHEN SCHLAG ZU VERMEI- DEN, ABDECKUNG NICHT ENTFERNEN.WARTUNGEN ALLER ART QUALIFIZIERTEM PERSONAL ÜBERLASSEN. Aus Platzgründen kann diese Warnung auf der Unterseite des Gerätes angebracht sein. Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer auf nicht isolierte "Hochspannung" im Gehäuse aufmerksam machen, die eventuell stark genug ist, um einen elektrischen Schlag zu verur- sachen.

  • Page 5: Precauciones De Seguridad

    PRECAUCIONES DE SEGURIDAD PRECAUCION: PARA REDUCIR EL RIESGO DE CHOQUE ELÉCTRICO, FAVOR NO ABRIR LA CUBIERTA. ESTE EQUIPO NO CONSTA DE PIEZAS O PARTES QUE REQUIEREN SERVICIO O MANTENIMIENTO. PARA REPARACIONES FAVOR REFERIRSE A UN TÉCNICO CALIFICADO. Debido a limitaciones de espacio, esta etiqueta puede aparecer en la parte inferior de la unidad.

  • Page 6: Description And Specifications

    Mechtronics for authorization to return as well as shipping instructions. 3. DESCRIPTION & SPECIFICATIONS The MLA Series Mini and Vari domes are small, high security surveillance domes containing 1/4-inch CCD cameras with integral fixed or varifocal lens- es.The unit mounts easily to a single gang electrical box or directly to a wall or ceiling.The units come ready to use and have line lock, phase adjustment,...
  • Page 7 Refer to Figure 1. Lift the cover off the base to make required camera adjustments. Replace the cover and tighten the retaining screws securely. Figure 1 MLA Series Assembly...

  • Page 8: Installation

    5. INSTALLATION Attention: Installations should be performed by qualified service personnel only in accordance with the National Electrical Code or applicable local codes. 5.1 Connecting Low Voltage Power & Video Signal The wiring harness has a BNC connector to accept video coax and two stripped leads to accept the low voltage power.

  • Page 9: Camera Adjustment

    If mounting this unit outdoors, apply a generous bead of silicone sealant around the back of the base casting, surrounding all holes.Apply the rubber base gasket to the back of the base casting and apply another generous bead of sealant to the outer edge around the exposed surface of the gasket. Place the unit into position on the wall or ceiling.
  • Page 10 CAMERA AND LENS SETTINGS MLA VARIFOCAL SERIES The camera module has various settings for any additonal adjustments that may be required. See Figure 4 for adjustment locations. Phase Adjust The phase adjust control is located on the power board next to power cable connections.
  • Page 11 DETAIL B The following chart diagrams the selectable dip switches and their respective functions: Color & Day/Night Camera DC IRIS IRIS Sync IRIS DC ON ON INT Shutter speed to be fixed at 1/100 sec. Flickerless (FL) Normal position Set to this position when a strong Backlight Compensation light is in the back ground.
  • Page 12 8. CAMERA AND LENS SETTINGS MLA Fixed Focal Series As received, the unit will be set such that the line lock is on, the backlight compensation is off and automatic white balance is on (color models only). Push Wire Connectors See Detail A Power Board BNC / Power Harness...

  • Page 13: Fiber Optic Connection

    9. FIBER OPTIC CONNECTION For Fiber Optic Models, Avoid Tight Bends in the Fiber Cable. Connect Camera and Fiber Module to the same 24VAC Power Source. Suggested Fiber Optic Cable Routing (CABLE NOT SUPPLIED) Power leads terminate at this block with flying leads provided.

  • Page 14: Replacement Parts

    11. DESICCANT INSTALLATION Attach Desiccant to Either Surface Using Adhesive Pad Supplied in Kit. Keep Desiccant Sealed in Plastic Bag Until Ready for Installaton. 12. REPLACEMENT PARTS Part no. Part Description 315 3460 001 Dome Bubble, Gray Tint 315 3460 002 Dome Bubble, Clear 315 4372 508 Varifocal Camera/Lens Assembly &...

  • Page 15: Dimensional Outline

    13. DIMENSIONAL OUTLINE 153.5 (6.04) 97.8 (3.85) 4x 05.1 (0.20) Mounting Holes 2x 05.1 (0.20) 153.5 83.3 61.1 (6.04) (3.28) (2.41) Dimensions are (in) Threaded for 3/4-inch Conduit Threaded for 3/4-inch Conduit. 144.3 Plug Supplied. (5.68) 114.1 (3.11) (4.49)
  • Page 16 ©2006 Aigis Mechtronics 1124 Louise Road,Winston-Salem, NC 27107-5450 100 0040 003 AIG 08/06 Tel: 336.785.7740 Fax: 336.785.7744 Printed in U.S.A. Data subject to change without notice...
