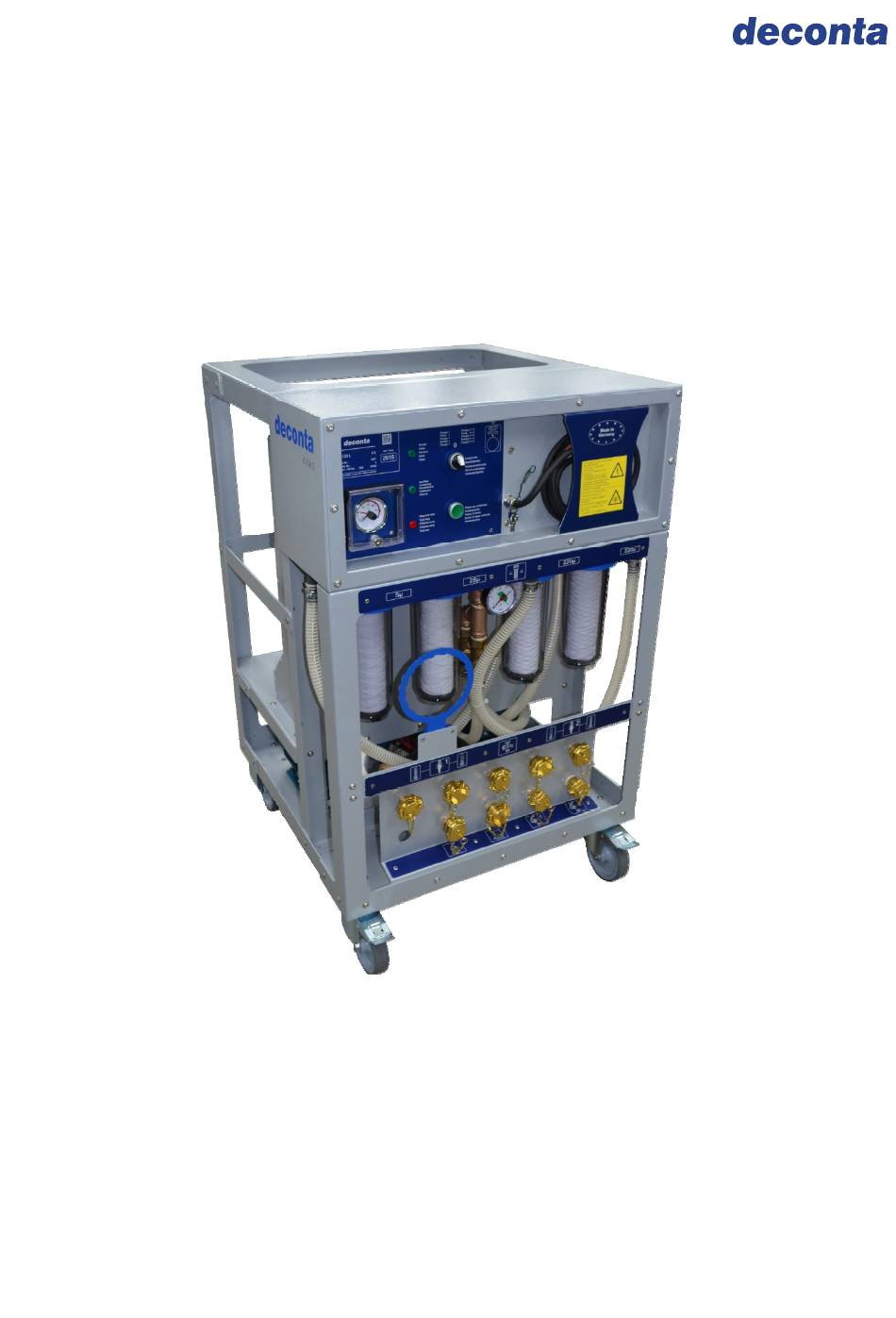

- Page 1 Instruction manual Water treatment boiler system C 130 L Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg Description Water treatment system C 130 L Type 546, 547 Serial-No.: ..
-
Page 2: Table Of Contents
Instruction manual Water treatment boiler system C 130 L Table of contents on page Basic safety advice Transport and storage Delivery Transport Storage Volume of delivery Technical description Intended use Unit description Technical data Initial operation Version with one Sewage pump... -
Page 3: Basic Safety Advice
Please keep the instruction manual close to hand and available for everybody. As an operator, you are obliged by deconta to follow the instruction manual and to use this engineered technology equipment only in accordance with the regulations and its suitability! In the event of non-observance, deconta assumes no liability. -
Page 4: Transport And Storage
Instruction manual Water treatment boiler system C 130 L 2 Transport and storage 2.1 Delivery If no other agreements have been made, the unit is packed safely and will be delivered ex work. Transport damages have to be immediately documented by the carrier or another supplier. -
Page 5: Volume Of Delivery
For this reason, personnel must leave the sanitation area through a lock system and take a shower while leaving. The deconta water treatment heats up the shower water and takes over the filtering of the contaminated sewage water. -
Page 6: Technical Data
Instruction manual Water treatment boiler system C 130 L 5 Technical data Volume Service Water: 130 Litre Tank filling: automatic or manual via filling opening Heat output: 3000 W Filter stages: Filter sizes: 10“ Power outlet: 230 V Power consumption:... -
Page 7: Initial Operation
Instruction manual Water treatment boiler system C 130 L 6 Initial operation Before the initial operation of the waste water pump or after a long period of stagnation, check that the shaft rotates freely when turned by hand. To check this put a screwdriver in the notch of the shaft end on the fan side and move the shaft. - Page 8 Instruction manual Water treatment boiler system C 130 L Unplug unit Connect hoses: o Optionally connect „water inlet“ with pipeline system or fill tank via filling opening by hand o Connect „warm water shower water“ with shower roof o Connect „Sewage IN“...
-
Page 9: Version With Two Sewage Pumps For 2Nd Shower
Instruction manual Water treatment boiler system C 130 L 6.2 Version with 2nd sewage pump for 2nd shower Cold water Cold water Water inlet Shower 2 Shower 1 Warm water Warm water Shower 1 Shower 2 Sewage OUT Sewage IN 1 Sewage IN 2 ... - Page 10 Instruction manual Water treatment boiler system C 130 L Set temperature of thermostat (red pointer) to max. 40°C. The temperature can be controlled on the temperature gauge (black pointer). Switch automatic operation to „Pump 1“ (if only one sewage pump is in use) or „Pump 1 + 2“...
-
Page 11: Maintenance And Care
Instruction manual Water treatment boiler system C 130 L 7 Maintenance and care 7.1 Daily maintenance Check hoses for free flow Visual check of 220µ-Pre filter for dirt Control of fine filter via manometer 7.2 Filter change The Manometer controls the fine filter. -
Page 12: Reduction Of Legionella Growth
Instruction manual Water treatment boiler system C 130 L Filter change: Loosen cap nut with help of filter head screw Remove filter and dispose of it Insert new filter cartridges Pay attention to correct fit and cleanliness of the seal ring ... -
Page 13: Circuit Diagram
Instruction manual Water treatment boiler system C 130 L 8 Circuit diagram 8.1 Version with one sewage pump page 13... -
Page 14: Version With Two Sewage Pumps
Instruction manual Water treatment boiler system C 130 L 8.2 Version with two sewage pumps page 14... -
Page 15: Declaration Of Conformity
Instruction manual Water treatment boiler system C 130 L 9 Declaration of conformity EU- Declaration of conformity deconta GmbH Im Geer 20 D-46419 Isselburg Product: Water management C 130 L Type: 546, 547 The design of the unit complies with...
