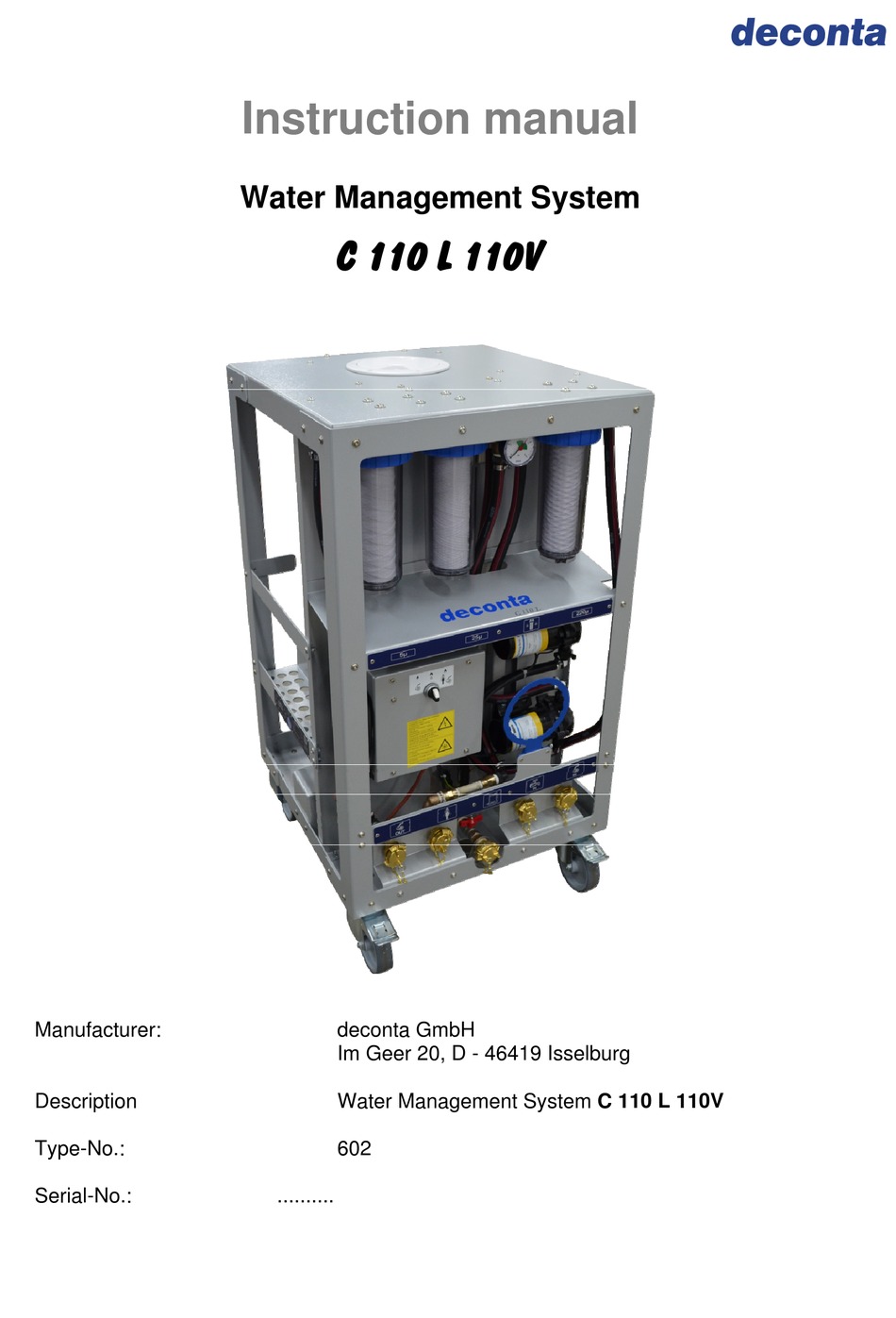

- Page 1 Instruction manual Water Management System C 110 L 110V Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg Description Water Management System C 110 L 110V Type-No.: Serial-No.: ..
-
Page 2: Table Of Contents
Instruction manual Water Management Boiler System C 110 L 110V Table of contents on page Basic safety advice Transport and storage Delivery Transport Storage Volume of delivery Technical description Intended use Unit description Technical data Initial operation Maintenance and care Daily maintenance Filter change Reduction of legionella growth... -
Page 3: Basic Safety Advice
Please keep the instruction manual close to hand and available for everybody. As an operator, you are obliged by deconta to follow the instruction manual and to use this engineered technology equipment only in accordance with the regulations and its suitability! In the event of non-observance, deconta assumes no liability. -
Page 4: Transport And Storage
Instruction manual Water Management Boiler System C 110 L 110V 2 Transport and storage 2.1 Delivery If no other agreements have been made, the unit is packed safely and will be delivered ex work. Transport damages have to be immediately documented by the carrier or another supplier. -
Page 5: Volume Of Delivery
For this reason, personnel must leave the sanitation area through a lock system and take a shower while leaving. The deconta water treatment assumes the heating of the shower water and takes over the filtering of the contaminated sewage water. -
Page 6: Technical Data
Instruction manual Water Management Boiler System C 110 L 110V 5 Technical data Volume service water: 110 Liter Tank filling: automatic or manually via filling port Heating capacity: 1000 W Filter stages: Filter size: 10" Power connection: 100-120 V Power consumption: Water connections: System Geka Dimensions (L x W x H):... -
Page 7: Initial Operation
Instruction manual Water Management Boiler System C 110 L 110V 6 Initial operation Sewage IN Sewage OUT Shower water Water inlet Unplug Establish hose connections: o Optionally connect „Water inlet“ with pipeline network or fill manually via filling port o Connection „Warm water shower water“... - Page 8 Instruction manual Water Management Boiler System C 110 L 110V Switch setting Function switch middle Position: heating rod active left Position: waste water pump and heating rod active right Position: Shower water pump, waste water pump and heating rod active Safety instructions: During works on the device always disconnect the plug! Operate the device only with mains which are secured with fault current protection...
-
Page 9: Maintenance And Care
Instruction manual Water Management Boiler System C 110 L 110V 7 Maintenance and care 7.1 Daily maintenance Check hoses for free flow Visual check of 220µ-Pre filter for dirt Control of fine filter via manometer 7.2 Filter change The Manometer controls the fine filter. -
Page 10: Reduction Of Legionella Growth
Instruction manual Water Management Boiler System C 110 L 110V Filter change: Loosen cap nut with help of filter head screw Remove filter and dispose of it Insert new filter candles Pay attention to correct fit and cleanliness of the seal ring ... -
Page 11: Cleaning Waste Water Pump
Instruction manual Water Management Boiler System C 110 L 110V 7.4 Cleaning waste water pump Remove hoses Remove fastening screw of pressure switch. ATTENTION: Do not alter the middle adjusting screw! Hose Fastening screw pump head Fastening screw pressure switch Adjusting screw Hose ... -
Page 12: Circuit Plan
Instruction manual Water Management Boiler System C 110 L 110V 8 Circuit diagram Seite 12... -
Page 13: Declaration Of Conformity
Instruction manual Water Management Boiler System C 110 L 110V 9 Declaration of conformity EU-Declaration of conformity deconta GmbH Im Geer 20 D-46419 Isselburg Product: Water Management C 110 L Type: 602 The design of the unit complies with EU-Machine directive 2006/42/EG...
