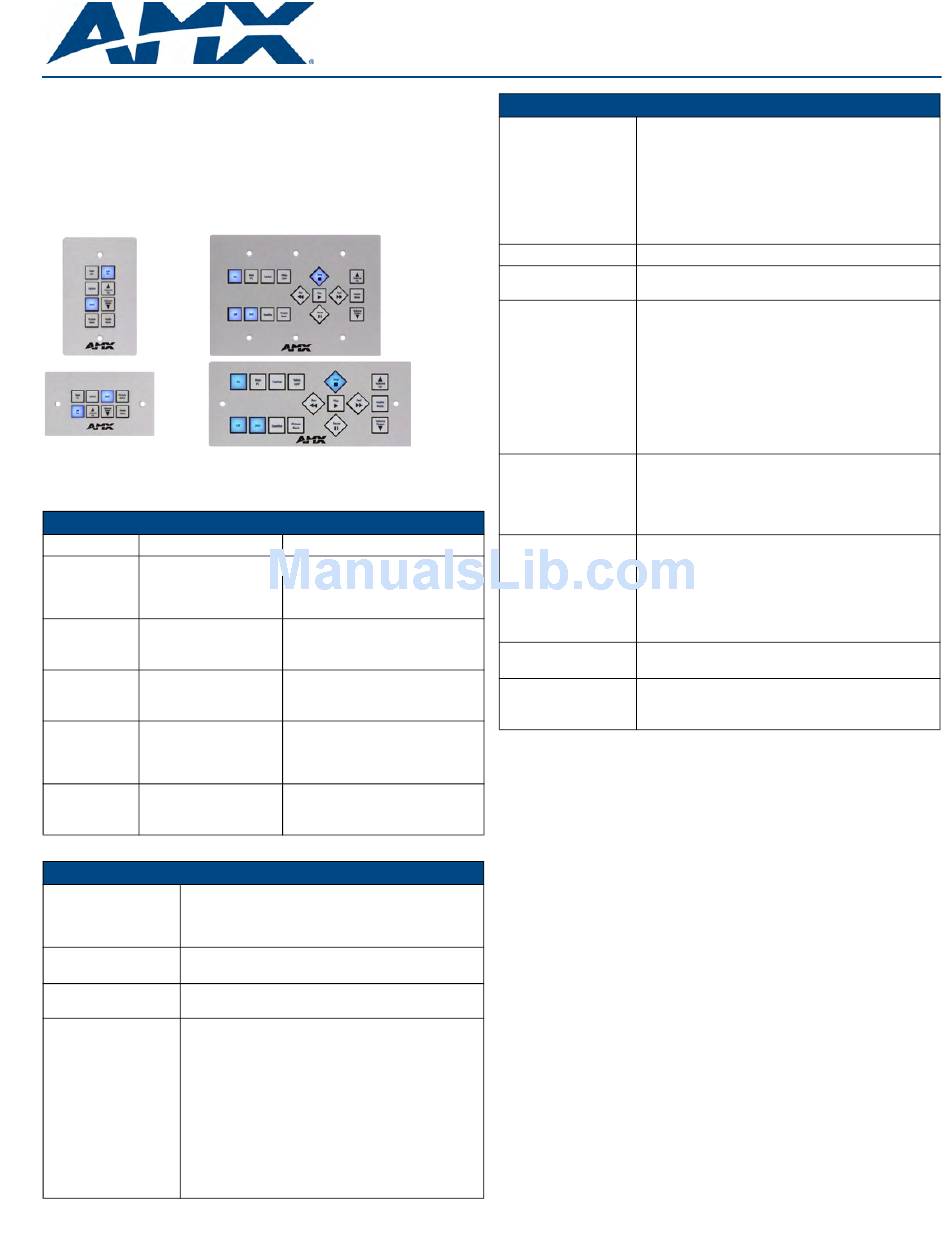

Overview
NOVARA 1000 Series ControlPads (FIG. 1) offer simplified device control with just the
right mix of ease of use, simplicity of configuration, and cost effectiveness. NOVARA
ControlPads are designed to be easily configurable allowing control of equipment by
RS232 commands and IR.
The ControlPads are configured using the NOVARA DCS1000 (Device Configuration
Software) software application, available for download from www.amx.com. Refer to
the NOVARA ControlPads & KeyPads Operation/Reference Guide (available at
www.amx.com) for configuration instructions.
CP-1008-US
CP-1008-UK
CP-1008-EU
FIG. 1
NOVARA 1000 Series ControlPads
The NOVARA 1000 Series of ControlPads include:
NOVARA 1000 Series ControlPads
Name
Description
CP-1008-US
Fits 1-gang US conduit
boxes.
8-Button
ControlPad
See Mounting
Specifications for details.
CP-1008-UK
Fits standard 2-gang
UK conduit box sizes.
8-Button
ControlPad
CP-1008-EU
Fits standard 2-gang
European conduit box
8-Button
sizes.
ControlPad
CP-1016-TR-US
Fits 3-gang US conduit
boxes
16-Button
ControlPad
See Mounting
Specifications for details.
CP-1016-TR-UK
Fits standard 3-gang UK
conduit box sizes.
16-Button
ControlPad
Product Specifications
NOVARA 1000 Series ControlPads
Power Requirements:
• Min: 250mA @ 12 VDC
• Max: 420mA @ 12 VDC (with all buttons illuminated to
max brightness and 2 external devices attached to the
RELAY 1/2 Ports in the ON state).
Button Layout:
• 8 or 16 buttons
• Blue, backlit buttons with programmable feedback
Max number of events
1330
per ControlPad:
Rear Panel
• RELAY 2 - Output port: can be used to control external
Connectors:
devices (i.e. the AMX UPC-20+ Universal Power/Motor
Controller - not included). This is a current sink (not a
voltage driver). Max current sink - 100mA @12V.
• SHARED 12V - Common +12V.
• RELAY 1 - Output port: can be used to control external
devices (i.e. the AMX UPC-20+ Universal Power/Motor
Controller- not included). This is a current sink (not a
voltage driver). Max current sink - 100mA @12V.
• RS232 OUT - RS232 output port: supports one-way
RS-232 control (TX only).
• GND - Ground
CP-1016-TR-US
CP-1016-TR-UK
Colors/FG#s
• White: FG1301-08-SW
• Black: FG1301-08-SB
• Brushed Aluminum: FG1301-08-SA
• White: FG1301-08-KW
• Black: FG1301-08-KB
• Brushed Aluminum: FG1301-08-KA
• White: FG1301-08-EW
• Black: FG1301-08-EB
• Brushed Aluminum: FG1301-08-EA
• White: FG1301-16-SW
• Black: FG1301-16-SB
• Brushed Aluminum: FG1301-16-SA
• White: FG1301-16-KW
• Black: FG1301-16-KB
• Brushed Aluminum: FG1301-16-KA
NOVARA
NOVARA 1000 Series ControlPads (Cont.)
Rear Panel
• IR OUT - Connects to an IR Emitter to support one-way
Connectors (Cont.):
IR control (TX only).
• GND - Ground
• INPUT - Input detection: connects to an external switch
(such as a PIR switch), for detecting a High to Low or
Low to High state.
• -VE - Connects to the included 12V power supply (-).
• +VE - Connects to the included 12V power supply (+).
Top Panel Connector:
1 USB device configuration port.
Supported Baud
1200 - 115200
Rates:
Dimensions (HWD):
• CP-1008-US: 4.685" x 2.913" x 1.059"
(11.899 cm x 7.399 cm x 2.689 cm)
• CP-1008-UK: 3.386" x 5.787" x 1.059"
(8.600 cm x 14.698 cm x 2.689 cm)
• CP-1008-EU: 3.150" x 5.984" x 1.059"
(8.001 cm x 15.199 cm x 2.689 cm)
• CP-1016-TR-US: 4.724" x 6.693" x 1.059"
(11.998 cm x 17.000 cm x 2.689 cm)
• CP-1016-TR-UK: 4.331" x 9.055" x 1.059"
(11.000 cm x 22.999 cm x 2.689 cm)
Weight:
• CP-1008-US: 0.30 lbs (136.08 g)
• CP-1008-UK: 0.35 lbs (158.76 g)
• CP-1008-EU: 0.35 lbs (158.76 g)
• CP-1016-TR-US: 0.55 lbs (249.48 g)
• CP-1016-TR-UK: 0.65 lbs (294.84 g)
Included Accessories:
• Button Kit - includes acetate sheet with 50 pre-cut
button label inserts and clear plastic Key Caps
w/ 8 Key Caps: MA1301-01
w/ 16 Key Caps: MA1301-02
• Installation Kit - includes 8-pin captive wire connector
and mounting screws (KA1301-01)
• External 12V Power Supply (57-1301-SA)
Other AMX Equipment: • 8 Button Kit (MA1301-01)
• 16 Button Kit (MA1301-02)
Certifications:
• IEC 60950
• FCC/CE
• RoHS compliant
Mounting Specifications
Refer to the Product Specifications table above for dimensions. Dimensional drawings
are available in the NOVARA ControlPads & KeyPads Operation/Reference Guide.
Minimum Internal Clearance for US Conduit Boxes
To ensure a proper fit with sufficient clearance, US-style NOVARA ControlPads require
the following minimum internal dimensions within the conduit box:
•
US 1-Gang (HWD): 2.9" x 2.1" x 1.6" (7.36 cm x 5.33 cm x 4.06 cm)
•
US 3-Gang (HWD): 2.9" x 5.6" x 1.6" (14.22 cm x 5.33 cm x 4.06 cm)
These minimum interior dimensions will maintain a minimum .050" (1.27 cm)
clearance around the NOVARA unit.
