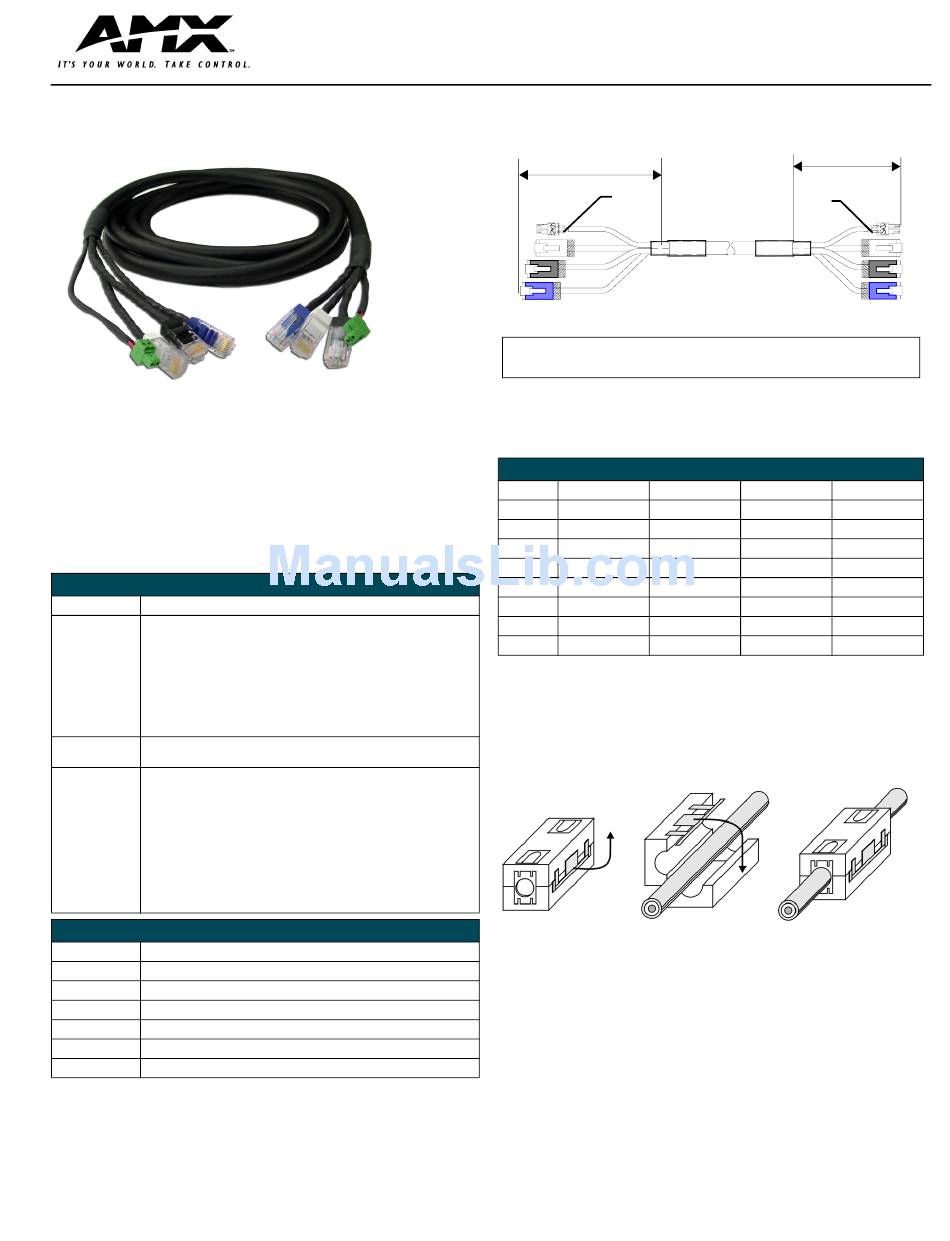

AMX NXD-1200VG Quick Start Manual

For more detailed installation and configuration instructions, refer to the
VG-Series Modero Touch Panels instruction manual available on-line at
www.amx.com.
FIG. 1
10 Foot NXA-MTC/RGB Combo Table Top Cable

Overview of the Table Top Cable

The VG-Series of Modero Touch Panels (fitted with either an RGB Kit or
upgraded with an optional NXA-RGBKIT (FG2255-11)) are shipped with a
10' (3.048 m) NXA-MTC/RGB Modero cable (CA2250-70) that supports
RGB, Ethernet, Audio/Video, and Power connections. This cable (FIG. 1)
comes terminated with three RJ45 connectors (Ethernet/AV/RGB) and a
single 2-pin 3.5 mm mini-Phoenix connector (for power).

Specifications

NXA-MTC/RGB Specifications
Dimensions: • Length: 10 feet (3.048 m)
Connectors: • Ethernet RJ-45 connector (White) routes Ethernet signals between the
touch panel and the AVB/RGB Breakout Box.
• Audio/Video RJ-45 connector (Black) routes differential audio/video signals
between the touch panel and the box.
• RGB RJ-45 connector (Blue) routes RGB/Component video signals and
touch control information to the RJ-45 RGB connector on the NXA-RGB
card (internally installed in the panel). This connector routes VGA and
Component video signals between the panel and the AVB/RGB Breakout
Box.
• 2-pin 3.5 mm mini-Phoenix power connector to route power from the
external breakout box to the target panel.
Included • One NXA-MTC/RGB Combo Table Top Cable (CA2250-70)
Accessories: • One black tie wrap (used to join the Ethernet and Power cables)
Optional Note: All 1200V and VG-Series panels routing an Audio/Video signal from a
Accessories: breakout box must use the appropriate number of CAT5 Suppression Ferrites
which are included as part of installation kits accompanying your particular
Modero panel.
Each of the following Installation Kits come with the appropriate number of
CAT5 Suppression Ferrites.
These ferrites must be installed onto the A/V RJ-45 cable.
• Installation Kit for 12" and 17" NXD panels (KA2251-01)
• Installation Kit for 15" NXD panels (KA2251-02)
• Installation Kit for 12" NXT panels (KA2251-03)
• Installation Kit for 15" and 17" NXT panels (KA2251-04)

Associated Touch Panels (where used)

FG2251-61RGB NXD-1200VG RGB KIT, 12" MODERO WALLMOUNT RGB KIT
FG2250-61RGB NXT-1200VG RGBKIT, 12" MODERO TABLETOP RGB KIT
FG2253-61RGB NXD-1500VG RGB KIT, 15" MODERO WALLMOUNT RGB KIT
FG2252-61RGB NXT-1500VG RGB KIT, 15" MODERO TABLETOP RGB KIT
FG2256-61RGB NXD-1700VG RGB KIT, 17" MODERO WALLMOUNT RGB KIT
FG2257-61RGB NXT-1700VG RGB KIT, 17" MODERO TABLETOP RGB KIT
FG2255-11 NXA-RGBKIT, RGB UPGRADE KIT FOR EXISTING VG PANELS
NXA-MTC/RGB

Wiring and Connection Information

FIG. 2 shows a top view of the finished cable.
3
2
1
4
To Touch Panel
Connector 1 - used for Audio/Video (Black)
Connector 2 - used for Ethernet (White)
FIG. 2
The following table provides the wiring information for each of the four (4)
available connectors on each side of the NXA-MTC/RGB Tabletop Cable.
Wire Table
Wire
1
2
3
4
5
6
7
8

Installing the CAT5 Suppression Ferrite

Before connecting the RJ-45 cables to the Modero Touch Panel, install the
necessary number of CAT5 Suppression Ferrites (FIG. 3) to the RJ-45
Audio/Video cable. These ferrites come as part of the Installation Kits
mentioned in the adjacent Specification table.
No tools are required for this installation.
Release the latch to
open the plastic
enclosure.
FIG. 3
Note: All 1200V-Series and VG-Series panels require the installation of an
appropriate number of CAT5 Suppression Ferrites when they use an RJ-45
cable to feed an A/V signal from the NXA-AVB/RGB Breakout Box.
1. The CAT5 Suppression Ferrite is housed within a plastic enclosure
(shown in FIG. 3) with a latch release on one side. Pull to release the
latch and open the enclosure.
2. Grasp the Black RJ-45 Audio/Video cable being connected to the
panel. This end of the cable is longer than the other which connects to
the breakout box (6 inches vs 3 inches). Refer to FIG. 4 for more
detailed information.
Quick Start Guide
Combo Table Top Cable for VG-Series Panels
6 inches
Red
Finished NXA-MTC/RGB Table Top Cable - showing standard terminations
Connector 1 Connector 2
White/Orange White/Orange
Orange/White Orange/White
White/Green White/Green
Blue/White Blue/White
White/Blue White/Blue
Green/White Green/White
White/Brown White/Brown
Brown/White Brown/White
Insert the CAT5
cable and close
the enclosure.
Installing the CAT5 Suppression Ferrites on the Black A/V RJ-45 cable
3 inches
Red
3
2
1
4
To Breakout Box
Connector 3 - used for Power
Connector 4 - used for RGB (Blue)
Connector 3 Connector 4
Red White/Orange
Black Orange/White
- White/Green
- Blue/White
- White/Blue
- Green/White
- White/Brown
- Brown/White
Push down on the
enclosure until it
snaps closed.
