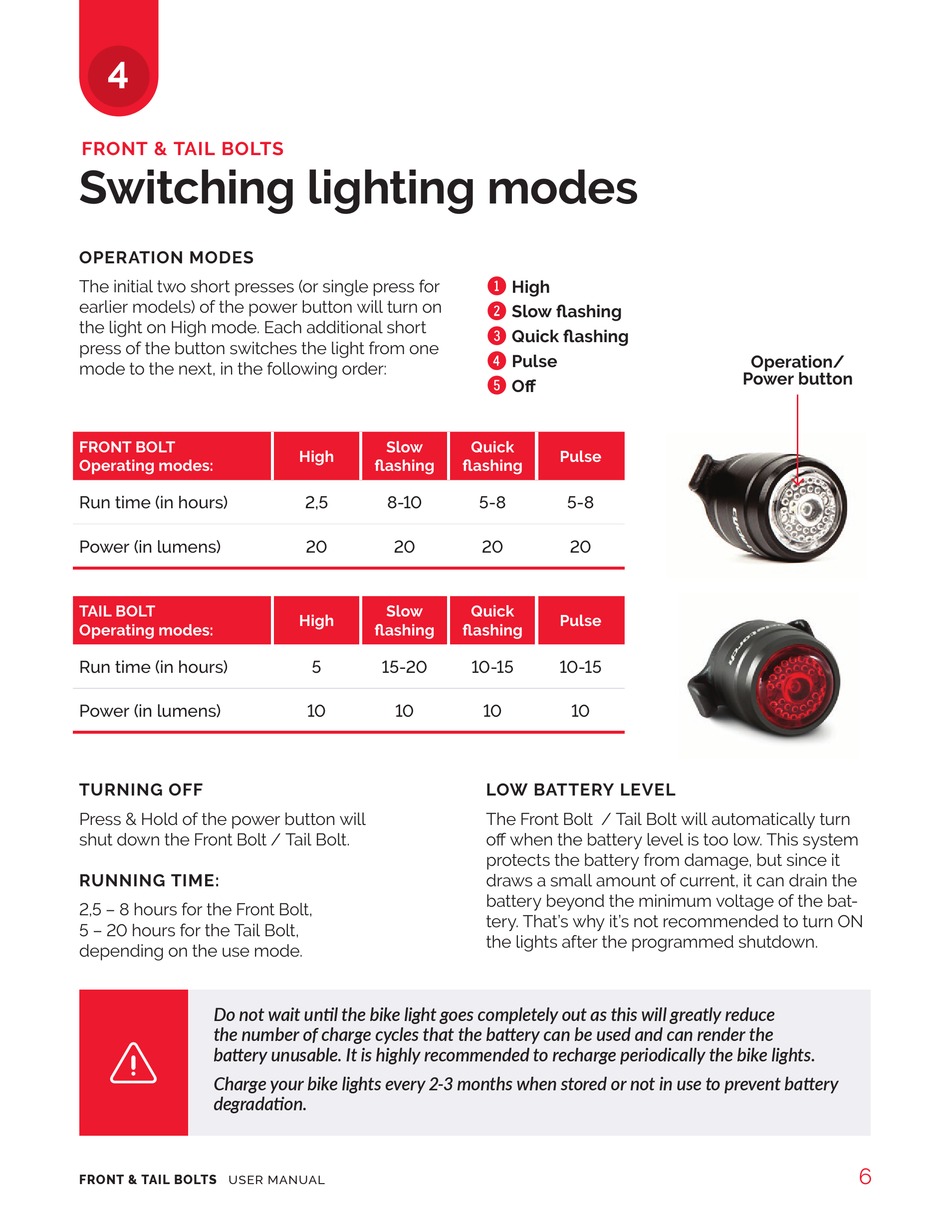

Switching Lighting Modes - Cycle Torch Bolt Combo User Manual

4
FRONT & TAIL BOLTS

Switching lighting modes

OPERATION MODES
The initial two short presses (or single press for
earlier models) of the power button will turn on
the light on High mode. Each additional short
press of the button switches the light from one
mode to the next, in the following order:
FRONT BOLT
Operating modes:
Run time (in hours)
Power (in lumens)
TAIL BOLT
Operating modes:
Run time (in hours)
Power (in lumens)
TURNING OFF
Press & Hold of the power button will
shut down the Front Bolt / Tail Bolt.
RUNNING TIME:
2,5 – 8 hours for the Front Bolt,
5 – 20 hours for the Tail Bolt,
depending on the use mode.
Do not wait until the bike light goes completely out as this will greatly reduce
the number of charge cycles that the battery can be used and can render the
battery unusable. It is highly recommended to recharge periodically the bike lights.
Charge your bike lights every 2-3 months when stored or not in use to prevent battery
degradation.
FRONT & TAIL BOLTS USER MANUAL
Slow Quick
High
flashing flashing
2,5 8-10
20 20
Slow Quick
High
flashing flashing
5 15-20 10-15
10 10
1 High
2
Slow flashing
3 Quick flashing
4 Pulse
5 Off
Pulse
5-8 5-8
20 20
Pulse
10-15
10 10
LOW BATTERY LEVEL
The Front Bolt / Tail Bolt will automatically turn
off when the battery level is too low. This system
protects the battery from damage, but since it
draws a small amount of current, it can drain the
battery beyond the minimum voltage of the bat-
tery. That's why it's not recommended to turn ON
the lights after the programmed shutdown.
Operation/
Power button
6
