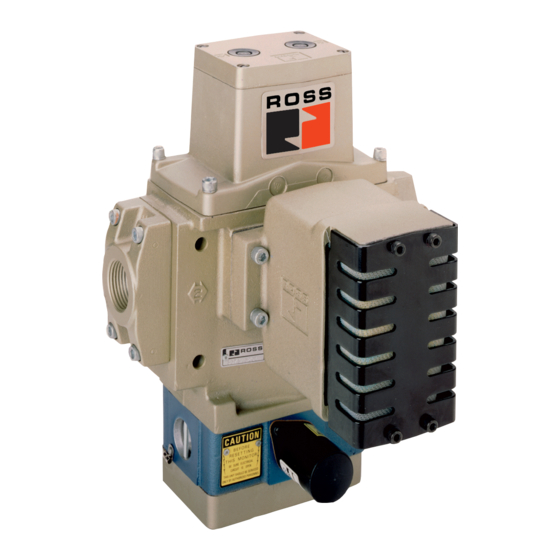

Ross Serpar 35 Series Product Information

Clutch / brake control double valves with l-g monitor
Hide thumbs Also See for Serpar 35 Series:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
P
I
roduct
nformatIon
c
/B
c
lutch
rake
ontrol
d
V
l-g m
ouBle
alVeS wIth
onItor
S
35 S
®
erPar
erieS
ROSS CONTROLS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Serpar 35 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ross Serpar 35 Series

Summary of Contents for Ross Serpar 35 Series

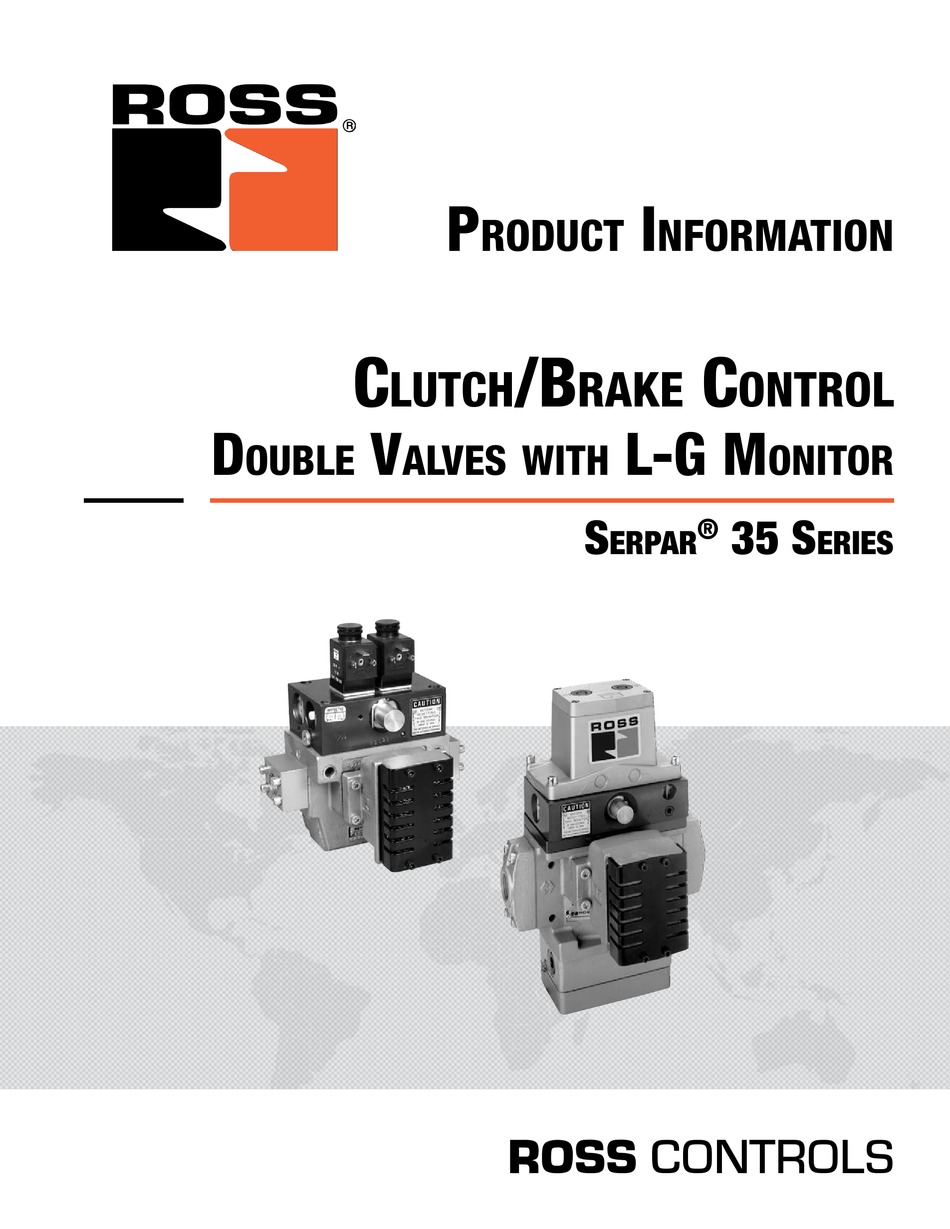

  • Page 1 35 S ® erPar erieS ROSS CONTROLS...
  • Page 2 15 0.65 0.35 8.3 (3.7) Remote 3573D5212W D3573D5212W 3573D5216W D3573D5216W 15 0.65 0.35 8.3 (3.7) Voltage: W=24 VDC; Z=110-120 VAC, 50/60 Hz, e.g., 3573D3191W. For other voltages consult ROSS. Valve Response Time The constants above, designated M and F, can be used to COIL...

  • Page 3: Valve Operation

    WARNING: If monitor must be reset, electrical signals to both solenoids must be removed to prevent the machine controlled by the valve from immediately recycling and producing a potentially hazardous condition. Online Version G2.4 © ROSS CONTROLS . All Rights Reserved. ® 04/05/19...
  • Page 4 3573A8162W D3573A8162W 3573A8182W D3573A8182W 0.18 0.07 37.5 (16.9) 2 inch port size available on size 30 valves. Order model number 1999H77 flange kit separately. Voltage: W=24 VDC; Z=110-120 VAC, 50/60 Hz, e.g., 3573A4142Z. For other voltages consult ROSS. Lockout Indicator Valve Response Time...
  • Page 5 WARNING: If monitor must be reset, electrical signals to both solenoids must be removed to prevent the machine controlled by the valve from immediately recycling and producing a potentially hazardous condition. Online Version G2.6 © ROSS CONTROLS . All Rights Reserved. ® 04/05/19...
  • Page 6 ROSS. information on the back cover). Order Placement For order placement, consult ROSS or your local ROSS distributor. For a current list of countries and local distributors, visit ROSS’ website at rosscontrols.com. Online Version © ROSS CONTROLS © ROSS CONTROLS .

  • Page 7: Standard Warranty

    ROSS’ obligation under this warranty is limited to repair or replacement of the product or refund of the purchase price paid solely at the discretion of ROSS and provided such product is returned to ROSS freight prepaid and upon examination by ROSS is found to be defective. This warranty becomes void in the event that product has been subject to misuse, misapplication, improper maintenance, modification or tampering.
  • Page 8 Other literature is available for engineering, maintenance, and service requirements. If you need products or specifications not shown in this catalog, please visit ROSS' website, contact ROSS or your ROSS distributor. The ROSS Support Team will be happy to assist you in selecting the best product for your application.

This manual is also suitable for:

Serpar 3573d3191wSerpar d3573d3191wSerpar 3573d3195wSerpar d3573d3195wSerpar 3573d3192wSerpar d3573d3192w ... Show all
