EEI –2230/2231

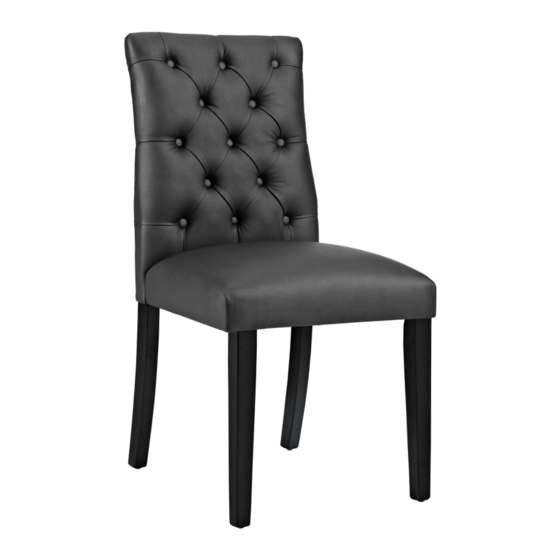

Thank you for purchasing the MODWAY CHAIR!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
1
Chair Back
x1
Customer Service 908-368-1025︱www.modwayfurniture.com
CHAIR
Hardware:
2
3
2
Seat Frame x1
A
B
C
D
E
F
1
3
Bolt M8x57mm
x 6
Bolt M8x90mm
x 4
Spring Washer M8
x 10
Flat Washer M8
x 10
Allen Wrench
x 1
Dowel ø10x40mm
x 1
3
Front Leg
x2
Page 1 of 3
Advertisement
Related Manuals for modway EEI-2230
Summary of Contents for modway EEI-2230
- Page 1 EEI –2230/2231 CHAIR Thank you for purchasing the MODWAY CHAIR! Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –2230/2231 CHAIR STEP 1: Please put Chair Back (1) upside down on a carpeted or padded area. Then open the Velcro on the bottom of Seat Frame (2), the inside of the Seat Frame(2) will now be visible. Attach Seat Frame (2) to Chair Back(1) by using 2 pieces of Bolt (A), 2 pieces of Spring Washer (B) and 2 pieces of Flat Washer (C) and 1 piece of Dowel (F) as shown.
- Page 3 EEI –2230/2231 CHAIR STEP 3: Insert 1 piece of Front Leg (3) into the bottom of Seat Frame (2) as shown. Attach by 2 pieces of Bolt (A), 2 pieces of Spring Washer (C) and 2 piece of Flat Washer (D) as shown. Repeat the same steps for Front Leg (3).
