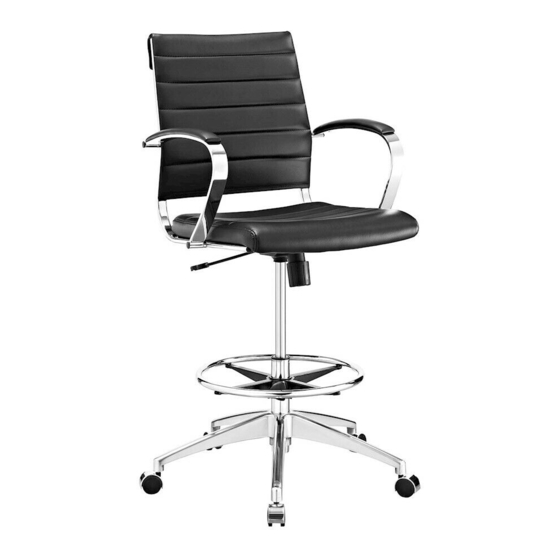

EEI –2236 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
1
Base x1
5 Back with Control Mechanism x1
Customer Service 908-368-1025︱www.modwayfurniture.com
6
3
4
2 Cylinder Column x1
6 Arm x2
Hardware:
A.
B.
C.
D.
5
6
2
1
4
3 Foot Ring x1
Bolt M8x50mm
Crash Pad
Cap Cover
Allen Wrench
4
4 Castor x5
x 4
x 4
x4
x1
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for modway EEI-2236
Summary of Contents for modway EEI-2236
- Page 1 EEI –2236 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –2236 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (4) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (4). STEP 2: Carefully turn over the assembled Base (1) from step 1.
- Page 3 EEI –2236 Office Chair STEP 3: Insert the Foot Ring (3) into the assembled Cylinder Column (2) at your desired height. But at least one inch from the top of the outer circle of Cylinder Column (2) as shown. Please follow the shown direction of the arrow to tighten the knob by hand on the Foot Ring (3) until the Foot Ring (3) is fixed.
- Page 4 EEI –2236 Office Chair STEP 5: Repeat the same steps for another Arm (6). Tighten Bolts (A) by using Allen Wrench (D) as shown. Hardware & Tools required STEP 6: Insert Back with Control Mechanism (5) into the Cylinder Column (2) as shown. Customer Service 908-368-1025︱www.modwayfurniture.com Page 4 of 5...
- Page 5 EEI –2236 Office Chair STEP 7: Assembly is complete. Your office chair is ready to be used now! Attention: When you use the handle to adjust the height to be lower, please move away your legs from the foot ring at the same time.
