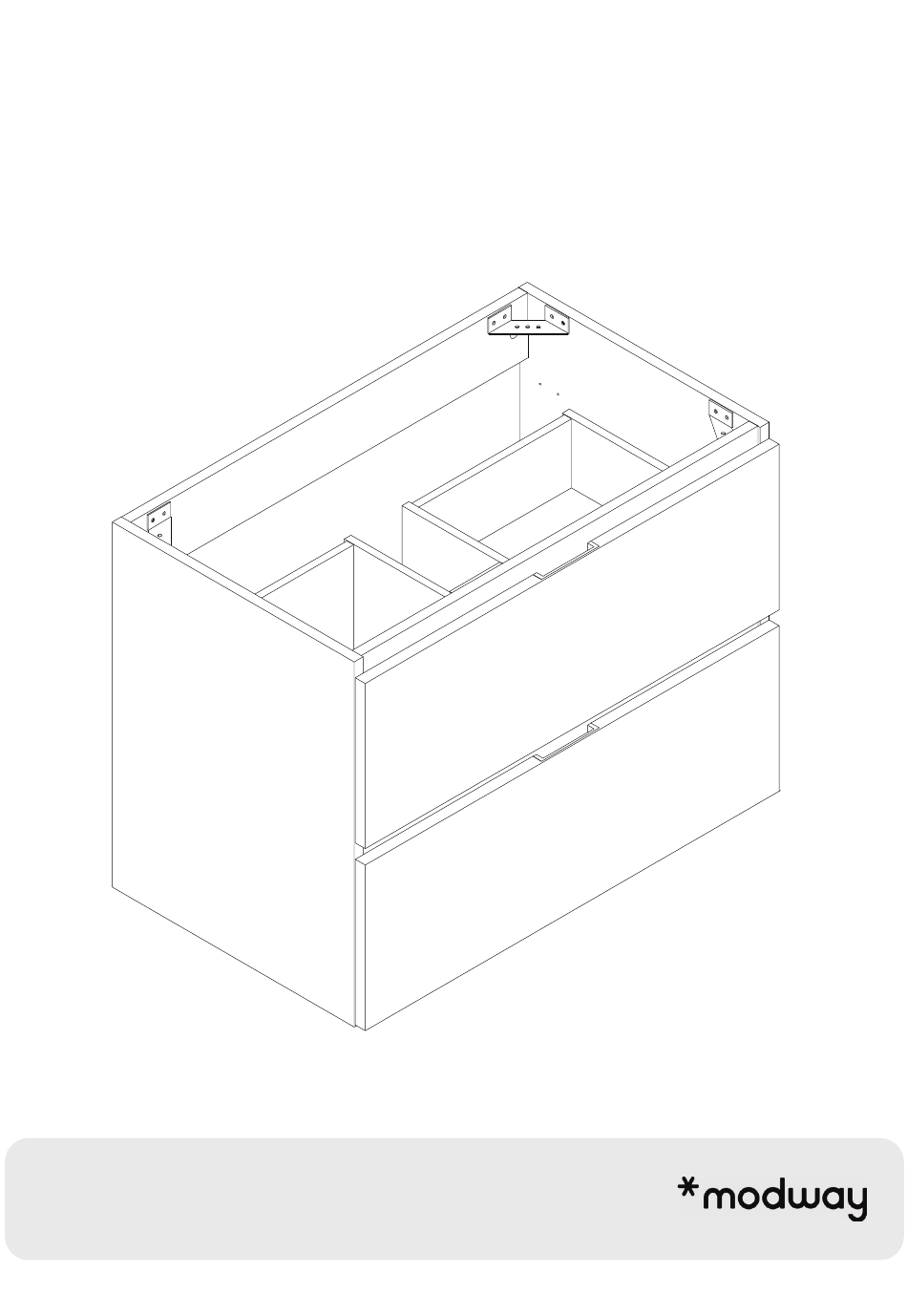

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−5880 V1.01.24.22 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com 780−331MD1−0...
-
Page 2: What You Need
+ Other Wall-Mounting Hardware Screw 4 x 28mm Screw 4 x 14mm Bearing Runner Corner Bracket x1 Pair 350mm Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 13 780−331MD2−0... - Page 3 Wood Dowel M8 x 25mm Wood Dowel M6 x 25mm 6 x 2 Back Panel 1 Drawer Support Bottom Cam Bolt Ø6 x 24mm Front Front Bottom PAGE 3 OF 13 780−331MD3−0...
- Page 4 Front Front Bearing Runner 350mm x1 Pair Bearing Runner 300mm x1 Pair Screw 4 x 12mm Right Side Panel Spring clip Screw 9 x 38mm Cam Lock Ø12 PAGE 4 OF 13 780−331MD4-0...
- Page 5 Screw 9 x 38mm Cam Lock Ø12 PAGE 5 OF 13 780−331MD5-0...
- Page 6 Screw 9 x 38mm Drawer Panel 3 Front Front Bearing Runner 350mm x1 Pair Bearing Runner 300mm x1 Pair Screw 4 x 12mm Drawer Side R 1 PAGE 6 OF 13 780−331MD6-0...
- Page 7 Cam Lock Ø15 Bottom Panel Cam Lock Ø15 PAGE 7 OF 13 780−331MD7-0...
- Page 8 Screw 4 x 14mm Corner Bracket Right Side Panel Back Panel 1 Front Rail Bracket-L/Hanger Bracket-R/Hanger Screw 4 x 28mm PAGE 8 OF 13 780−331MD8-0...
- Page 9 Wall Bracket Installation Guide WALL WALL 15.1 Use a drill to make all pilot holes. 15.2 Insert a Drywall Anchor Measurement Guide into each of the nine holes. All units are in millimeters. WALL 15.3 Install bracket with 3 screws. 15.4 Ensure your bracket measurements are correct Repeat with other brackets.
- Page 10 NOTE: Mounting hardware and tools are not included. We suggest professional installation. Hole = Ø PAGE 10 OF 13 780−331MDA-0...
- Page 11 Rubber Pad The drawer(s) can be removed, if ever required. Locate the spring clip on both sides on the drawer glide. At the same time, press the clips and pull the drawer out. To reinsert, simply align the 2 sides of the drawer glides and slide in until fully inserted.
- Page 12 Your sink basin comes complete with a silver overfl ow ring. If you'd like to remove this overfl ow ring, you can do so by hand. Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 12 OF 13 780−331MDC−0...
- Page 13 Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 13 OF 13 780−331MDD−0...
