FB2100/FB2200 Flow Computer Internal Solar Regulator Field Replacement Guide
D301848X012
November 2020
FB2100/FB2200 Flow Computer
Internal Solar Regulator
Field Replacement Guide
For Part Numbers (Kits):
399296-01-0: Internal Solar Regulator
Remote Automation Solutions

Advertisement

loading

  Related Manuals for Emerson FB2100

  Summary of Contents for Emerson FB2100

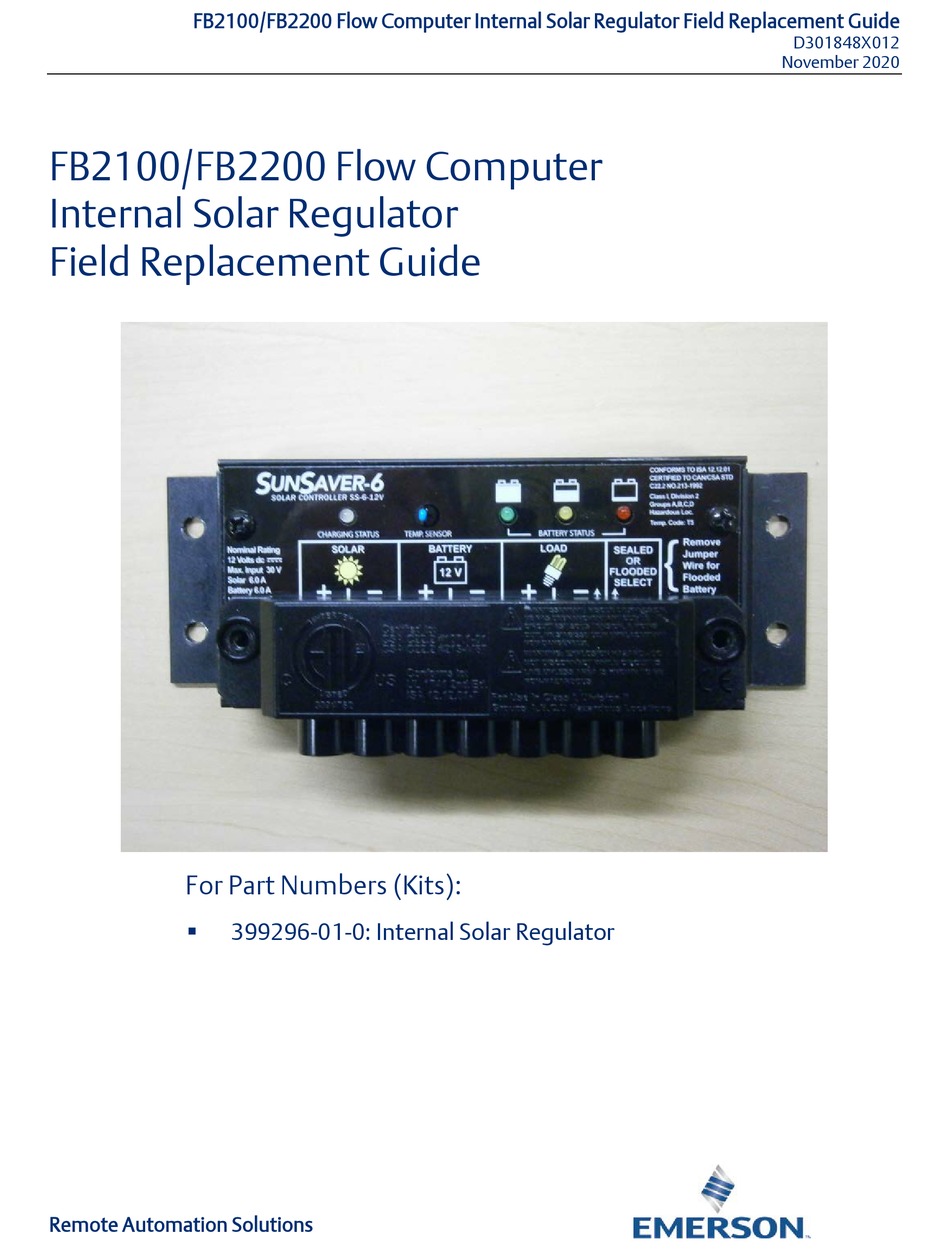

  • Page 1 FB2100/FB2200 Flow Computer Internal Solar Regulator Field Replacement Guide D301848X012 November 2020 FB2100/FB2200 Flow Computer Internal Solar Regulator Field Replacement Guide For Part Numbers (Kits): 399296-01-0: Internal Solar Regulator  Remote Automation Solutions...
  • Page 2: Device Safety Considerations

    Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com.
  • Page 3 UL Kit File Number: E192567 Important Use only accessories (batteries) supplied with the flow computer or sold by Emerson as spare parts for this flow computer. Substituting a part you obtain elsewhere (such as a battery) voids your approval certification.
  • Page 4 FB2100/FB2200 Flow Computer Internal Solar Regulator Field Replacement Guide D301848X012 November 2020 Important This procedure involves removing several screws. We recommend you provide a container to catch and hold screws when you remove them. Removing/Replacing the Internal Solar Regulator Open the flow computer enclosure. The solar regulator mounts inside the battery compartment.
  • Page 5 FB2100/FB2200 Flow Computer Internal Solar Regulator Field Replacement Guide D301848X012 November 2020 Now remove the four screws that attach the solar regulator to the battery compartment. These are located at the left side of the battery compartment, and on the exterior right side of the battery compartment.
  • Page 6 FB2100/FB2200 Flow Computer Internal Solar Regulator Field Replacement Guide D301848X012 November 2020 You should now be able to pull regulator out of the battery compartment and set it aside. Take the new (replacement) solar regulator, and if present, remove its termination cover.
  • Page 7 FB2100/FB2200 Flow Computer Internal Solar Regulator Field Replacement Guide D301848X012 November 2020 Wiring the Internal Solar Regulator...
