AMX Axcent3 pro Specifications page 2

axcent3 and axcent3 pro integrated controllers
AXCENT3 INTEGRATED AXCESS
CONTROLLER
AXCENT3 PRO INTEGRATED AXCESS
CONTROLFRAME
Provides versatile, multiport control:
• 6 data ports for RS-232/422/485 control,
with XON/XOFF and CTS/RTS,
user-definable baud rates (300, 600,
1200, 2400, 4800, 9600, 19200, 38400).
• 6 IR/Serial ports for control of up to 1.14
MHz and 1-way data, user-definable
baud rates (300, 600, 1200, 2400, 4800,
9600, 19200, 38400).
• 6-channel I/O port for closure, 0-5 VDC
voltage sensing, or interactive power
sensing for IR ports
• 8-channel Relay port
OTHER FEATURES
• Converts from Master (default) to Server
operation, allowing the use of multiple
units in the same system
• Supports graphical setup, status, and
testing through the use of AMX
OpenAxcess software
• Allows PC-based local or modem setup,
status, and testing with optional
Windows or Terminal Emulator software
• Includes status LEDs for AXlink bus
operation, RS-232, Relay, IR/Serial, and
I/O control activity
• The Axcent3 PRO accepts up to four
slide-in Axcess Control Cards
POWER CONSUMPTION
• Axcent3: 500 mA @ 12 VDC
• Axcent3 PRO: 550 mA @ 12 VDC
DIMENSIONS (HWD)
• Axcent3: 3.47" x 17.00" x 3.00"
(8.81 cm x 43.18 cm x 7.62 cm)
• Axcent3 PRO: 3.47" x 17.00" x 13.65
(8.81 cm x 43.18 cm x 34.68 cm)
(431.8MM)
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
30 0 0 RE SE ARCH D RIV E , R ICHAR DSON , TX 75 08 2 • 8 00 . 2 2 2 . 0 1 9 3 • 4 6 9 . 6 2 4 . 8 0 0 0 • +1 . 4 6 9 . 6 2 4 .7 4 0 0 • 4 6 9 . 6 2 4 . 7 1 5 3 fa x • w w w. am x. c om
WEIGHT
• Axcent3: 2.5 lbs. (1.1 kg)
• Axcent3 PRO: 5.6 lbs. (2.6 kg) without
Axcess Control Cards
FRONT PANEL
PROGRAM port:
• DB-9 (male) connector for system
programming
Status indicators:
• 32 (red) LEDs showing port activity
• RS-232/422/485 - 6 receive LEDS and 6
transmit LEDs
• Relay - 8 LEDs
• IR/Serial/Data - 6 LEDs
• I/O - 6 LEDs
Axlink indicator:
• Green LED shows AXlink data activity.
Slots 1-4:
• 4 Axcess Controls Cards (only available
on the Axcent3 PRO)
RS-232 RANGE
• 50' (15.24 m) max
ENCLOSURE
• Metal with black matte finish
REAR PANEL
RS-232/RS-422/RS-485 ports:
• Six 9-pin (male) D-Sub, RS-232/422/485
XON/XOFF, CTS/RTS, 300, 200 baud
Status indicators
• 32 (red) LEDs show activity on the RS-
232/422/485, Relay, IR/Serial/Data, and
I/O ports
• The LEDs light when data activity occurs
on the respective ports
AXlink/PWR connector:
• Four-pin connector for AXlink data and
power and a two-pin connector for
external 12 VDC power supply

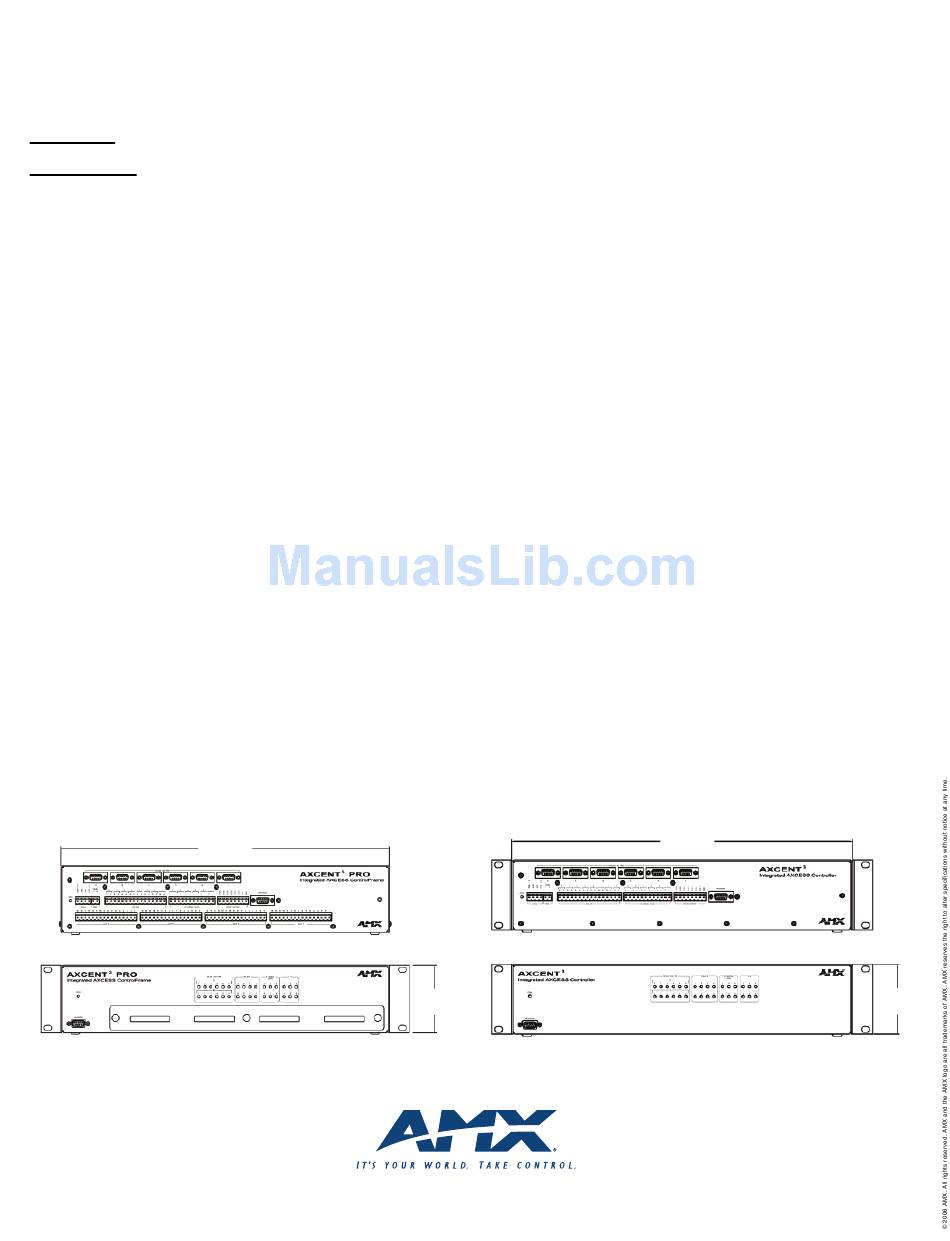

17.0
3.47
(88.1MM)
Relay connectors 1-8:
• Two 8-pin connectors, 750 mA, 28
VAC/24 VDC (normally open)
IR/Serial/Data connectors 1-6:
• 12-pin connector (six 2-pin jacks), IR, IR
Serial or one-way data communication
(0-5 VDC levels only)
Input/Output connectors:
• 8-pin connector, I/O 1-6, Common, +12
VDC power tap 200 mA, contact closure
or TTL logic inputs
PROGRAM port:
• DB-9 (male) connector for system
programming and diagnostics
Slots 1-4: : ( ( o o n n l l y y a a v v a a i i l l a a b b l l e e o o n n A A x x c c e e n n t t 3 3 P P R R O O ) )
• Four 16-pin connectors for Axcess
Controls Cards
INCLUDES
• 4 CC-IRC emitters
• Metal tab strip for commoning relays
• Rack-mount brackets
OPTIONAL ACCESSORIES
• 12 VDC power supply (uses PS2.8 but
can use PSN6.5)
• CSB Cable Support Bracket
• AC-RK3 Rack Kit
• Axcess Control Cards
( ( A A x x c c e e n n t t 3 3 P P R R O O o o n n l l y y ) )
17.0
(431.8MM)
3.47
(88.1MM)
