Dorel DA7319-6BL Instruction Manual

Miles desk chest

Advertisement

Quick Links

INSTRUCTION MANUAL
Model No:
DA7319-6BL (BLUE)
MILES
DA7319-6W (WHITE)
DESK CHEST
UPC CODE:
0-65857-17354-3 (BLUE)
0-65857-17355-0 (WHITE)
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
______________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
NEED HELP!
CALL US FOR ASSIS
Tel #: 1-800-295-1980
1-800-295-1980
E-Mail: das@dorel.com
Fax #: 514-353-7819
DO NOT RETURN P
E-MAIL:DAS@DOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA7319-6BL and is the answer not in the manual?

Questions and answers

Summary of Contents for Dorel DA7319-6BL

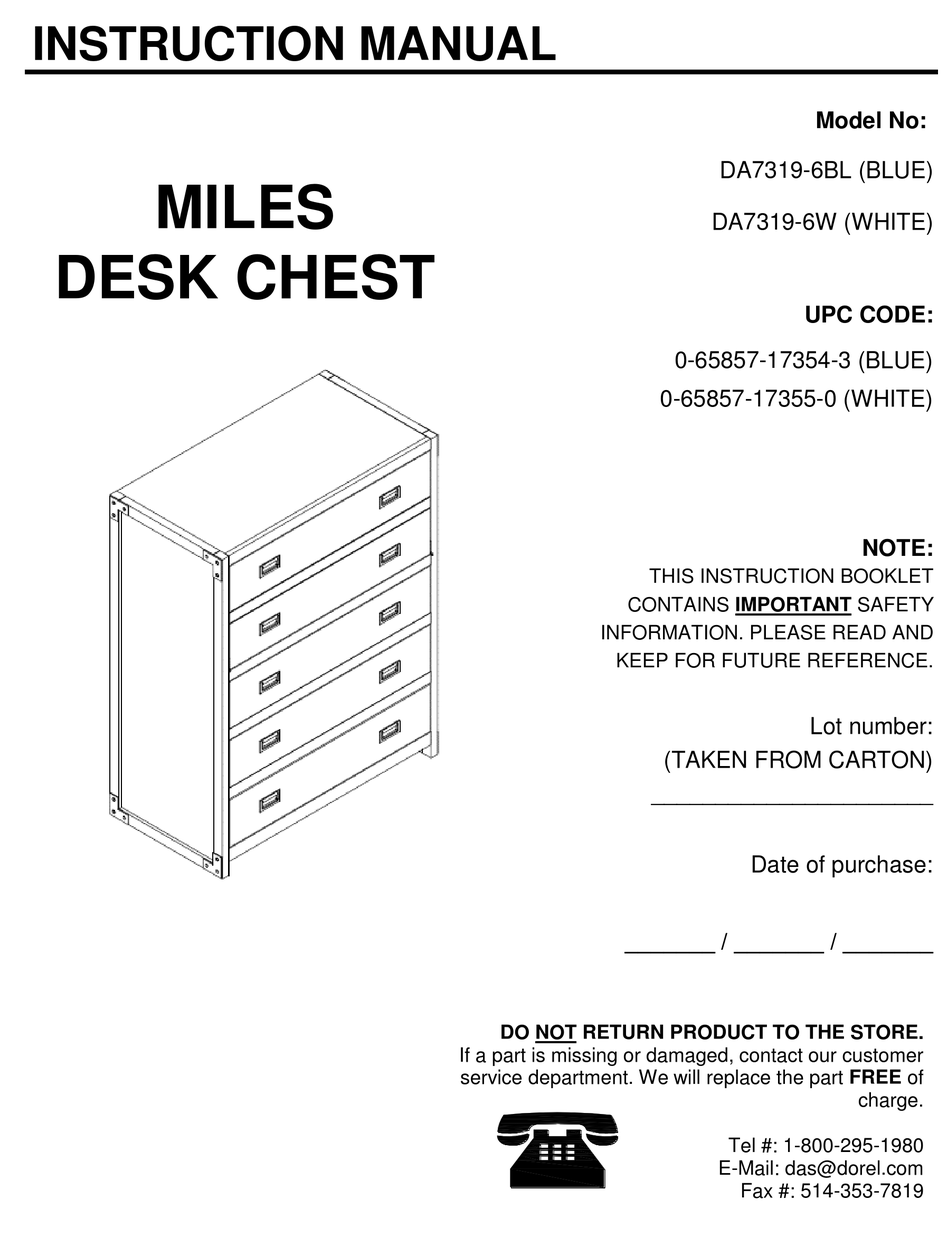

  • Page 1 INSTRUCTION MANUAL Model No: DA7319-6BL (BLUE) MILES DA7319-6W (WHITE) DESK CHEST UPC CODE: 0-65857-17354-3 (BLUE) 0-65857-17355-0 (WHITE) NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ______________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
  • Page 2 Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase.
  • Page 3 Miles Desk Chest DA7319-6BL / DA7319-6W HARDWARE LIST Ø8 X 30mm LARGE CAM BOLT LARGE WOOD DOWEL LARGE CAM LOCK 28 PCS 26 PCS 28 PCS Ø3 X 15mm Ø4 X 25mm ROUND HEAD SCREW MAGNETIC CONNECTOR LARGE SCREW 8 PCS...
  • Page 4: Hardware List

    Miles Desk Chest DA7319-6BL / DA7319-6W HARDWARE LIST Ø3 X 15mm SMALL SCREW LEFT HINGE RIGHT HINGE 12 PCS 1 PC 1 PC Ø3/16 X 15mm SMALL BOLT SAFETY STRAP 4 PCS 1 KIT...
  • Page 5: Parts List

    Miles Desk Chest DA7319-6BL / DA7319-6W PARTS LIST TOP PANEL MIDDLE SHELF BACK TOP RAIL TOP SMALL SHELF 1 PC 1 PC 1 PC 1 PC DIVIDER LEFT SIDE PANEL RIGHT SIDE PANEL FRONT MIDDLE RAIL 1 PC 1 PC...
  • Page 6 Miles Desk Chest DA7319-6BL / DA7319-6W PARTS LIST DRAWER BOTTOM RAIL DRAWER BACK WRITING SHELF 3 PCS 3 PCS 1 PC...
  • Page 7 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 1 Insert large cam bolts (1) into the top panel (A) and middle shelf (B) as shown.
  • Page 8 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 2 Insert large wood dowels (2) into the top panel (A) as shown. Attach back top rail (C) to the top panel (A) with large screws (6) using a Phillips head screwdriver (not included).
  • Page 9 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 3 Insert top small shelf (D) into divider (E) as shown. Insert large wood dowels (2) and large cam locks (3) into divider (E) as shown. Attach the assembled unit to top panel (A) and middle shelf (B) and secure them by rotating the...
  • Page 10 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 4 Insert large cam bolts (1) into left and right side panels (F & G) as shown.
  • Page 11 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 5 Insert large wood dowels (2) into the left side panel (F) as shown. Insert large cam locks (3) into top panel (A), middle shelf (B), front middle rails (H), front bottom rail (I) and back bottom panel (J) as shown.
  • Page 12 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 6 Repeat step 5 to attach the right side panel (G) to the assembled unit. NOTE- The side panels (F & G) are equipped with adjustable levelers. Once assembly is complete and the unit is in the desired location, rotate the adjustable levelers clockwise or counterclockwise...
  • Page 13 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 7 Attach back top panel (K) and back middle panel (L) to the assembled unit using round head screws (7). Use a Phillips head screwdriver (not included) to tighten the screws.
  • Page 14 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 8 Insert small cam bolts (8) into the drawer front (M). Insert small wood dowels (9) and small cam locks (10) into the drawer left side (N) and drawer right side (O). Attach drawer sides (N & O) to the drawer front (M) and secure them by rotating small cam locks...
  • Page 15 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 9 Slide the drawer bottom (P) into the grooves of drawer sides (N & O) and drawer front (M). Attach drawer bottom rail (Q) to drawer front (M) as shown.
  • Page 16 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 10 Attach drawer back (R) to the drawer sides (N & O) and drawer bottom rail (Q) with large screws (6). Attach handles (12) to drawer front (M) with large bolts (11). Use a Phillips head screwdriver (not included) to tighten the screws (6) and bolts (11).
  • Page 17 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 11 Insert all drawers into the assembled unit.
  • Page 18 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 12 Attach the left and right metal brackets (14 & 15) to the side panels (F & G) using small screws (16). Use a Phillips head screwdriver (not included) to tighten the screws..
  • Page 19 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 13 Attach left and right hinges (17 & 18) to the side panels (F & G) using round head screws (4). Use a Phillips head screwdriver (not included) to tighten the screws.
  • Page 20 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 14 Attach handles (12) to writing shelf (S) with large bolts (11). Use a Phillips head screwdriver (not included) to tighten the bolts. Attach the stickers (13) to the flip down panel as shown to cover the bolts.
  • Page 21 Miles Desk Chest DA7319-6BL / DA7319-6W STEP 15 Attach the writing shelf (S) to the left and right hinges (14 & 15 & 17 & 18) using small screws (16) and small bolts (19) as shown. Use a Phillips head screwdriver (not included) to tighten the screws.
  • Page 22 Miles Desk Chest DA7319-6BL / DA7319-6W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
  • Page 23: Customer Service

    MODEL #: DA7319-6BL / DA7319-6W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
  • Page 24 Furniture Wall Safety Strap MOUNTING BRACKET SAFETY WALL STRAP LONG SCREW SHORT SCREW 4 PCS 2 PCS 2 PCS 2 PCS TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED. NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED. WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE FURNITURE MAY TIP OVER.
