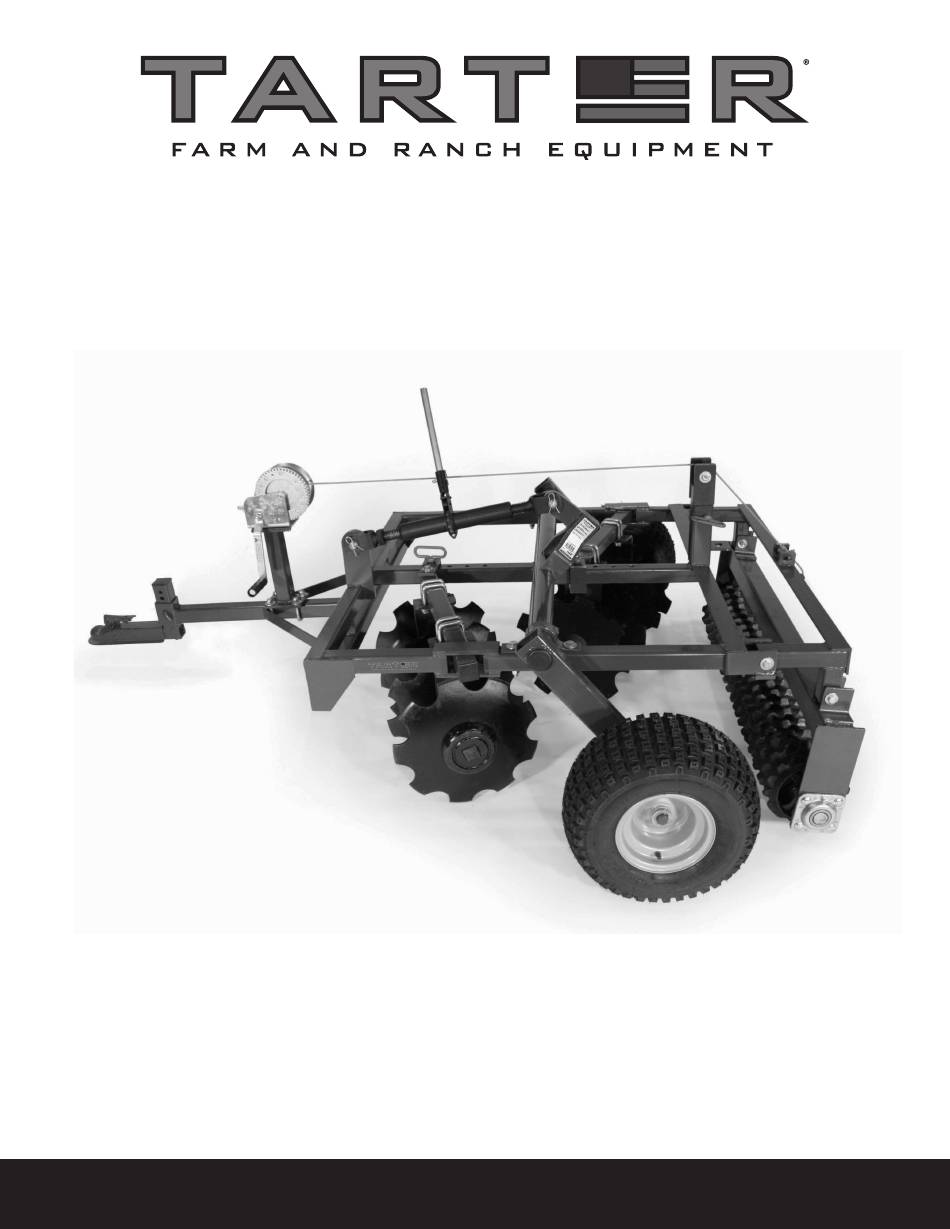

- Page 1 ATV DISC/CULTIPACKER COMBO OPERATION AND ASSEMBLY MANUAL ATVCPDC, ATVTD8 For more information and questions, please contact: Tarter Customer Service 1-800-RED-GATE (1-800-733-4283) Tarter products are sold through Authorized Retailers. T A R T E R U S A . C O M...
- Page 2 Lubricate the unit as specified. Please observe all safety information in this manual and safety decals on the equipment. Use only genuine Tarter service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation.
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S TABLE OF CONTENTS Safety......................................4 Description...................................8 Safety Description and Decals...........................9 Assembly/Attaching..............................10 Transportation/Operation............................11 Detaching/Storage/Maintenance...........................12 Product Specifications..............................13 Parts..................................... 14 Warranty....................................15 Notes....................................17... -
Page 4: Safety
S A F E T Y Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by an operator’s single careless act. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment. - Page 5 (Replacement manuals and safety decals Always comply with all state and local lighting and are available from Tarter Farm and Ranch marking requirements. Equipment) Failure to follow instructions or safety rules can result in serious injury or death.
- Page 6 S A F E T Y influence of alcohol or drugs. from dropping, or mechanical component failures. Keep hands, feet, hair, and clothing away from Periodically tighten all bolts, nuts and screws and equipment while operating. Stay clear of all moving check that all pins are properly installed to ensure parts.
- Page 7 S A F E T Y (Safety Rules continued from previous page) are dependent upon the awareness, concern, prudence, and proper training of personnel area. involved in the operation, transport, maintenance, Follow manual instructions for storage. and storage of the machine. Refer also to safety messages and operation instruction in each Always use a power unit to position equipment of the appropriate sections of the tractor and...
-
Page 8: Description

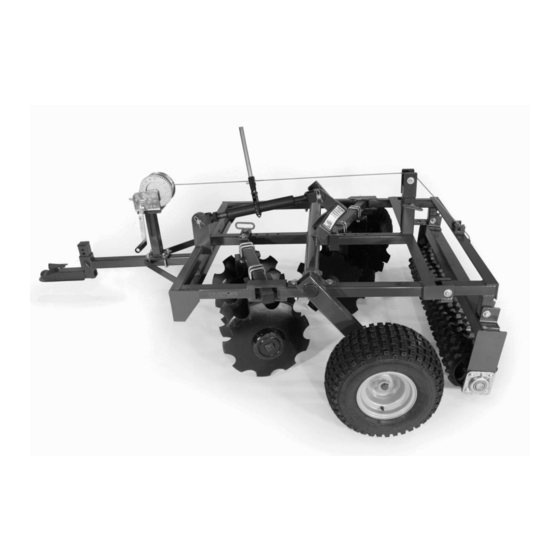

D E S C R I P T I O N GENERAL DESCRIPTION Tarter’s Disc/Culti-Packer Combo is ideal for tilling soil to create game plots and gardens. This product is easily attached to ATVs, UTVs and small tractors. The combo combines deep cutting of the eight-blade tillage disc with soil preparation and compaction of the adjustable culti-packer. -
Page 9: Safety Description And Decals
S A F E T Y A N D I N S T R U C T I O N D E C A L S SAFETY and INSTRUCTIONAL DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately if Damaged! Item 2 Item 1 Item 3... -
Page 10: Assembly/Attaching
A S S E M B L Y / A T T A C H I N G ATTACHING ASSEMBLY 1. For the ATVCPDC, lower the culti-packer to 1. Place your ATV Disc on level ground for the ground, using the winch. -
Page 11: Transportation/Operation
T R A N S P O R T A T I O N / O P E R A T I O N OPERATION 2. Using the winch, please ensure the culti-packer is raised all the way up for EIGHT BLADE TILLAGE DISC transporting. -
Page 12: Detaching/Storage/Maintenance
Periodically grease all grease zerks. There is one located on each wheel/tire assembly, two on the ratchet jack and one on each end of the cultipacker (if you have the ATVCPDC). Keep pressure on the handle until the culti-packer is on the... -
Page 13: Product Specifications
P R O D U C T S P E C I F I C A T I O N S ATVCPDC ATVTD8 Weight 711 lbs. 430 lbs. Working Width 48" cutting width Overall Width 76" Overall Length 93" 61"... -
Page 14: Parts
P A R T S ATV Disc/Cultipacker Combo Parts List RT4LD *Please note ATVTD8 does not include items 2, 4, 6, 13 Item Part Number Description RJWP Ratchet Jack ATVHW Hand Winch WTADCP Wheel Tire Assembly ATVCW Cultipacker Wheels 2" Coupler Hitch Red Hed Pin HDDBA Sealed Bearing Assembly for disc axle( Not Shown) -
Page 15: Warranty
MANUFACTURER'S LIMITED WARRANTY Manufacturer warrants to the original purchaser that the purchased product is free from defects in material and workmanship for a period of one (1) year commencing on the date of original purchase, as evidenced by the original receipt, and will, at its option, repair, replace, or issue credit for any product or part found to be defective. - Page 16 WARRANTY DISCLAIMER: This limited warranty is in lieu of, and manufacturer disclaims and excludes any express and implied warranties with respect to the product including, without limitation, merchantability and fitness for a particular purpose. No other express warranty, whether written or oral, given by any person or entity, including a retailer, with respect to any product, shall bind manufacturer.
- Page 18 P.O. BOX 1 0 1 0739 S. HWY 1 27 D UN N VI LE , KY 4 252 8 1 -80 0 -R E D G AT E TART E RUSA .COM For more information about Proposition 65, please visit; https://www.p65warnings.ca.gov/ (REV 4) 10052020...
