STEP ONE
Cut all packing straps
with tin snips or knife.
Using a 9/16" wrench,
remove the two 6" bolts,
washers and lock nuts from
the leg assembly in
the center of the hay rack
and set aside for later.
Place leg racks and front
panel outside hay rack.
STEP TWO
Place front panel
near the open area
of hay rack and
remove the clevis
pins from both
sides of panel.
STEP FOUR
Align the opposite
side of front panel
with the upper and
lower sleeves and
slide into place.
Replace clevis pins
into upper and lower
holes on both sides
of the front panel and
lock into position.

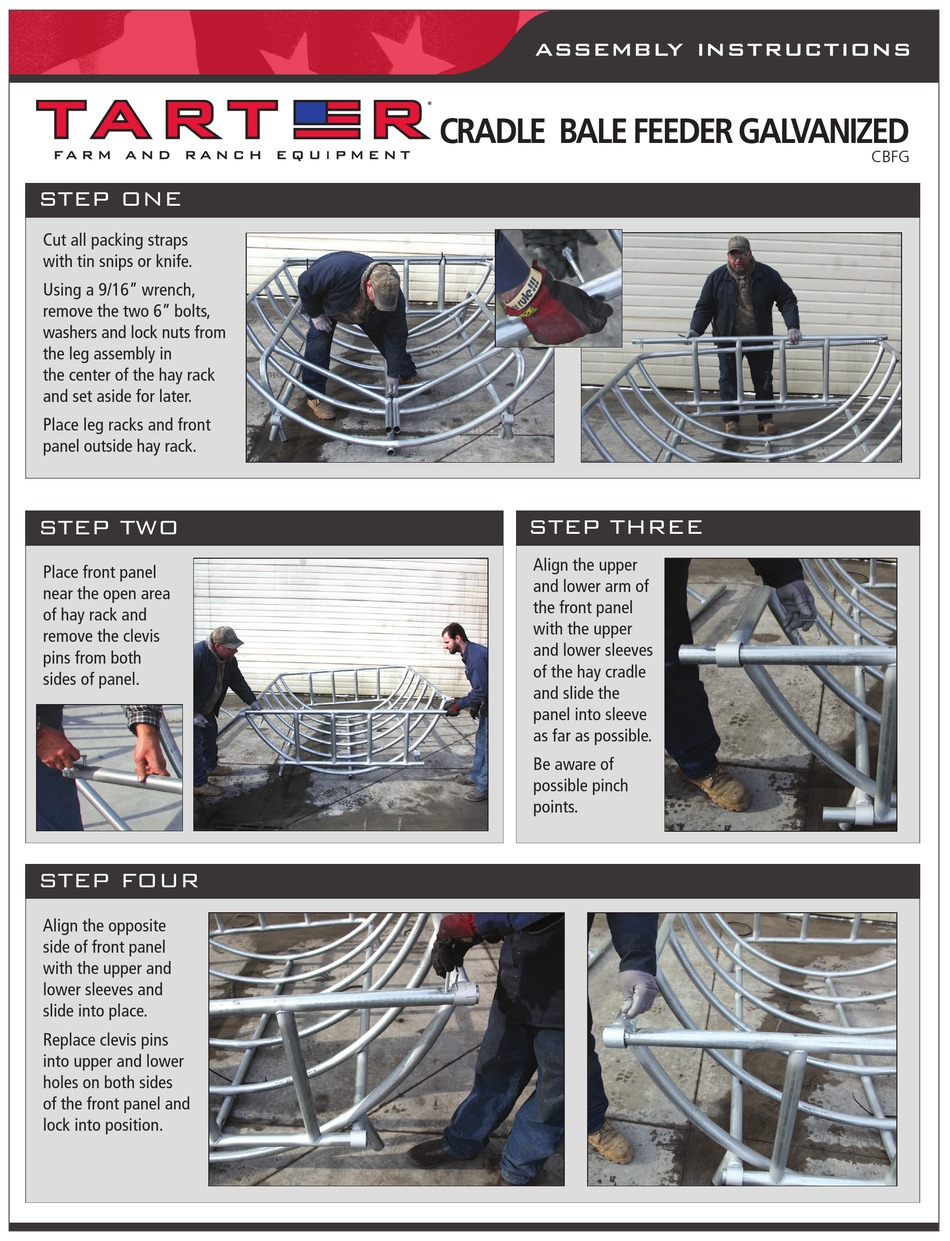

assembly instructions

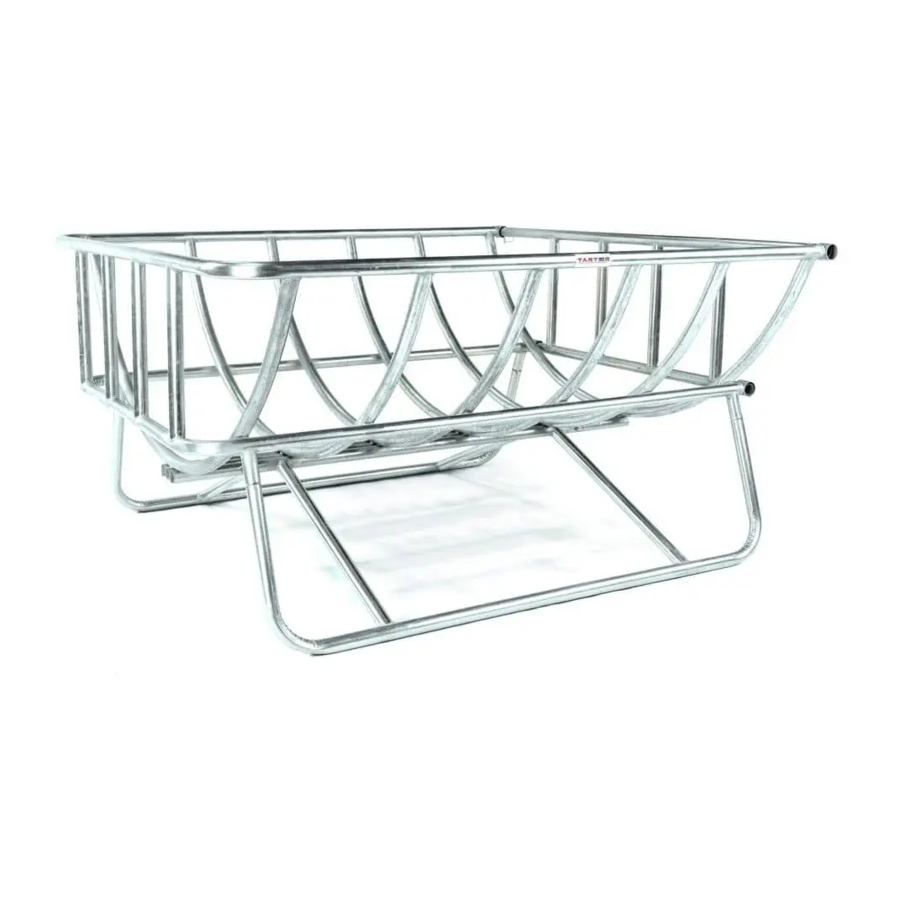

CRADLE BALE FEEDER GALVANIZED
STEP THREE
Align the upper
and lower arm of
the front panel
with the upper
and lower sleeves
of the hay cradle
and slide the
panel into sleeve
as far as possible.
Be aware of
possible pinch
points.
CBFG
Advertisement
Related Manuals for Tarter CBFG
Summary of Contents for Tarter CBFG
- Page 1 CRADLE BALE FEEDER GALVANIZED CBFG STEP ONE Cut all packing straps with tin snips or knife. Using a 9/16” wrench, remove the two 6” bolts, washers and lock nuts from the leg assembly in the center of the hay rack and set aside for later.
- Page 2 STEP FIVE STEP SIX Turn hay cradle frame upside down Take leg frame and and place flat on the ground. slide left and right arms into sleeves on the bottom of frame. Be aware of possible pinch points. Apply pressure to leg frame to seat arms firmly into sleeves.
